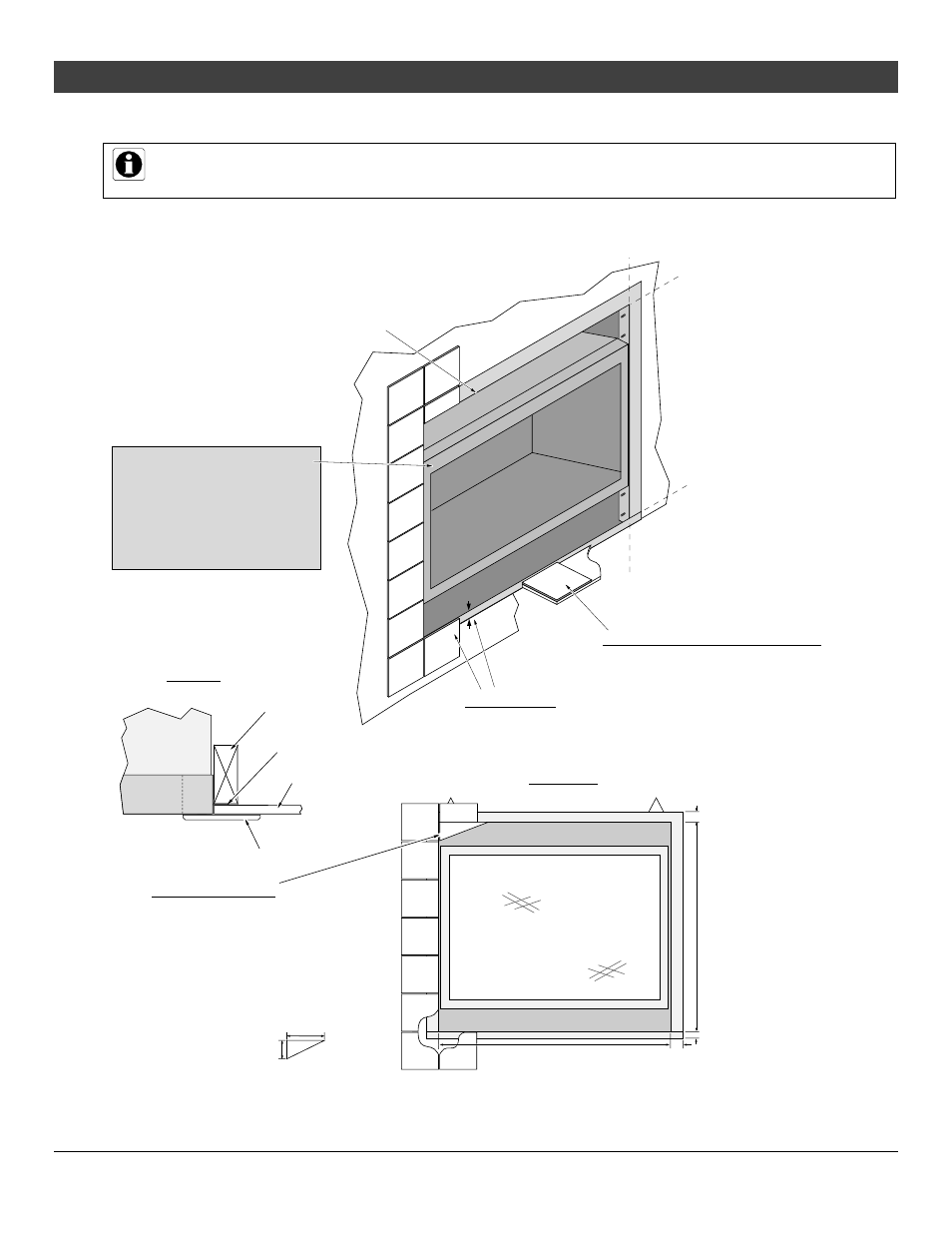

Thin Facing Installation (tile, marble, or other non-combustible under 1" (25mm) thick)
Upgrade faces are available for this fireplace and may influence facing installation. Consult with your
Travis Dealer if you are using an upgrade face.
Do not install tile (or other material)
in front of the glass frame,
convection channel, or access panel
openings. This area must remain
open to access internal components
and for convection air.
Raised Fireplaces:
Facing is installed 1" maximum
(25mm) above the base of the
fireplace.
Facing is installed to this
edge of the fireplace.
FRONT VIEW
Tile Line
Tile Line
Hearth Line
Tile Line
27-3/4"
705mm
1”
1-7/8"
48mm
32-3/4"
832mm
1-1/2"
38mm
NOTE FOR FPX FACES:
FPX arched faces require the FPX Face Upgrade
Kit (sku 98500683) and a triangular piece of
facing in these upper corners. See the
instructions included with the face for further
details.
Fireplace
Drywall
Framing
Nailing Bracket
Tile
TOP VIEW
Drywall
Floor-Mounted Fireplaces or Raised Hearths:
Build the hearth 1" max (25mm) above the
base of the fireplace. The fireplace may be
raised to accommodate thicker hearth materials.
7-1/2" 191mm
1-5/8"
41mm
