User Manual
19

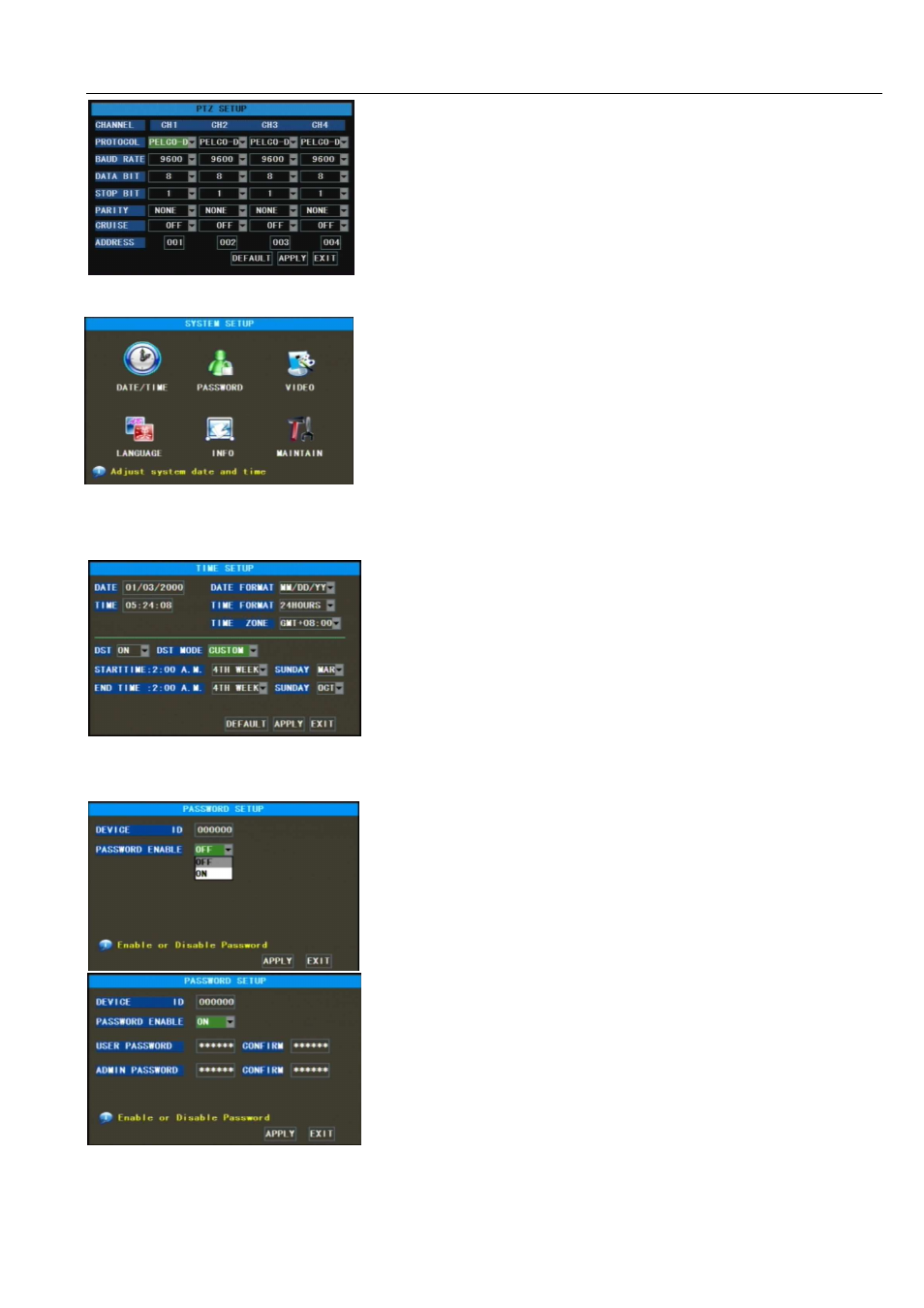

5.3.6 System Setup
5.3.6.1 Time Setup
In the [System Setup] screen, highlight and click [Date/Time] option to enter into the below window.
5.3.6.2 Password Setup
You can set Date/Time, User permission, Video, Language,
System info and System Maintenance.
1. You can check and setup current date/time and time
related properties, also modify system display time and
date/time display format and setup DST status and mode etc.
2. Click [APPLY] button to save and exit the above setting.
In the [System Setup] screen, highlight and click [Password] icon
to enter into [Password setup] interface.
1. Set [device ID] and [Password Enable] option;
2. Click [Apply] button to save and exit current setting.
When enabling password to [On] first time, you can set [User
Password] and [Admin Password] respectively.
Password is consist of numeric character 0~9 with a specific
length -6 bit.
Friendly Reminder: User only has a permission to access
[Video Search] menu. But Administrator has full authority over
Main Menu operations.
Enter into [Main menu Device PTZ Setup] to select the
channel you wish to control and set PTZ protocol (Pelco-D or Pelco-P),
Baud Rate fixed (9600), Data bit (8), Stop bit (1), Parity Check (None)
and Address Code respectively. Please make sure the above
mentioned channel settings must match with the settings of the PTZ
camera.
For PTZ camera connection method, please refer to Rear Panel
configuration.
Picture5-23
Picture5-25
Picture5-24
Picture5-26
Picture5-27
Picture5-23
