Installing Devices

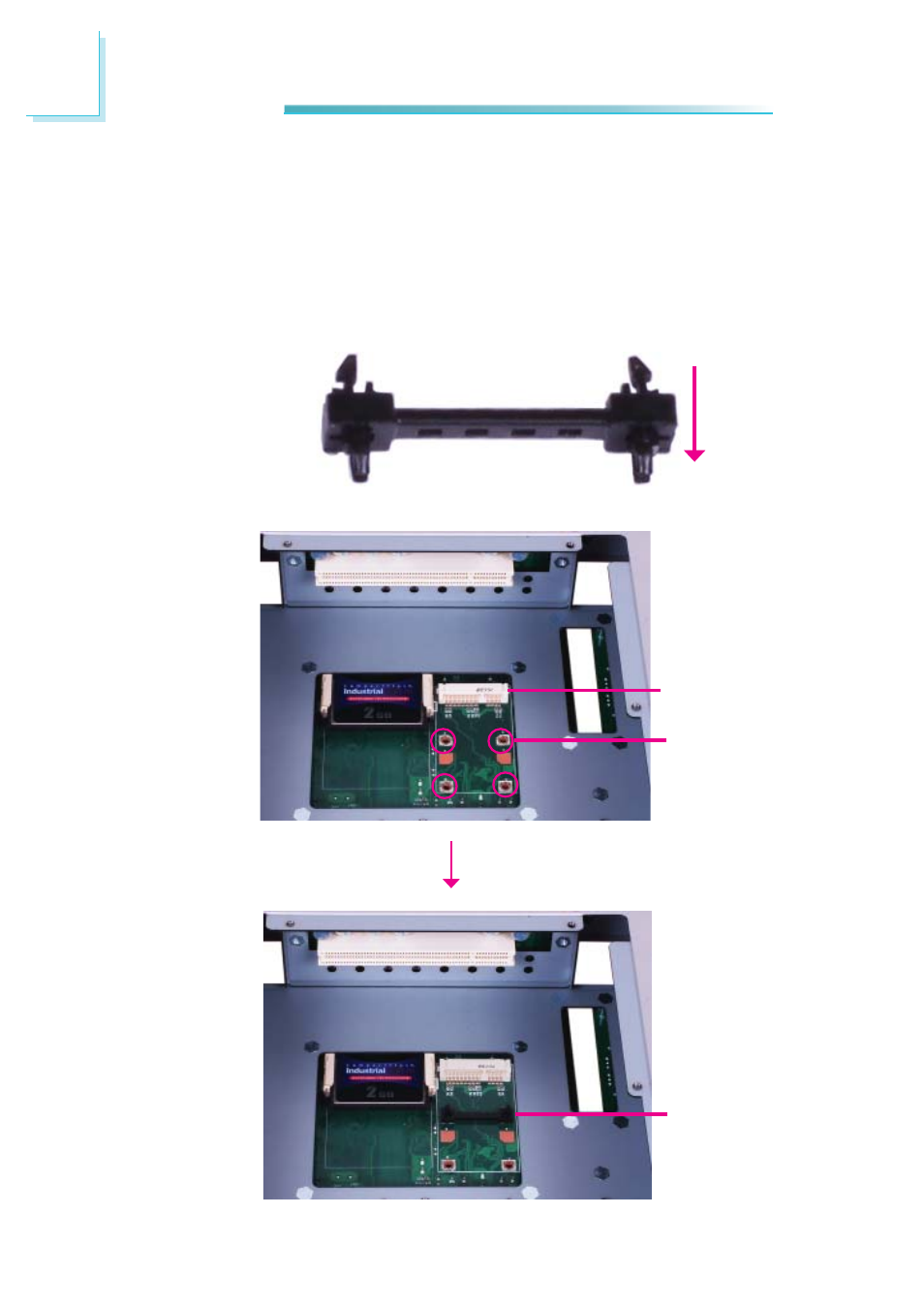

1. The latch is used to lock the Mini PCIe / mSATA card into position. Insert the
latch into the mounting holes and then push the latch down until the clips at
each end of the latch lock into position. You will hear a distinctive "click", in-
dicating the latch is correctly locked into position.
Mounting hole
Latch
Mini PCIe slot
Latch
Installing a Mini PCIe and/or mSATA Card
Latch
