Installing Devices

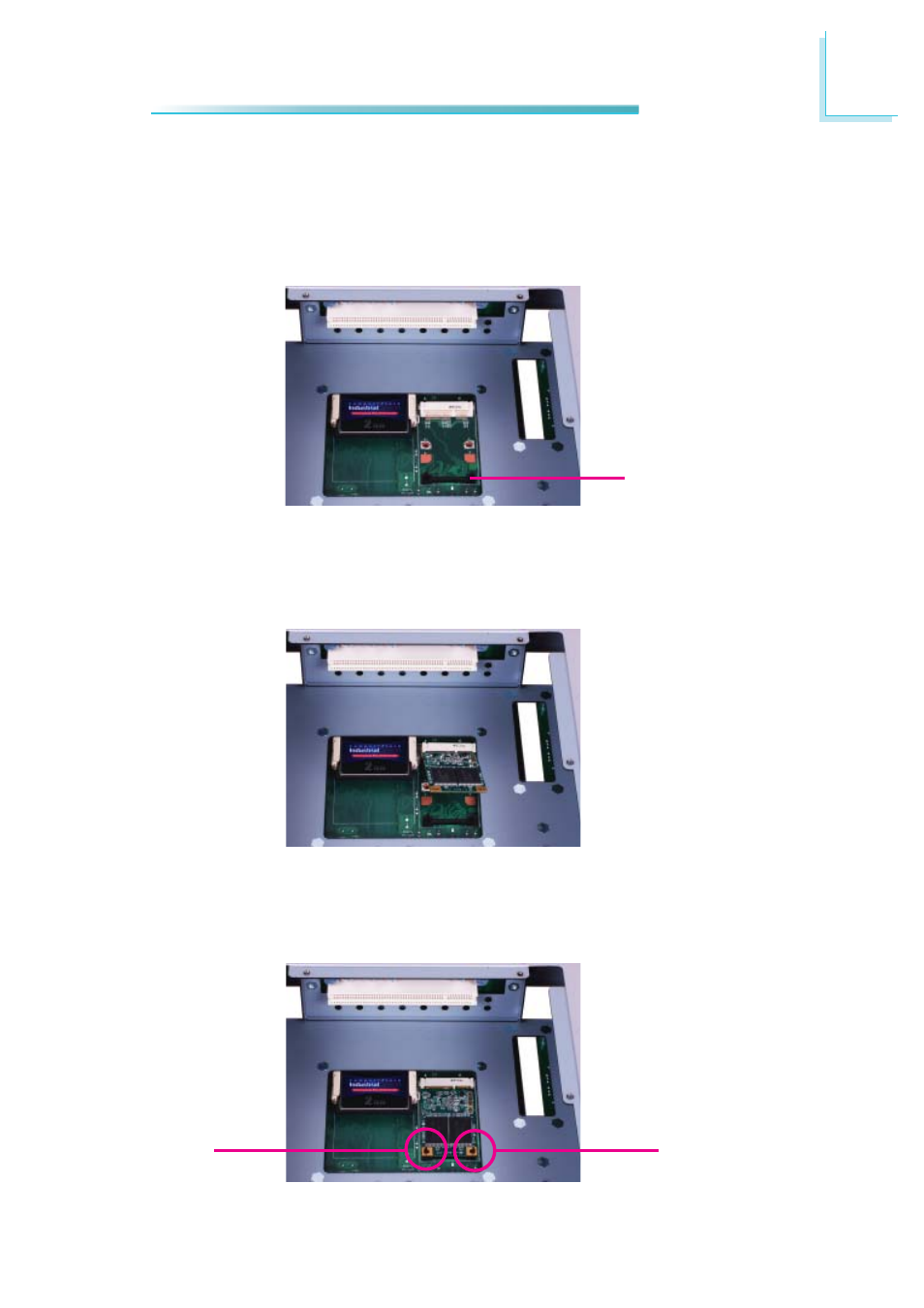

1. Insert the latch into the mounting holes in accordance with the length of the
mSATA card. Push the latch down until the clips at each end of the latch lock
into position. You will hear a distinctive "click", indicating the latch is cor-
rectly locked into position.
Latch
Installing the mSATA Card
2. Grasping the mSATA card by its edges, align the card into the slot at an ap-
proximately 30 degrees angle. Apply firm even pressure to each end of the
card until it slips down into the slot. The contact fingers on the edge of the
card will almost completely disappear inside the slot.
3. Push the mSATA card down until the clips at each end of the latch lock into
position. You will hear a distinctive “click”, indicating the card is correctly
locked into position.
Clip Clip
