Chapter 3 Hardware Installation

28

Chapter 3

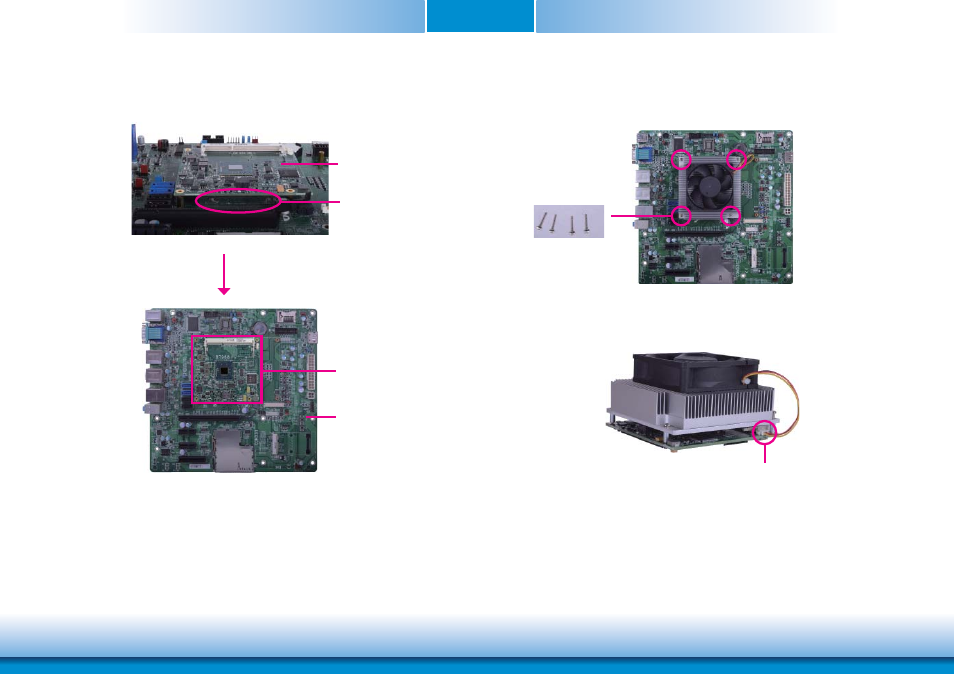

9. Use the provided mounting screws to secure BT968 with heat sink to the carrier board

and then connect the cooling fan’s cable to the fan connector on BT968. The photo below

shows the locations of the long mounting screws.

Long screws

10. And then connect the cooling fan’s cable to the fan connector on BT968.

8. Verify that the module is firmly seated onto the COM Express connectors of the carrier

board.

The module is completely

seated on the carrier board

Carrier board

BT968

Fan connector

BT968
