Chapter 2 Hardware Installation
Chapter 2

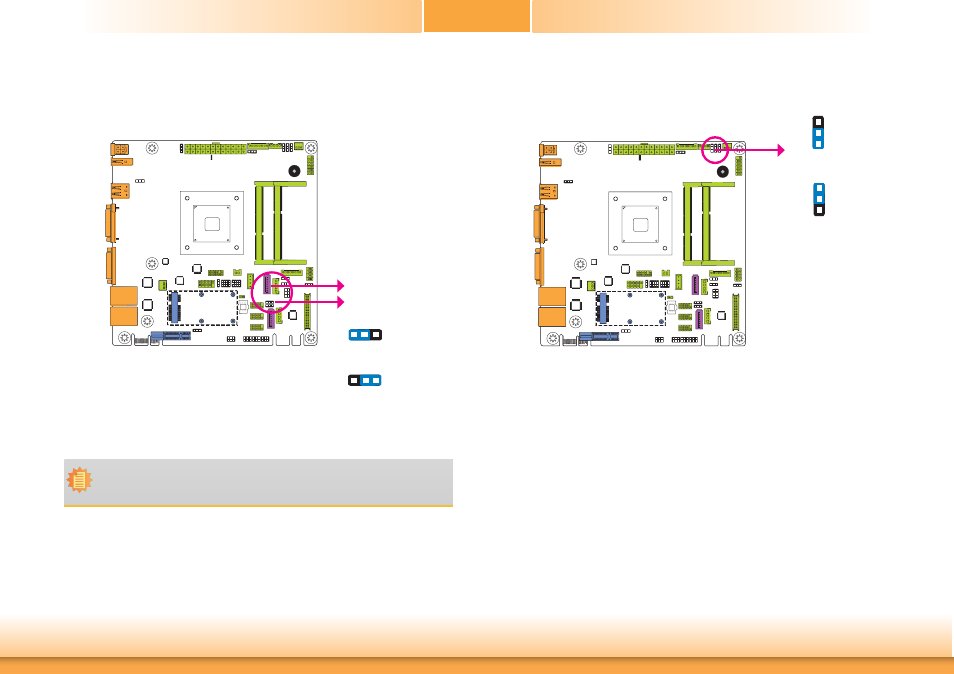

SATA DOM Power Select
1-2 On: GND (default)
2-3 On: +5V
1
3
2
1
3
2
Note:
1. SATA port 0 provides adequate space for SATA DOM.
2. When SATA port 0 does not operate as the SATA DOM device, JP13 must be set to
1-2 On.
JP13 is used to select the power level of SATA DOM.
JP13
SATA 0
Digital I/O Power Select
2-3 On: +5V (default)
1-2 On: +5V_standby
JP17 is used to select the power of DIO (Digital I/O) signal.
JP17
1
3
2
1
3
2
