System and Pump/Dispenser Wiring Pulser Wiring Diagrams
Page 28 MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008
Pulser Wiring Diagrams

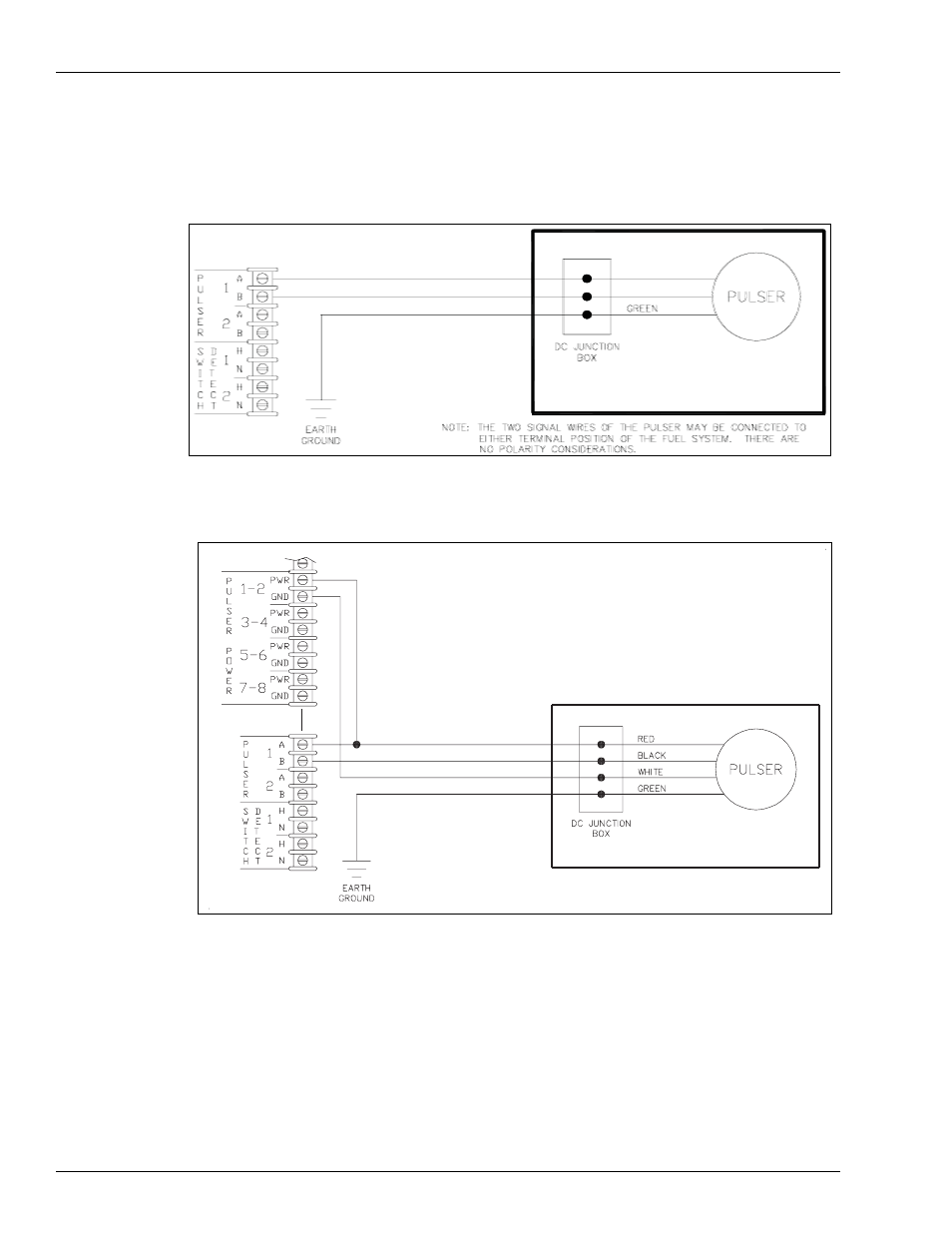

Figure 4-3: V-R Reed Switch Pulser, 1871 Series 10:1
Figure 4-4: V-R Reed Switch Pulser, 1871 Series 10:1
