Communication Wiring Field Wiring Schemes for Ports 1 and 2
Page 54 MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008
RS-232 Cable Assembly

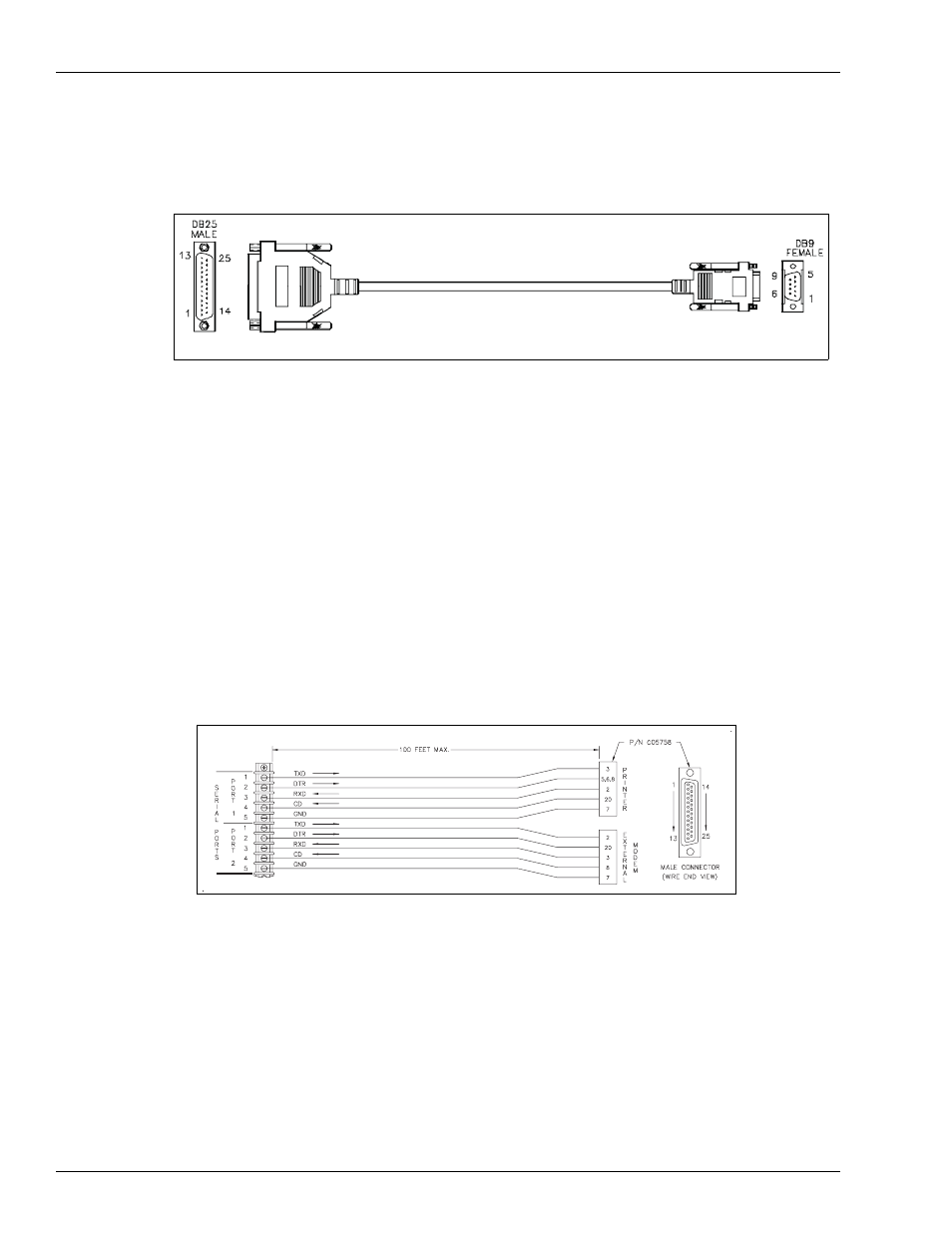

Figure 5-4: RS232 Cable Assembly Part Number C04654
Field Wiring Schemes for Ports 1 and 2
The wiring diagrams on the next few pages show the various wiring schemes that are available
on the Series 1000. Each port may be wired for any of the wiring schemes provided that the
installation requirements are met as outlined in
“Requirements” on page 51 . The diagrams on
this page show Port 1 connected to a printer or printer/CRT combination while Port 2 is
connected to an external modem or PC. For specific information on connecting a Link CRT
terminal and an Okidata
® printer, refer to “Wiring for Link CRT Terminal and Okidata Printer”
on page 57 . The diagrams on the next page show auxiliary port wiring for a Veeder-Root TLS
Tank Monitoring System.
Figure 5-5: RS-232 - D Connector
