Gasboy 1000 Series Fuel Management System Installation - Manual (Page 60)

Communication Wiring Auxiliary Port Wiring
Page 56 MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008
Auxiliary Port Wiring

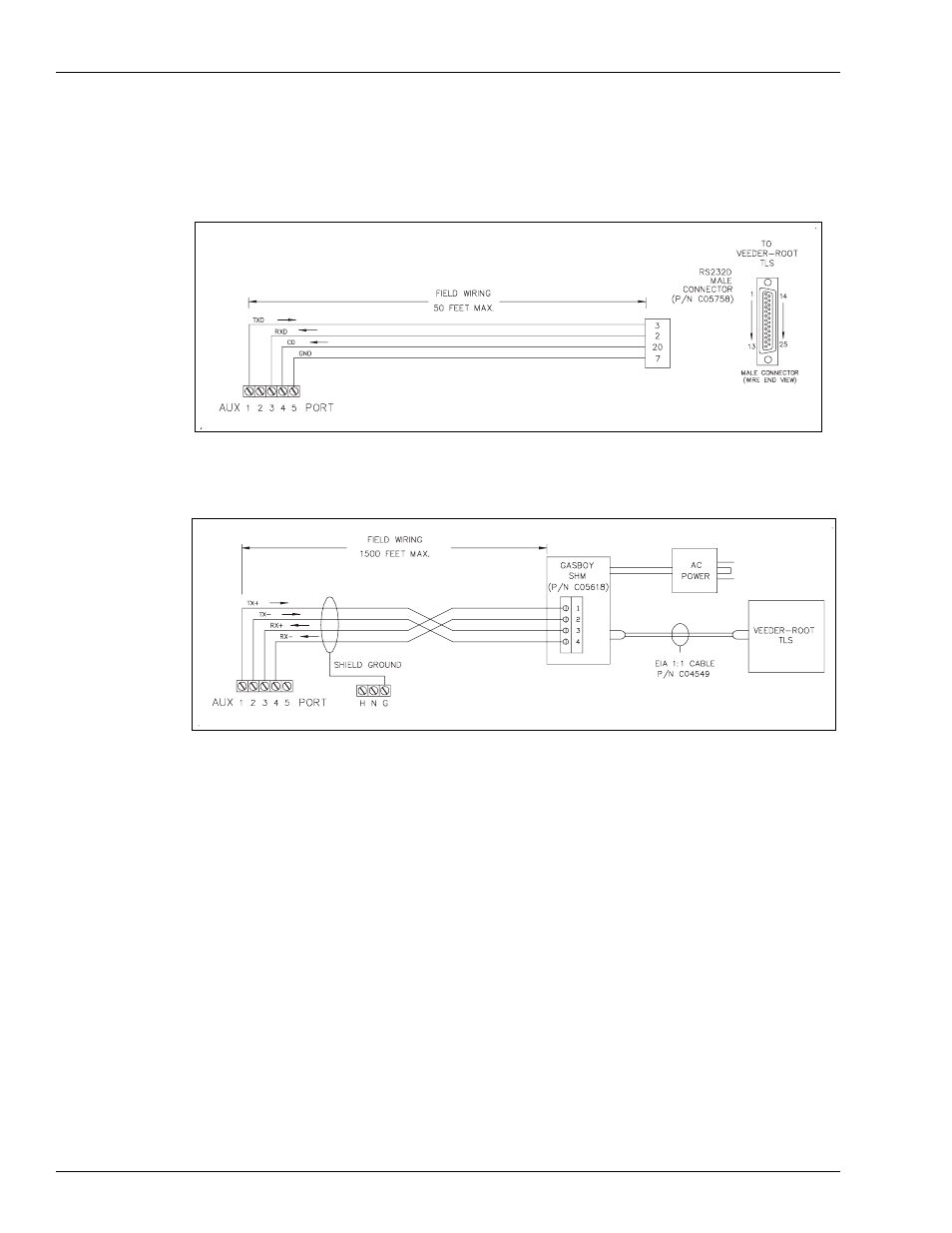

Figure 5-9: RS-232 - Veeder-Root TLS
Figure 5-10: RS-422 - Gasboy Short Haul Modem to Veeder-Root TLS
