System and Pump/Dispenser Wiring 9852QX, 9853QX, 9840QX, 9850AX, 9850AXS Dispensers
Page 44 MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008
9852QX, 9853QX, 9840QX, 9850AX, 9850AXS Dispensers

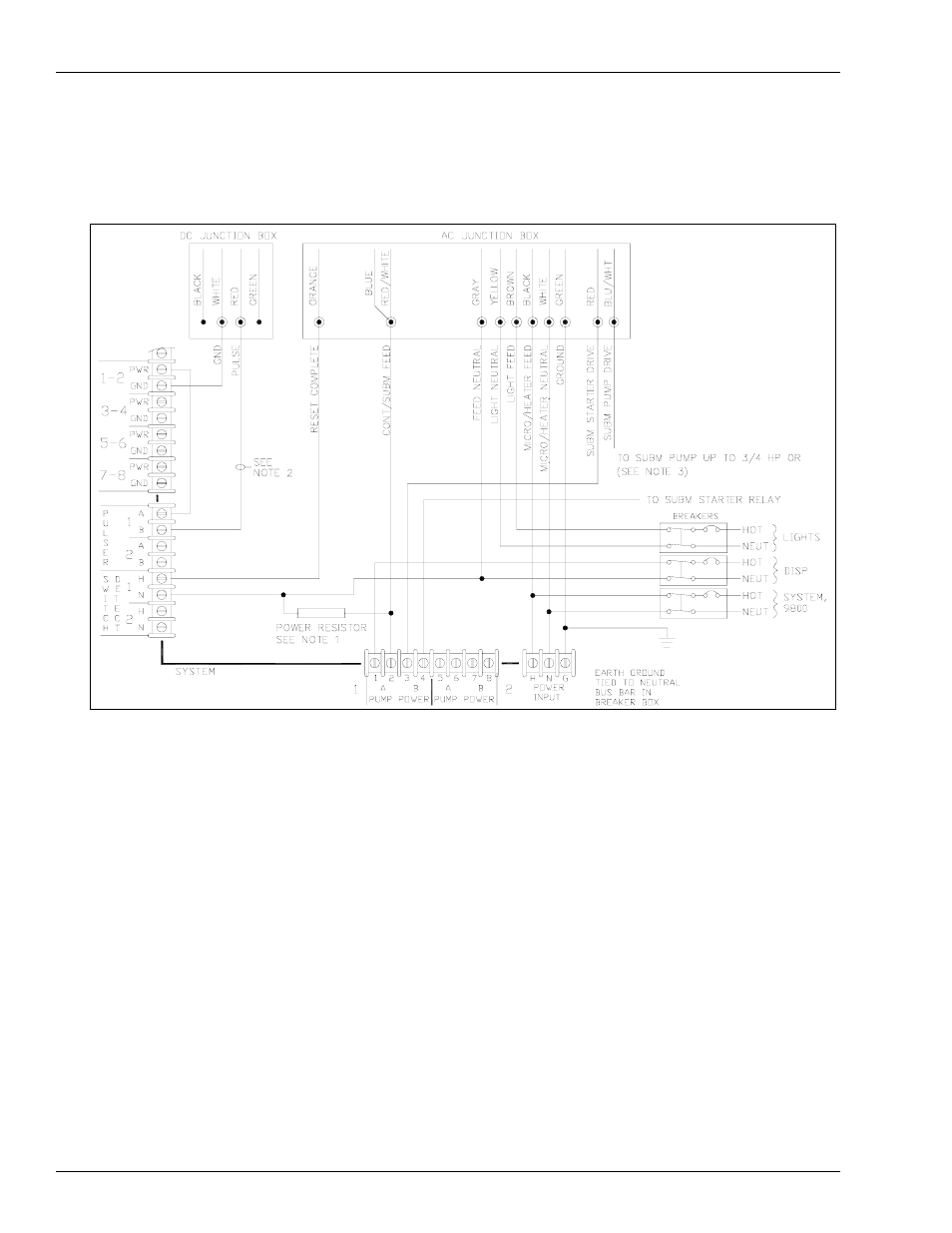

Figure 4-19: 9852QX, 9853QX, 9840QX, 9850AX, 9850AXS Dispensers
Notes:1) The power resistor assembly is 8.2K OHM, 10 W (Part Number C05818) for 115/230
VAC domestic units and 30K OHM, 10 W (Part Number C06683) for 230 VAC
international units.
2) Before applying power, the Series 1000 Pump Control PCB jumpers must be set for
Series 9800/9820 as described in C08921 Series 1000 Start-up Manual. Failure to
properly set the jumpers will damage the Series 1000 system.
3) If using the SUBM PUMP DRIVE in place of the SUBM STARTER DRIVE to control
the submersible for this unit, connect the SUBM PUMP DRIVE lines through the “B”
contacts of the Series 1000 in place of the SUBM STARTER DRIVE lines. Be sure to
leave the SUBM STARTER DRIVE lines capped.
4) The wire colors may vary. Refer to current pump wiring diagrams.
