System and Pump/Dispenser Wiring
9853AHC, 9840Q Pumps
Page 42 MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008
9853AHC, 9840Q Pumps

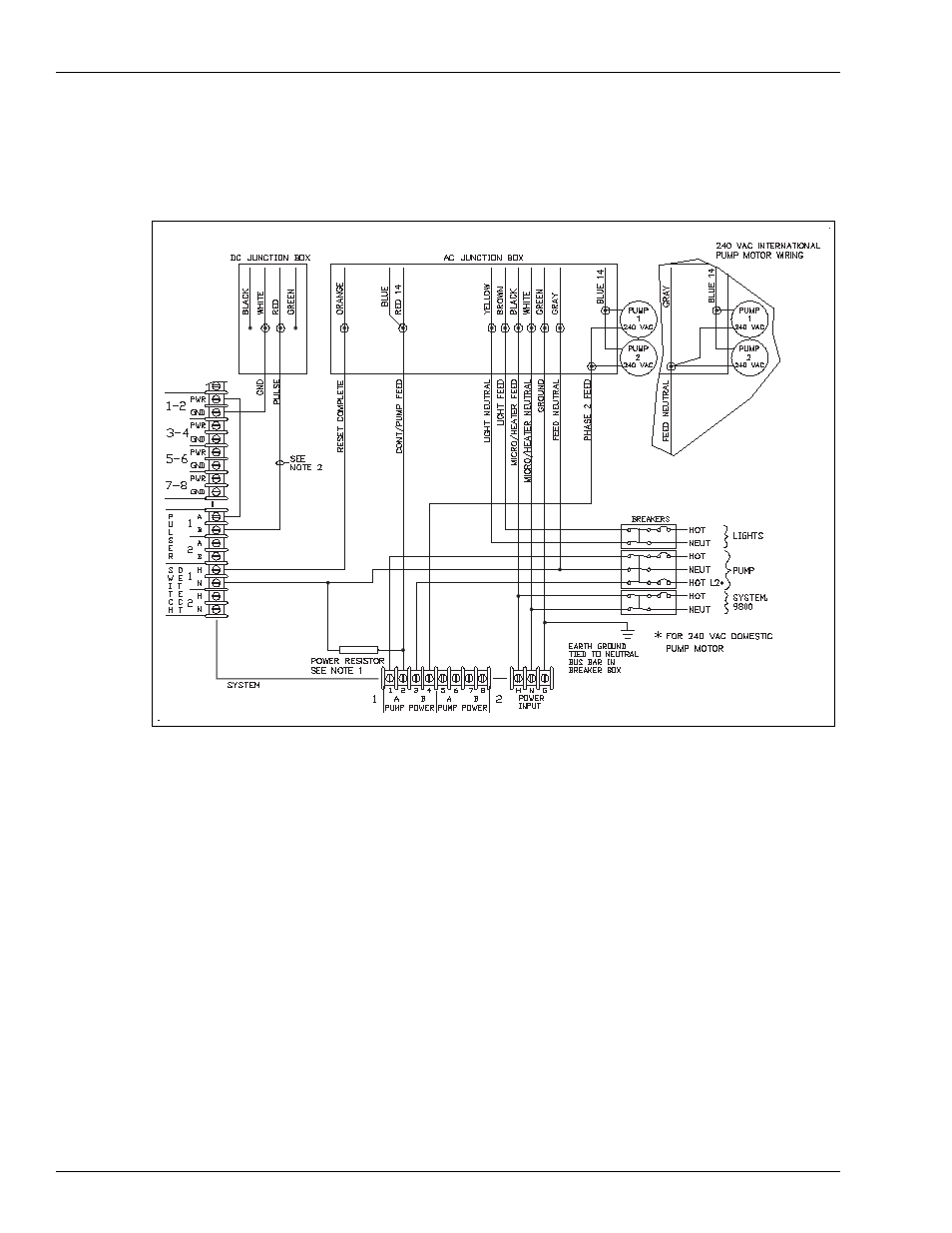

Figure 4-17: 9853AHC, 9840Q Pumps
Notes:1) The power resistor assembly is 8.2K OHM, 10 W (Part Number C05818) for 115/230
VAC domestic units and 30K OHM, 10 W (Part Number C06683) for 230 VAC
international units.
2) Before applying power, the Series 1000 Pump Control PCB jumpers must be set for
Series 9800/9820 as described in C08921 Series 1000 Start-up Manual. Failure to
properly set the jumpers will damage the Series 1000 system.
3) The wire colors may vary. Refer to current pump wiring diagrams.
