MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008
Page 53
Cables
Communication Wiring
EIA 1:1 Cable
This cable can be purchased from Gasboy or made by the installer. It is generally used when
communicating from a printer terminal to an RS-232 termination box or a modem.

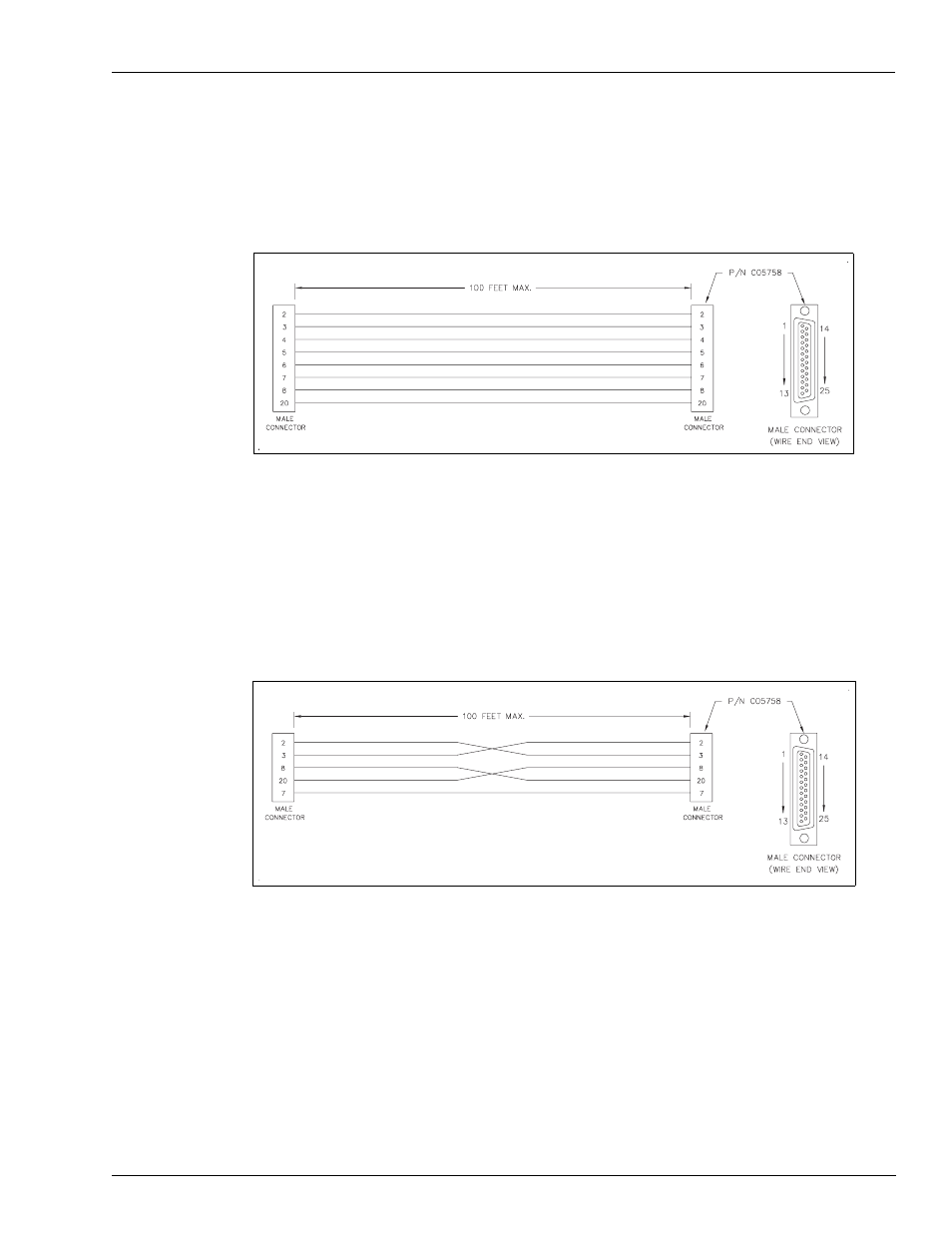

Figure 5-2: EIA 1:1 Cable - Gasboy Part Number C04549
Modem Cable
This cable can be purchased from Gasboy or made by the installer. It is generally used when
an external modem is connecting with an RS-232 termination box or a short haul modem.
Note: Cables supplied by Gasboy for these part numbers are eight feet long.
Figure 5-3: Modem Cable - Gasboy Part Number C04532
