Wiring for Link CRT Terminal and Okidata Printer Communication Wiring
Wiring for Link CRT Terminal and Okidata Printer

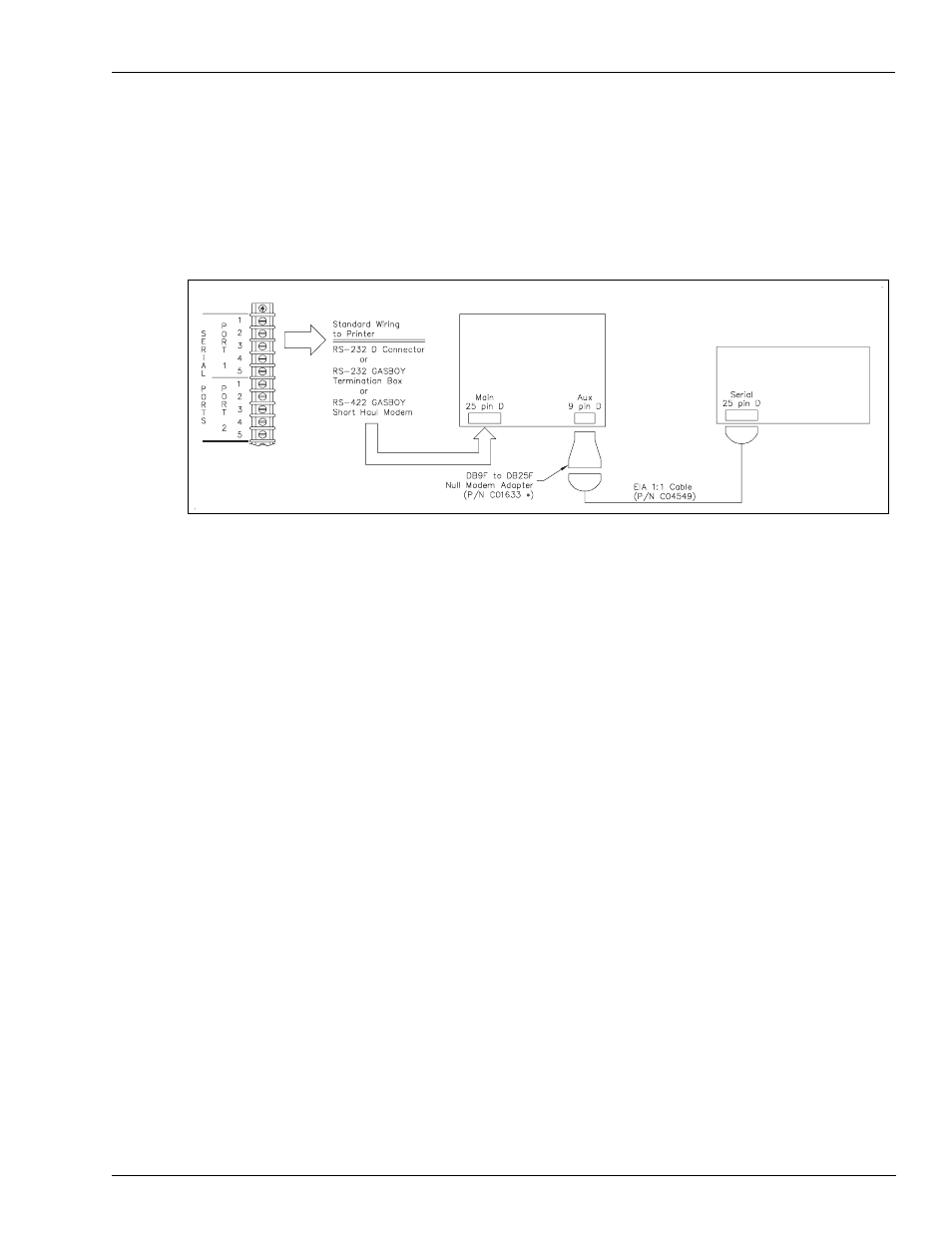

The following diagram shows the connections between the Series 1000 port and the Link CRT
terminal and Okidata printer.
Figure 5-11: Wiring - Link CRT Terminal and Okidata Printer
CRT Terminal (M07339B001) and
Keyboard (Q13181-02)*
Okidata ML186 Printer with Super-speed
Serial I/F (Part Number PA03730000)
* Part Number C03813 is the
combination of M07339B001,
Q13181-02, and C01633
Internal Modem
The Series 1000 System is available with an optional internal modem. When this modem is
installed, Port 2 communication is routed through the modem in place of being wired at the
terminal block in the post. The phone line for the internal modem must not be installed in the
DC conduit. Check with the local phone company for proper installation of the phone line.
The Gasboy internal modem (Part Number C05739) is a Bell 103J/212A compatible answer
modem. It is designed for 0-300 or 1200 baud, full duplex, asynchronous communication. The
modem is mounted inside the Gasboy system at the factory. Power for the modem is supplied
by the Gasboy system.
When using Gasboy PC1000 for Windows ® , a 9600 baud modem (Part Number C07530) is
available.
The Gasboy internal modem is designed to meet or exceed the direct connect registration
requirements of the FCC rules. This means that the modem will connect directly with a jack
supplied by a phone company. The customer is required to order this phone jack and have it
installed in the Gasboy system’s post.
To order this equipment from a phone company, specify:
• Any one of the following jacks - RJ11C or RJ41S or RJ45S.
• The registration number of 6BHUSA-24793-DT-E.
• The data transmission rate of 0 - 300 or 1200 baud.
• The Bell equivalent of 103J/212A.
