MDE-4344A Series 1000 Fuel Management System Installation Manual · November 2008 Page 33
Single Dispenser, V-R Reset System and Pump/Dispenser Wiring
Single Dispenser, V-R Reset

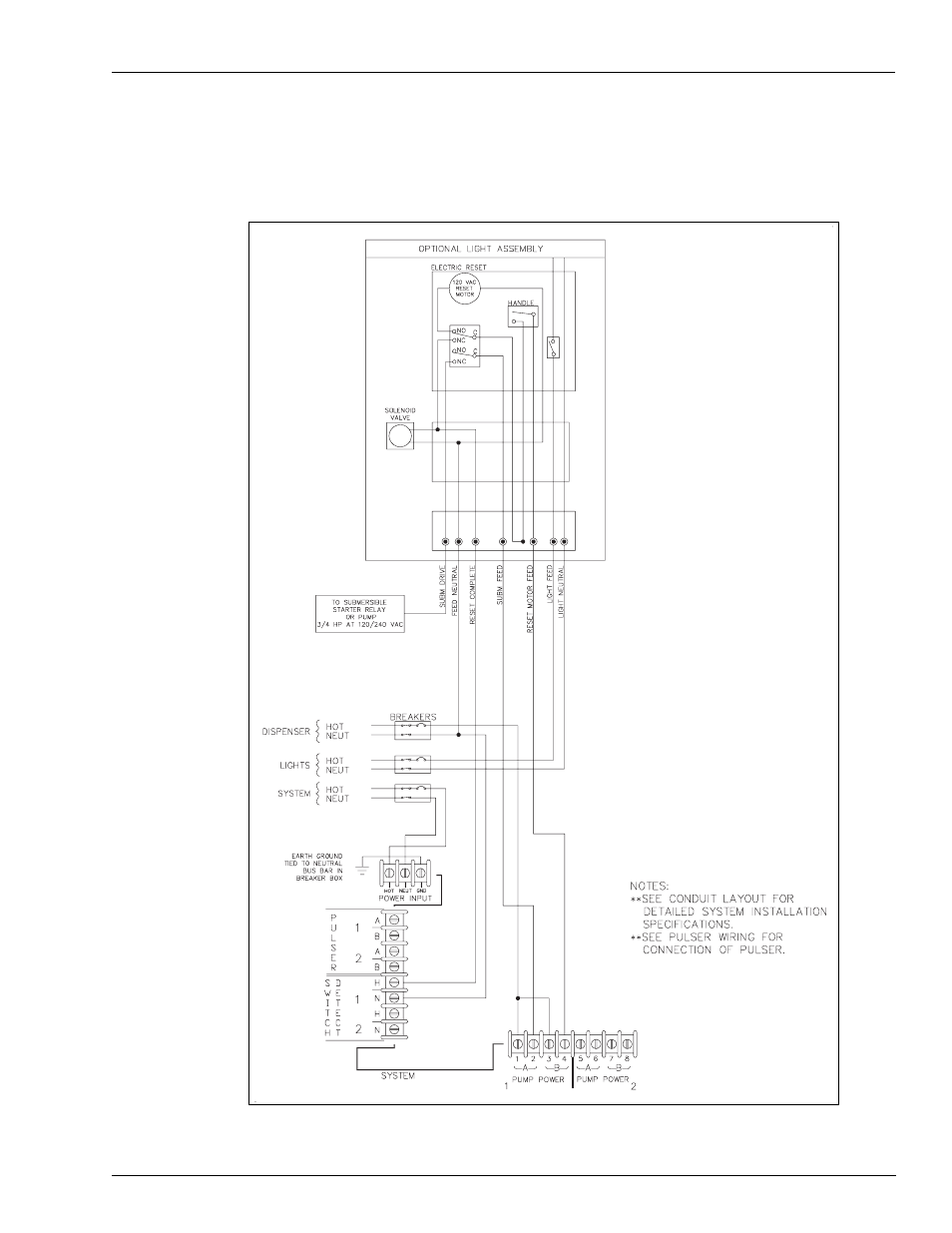

Figure 4-8: Single Dispenser, V-R Reset
