Connecting Up 2
24
En
DIGITAL OUTPUT AUDIO OUTPUT
1
S1/S2
COAX. OPT.
R R L
SURROUND CENTER
Y
SUB WOOFER
2
COMPONENT
B /P B C /P R C R
VIDEO
VIDEO OUTPUT DVI-D OUT
(HDCP)
IN OUT
REMOTE CONTROL
RS-232C
EXT. INT.
2
1
A/V EUROCONNECTOR
L
FRONT
1 3
2
EXT. INT.

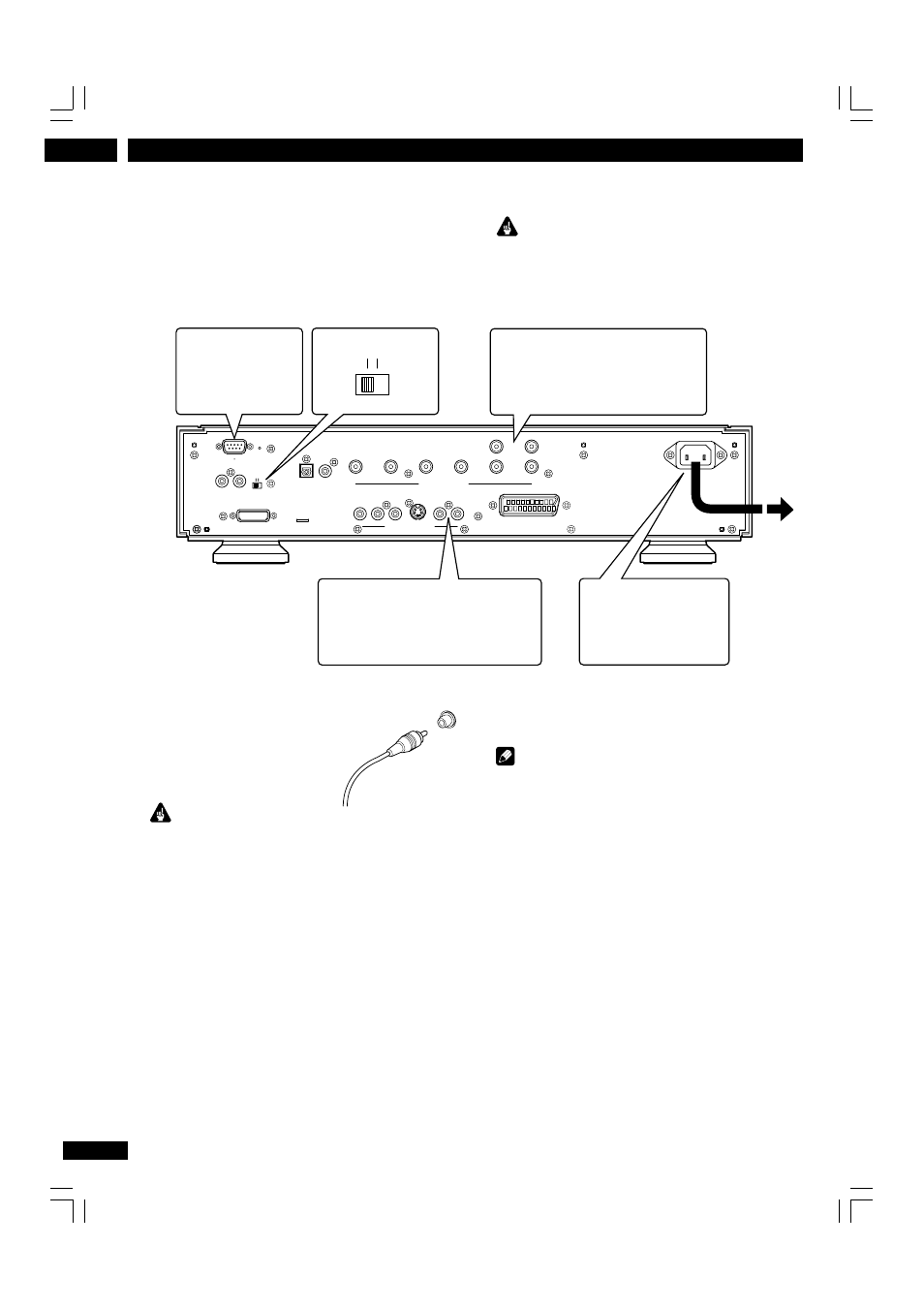

Easy Setup
This easy setup is the minimum set of connections you
need to start watching DVD video discs. Both sound and
picture are fed directly to your TV using the supplied
Audio/Video cable. For other possible connections, see
pages 28 and 32.
Connecting Audio/Video cables
Be sure to insert each plug fully for
the best connection. The plugs and
jacks are colour-coded to make
connection easier.
Important
• In order to properly ground this player, you must connect at
least one audio or video cable (not including an optical cable)
in addition to the control cable.
Connecting system control cables
By connecting this DVD player to another Marantz audio
component using a supplied System Control cable, you can
remotely operate the components as a single system.
• When connecting to component with a remote sensor (such as
the SR-12S1), be sure to connect the REMOTE CONTROL IN
jack of this DVD player to the REMOTE CONTROL OUT jack of
the component with the remote sensor.
Important
Before making or changing any rear panel connections, make sure
that all components are switched off and unplugged from the wall
outlet.
• When connecting to component which is not equipped with a
remote sensor, be sure to connect the component to the
REMOTE CONTROL OUT jack of this DVD player.
Note
Be sure to leave power switch on the Front panel in the
power mode.
Remote switch
• When using this DVD player independently, set this switch to
INT.. When using this DVD player in a system with a Marantz
receiver equipped with a remote sensor, set the switch to EXT..
RS-232C terminal
Control terminal for
use by custom
installers.
Connect to a composite video input
on your TV using the supplied yellow
video cable. Plug into a standard AC
wall outlet.
Connect to a pair of stereo audio
inputs on your TV using the
supplied Audio/Video cable.
