Appendix B: DB9/RJ45 Adapter Pin-outs
Below are the pin-outs for the adapters ADP-000007-R and ADP-000008:

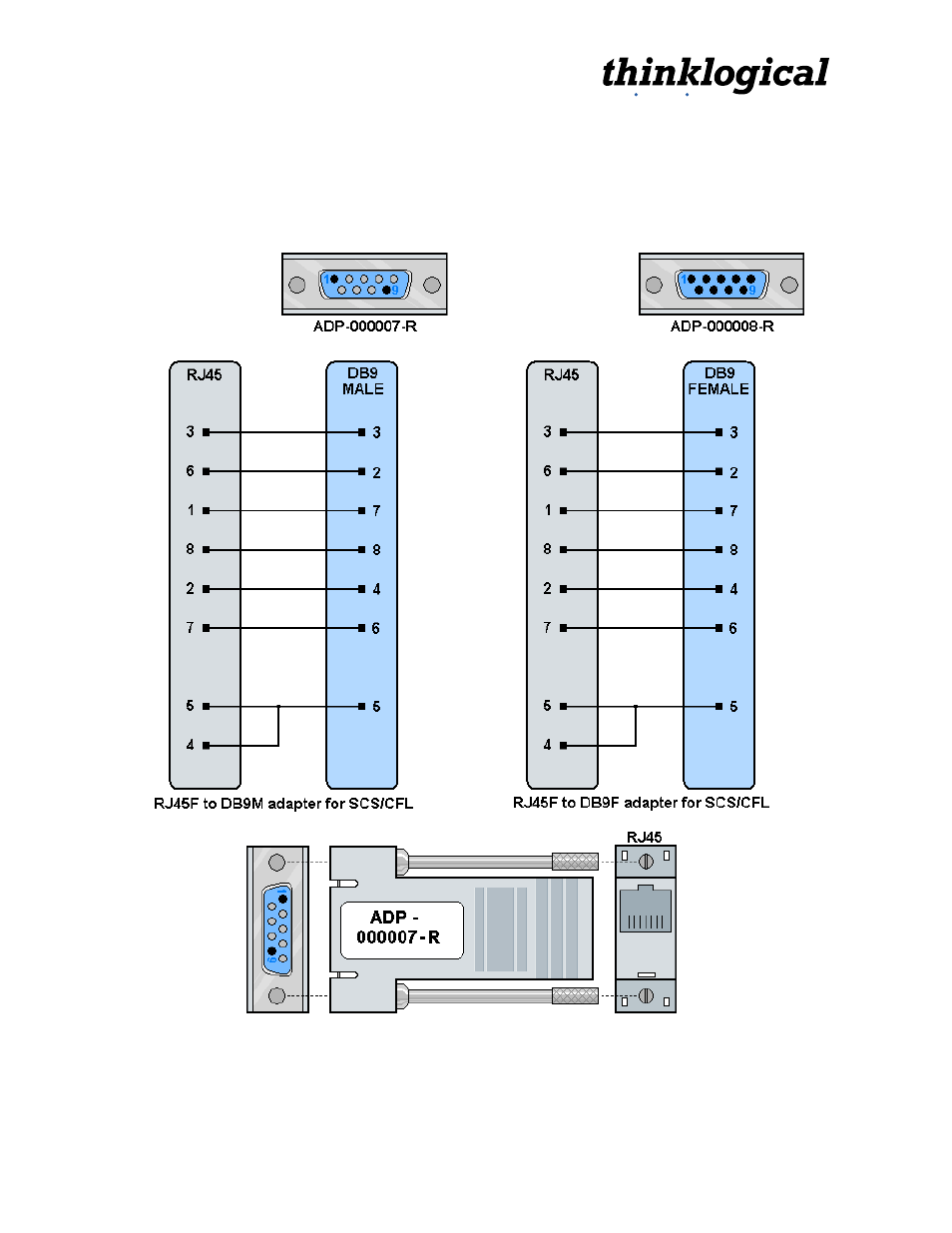

Figure 13: DB9/RJ45 Adapter Pin-outs
