Configuration

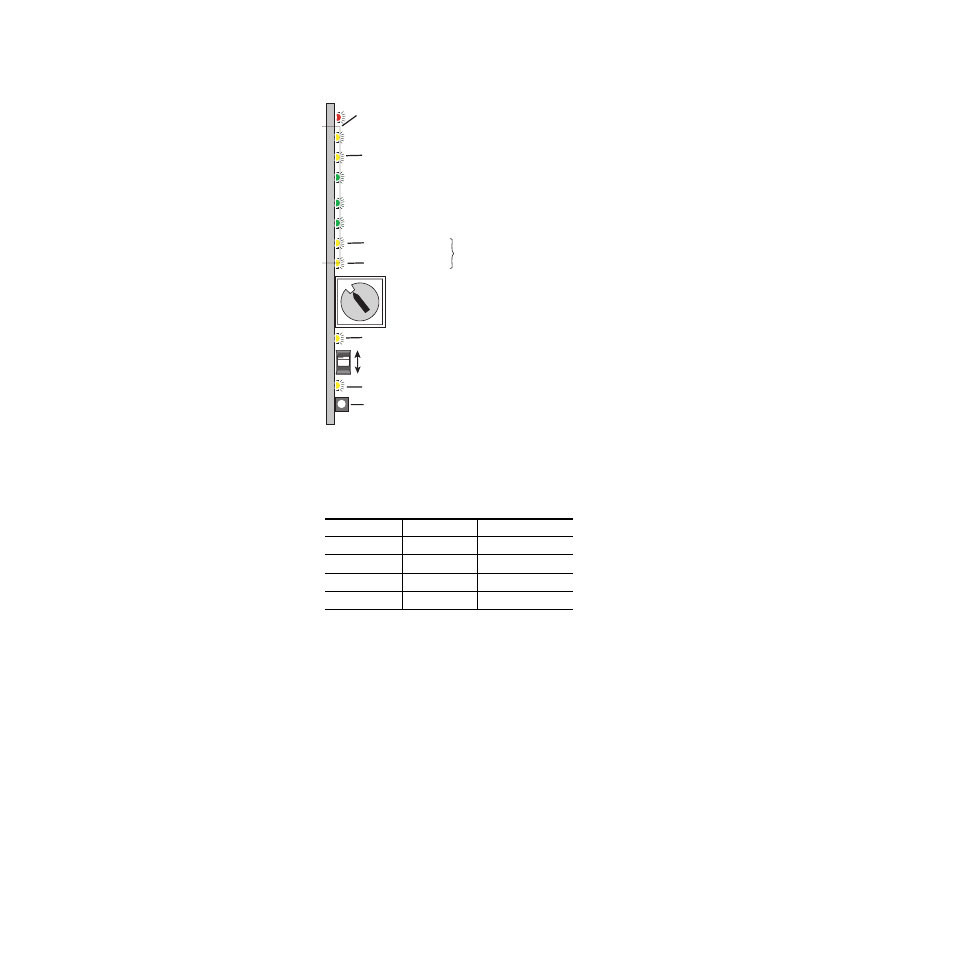

Figure 5. Onboard Configuration Components – Front View
Refer to Table 6 for reading the CM1 and CM0 active channel LED indica-
tors.
Table 6. CM1 and CM0 LED Table
CM1 LED State CM0 LED State Channel Control
Off Off Channel 1 is active
Off On Channel 2 is active
On Off Channel 3 is active
On On Channel 4 is active
16-position Function rotary switch – accesses up to 3 banks
of controls. Bank selected is indicted by state of 2ND LED.
SW2 – Paddle switch for incrementing parameter values (Parameter mode)
or selecting active channel (CSM, Channel Select Mode)
SW4 – Pushbutton switch to toggle between Parameter
and CSM modes
Ejector Tab
2ND LED – Bank 1 = Off, Bank 2 = On
8301_04r1
0
1
2
3 4
5 6 7
8
9
A
B
CD E
F
CONF – Yellow LED on indicates module is initiating,
changing operating mode, or updating firmware
CM1 – Yellow LED
CSM LED – on in Channel Select Mode (use paddle to select channel)
CM0 – Yellow LED
Indicate active channel control (see table in text)
