Configuration
Status Web Page
The Status web page ( Figure 10 on page 27 ) shows the input signal status
of each of the channels and the reference input. Color coding of the display
and the Status LED indicates the signal status. Refer to
Status Monitoring on
page 48 for a complete explanation of the color coding.
When the module detects an error, warning messages, such as signal or ref-
erence not present, will appear between the lines below the status graphic
as illustrated in
Figure 10 on page 27 . Refer to the I/O Config Web Page on
page 28 for information on disabling the status reporting.
Status of the OSD displays on each output is also shown. A link to the OSD
Control web page is provided so the OSD can be enabled or disabled from
the browser. For more information on enabling or disabling an OSD
display through the web browser, refer to
OSD Control Web Page on
page 41 .
Information about the module, such as part number, serial number, hard-
ware revision and software and firmware versions are given in a read-only
section at the bottom of the display.
The Asset Tag field is active in frames running 8900NET software version
3.2.2 and later.
Clicking on the model number in the center box will take you to the Func-
tional View page illustrating a block diagram overview of the module with
links to each of the configuration pages.

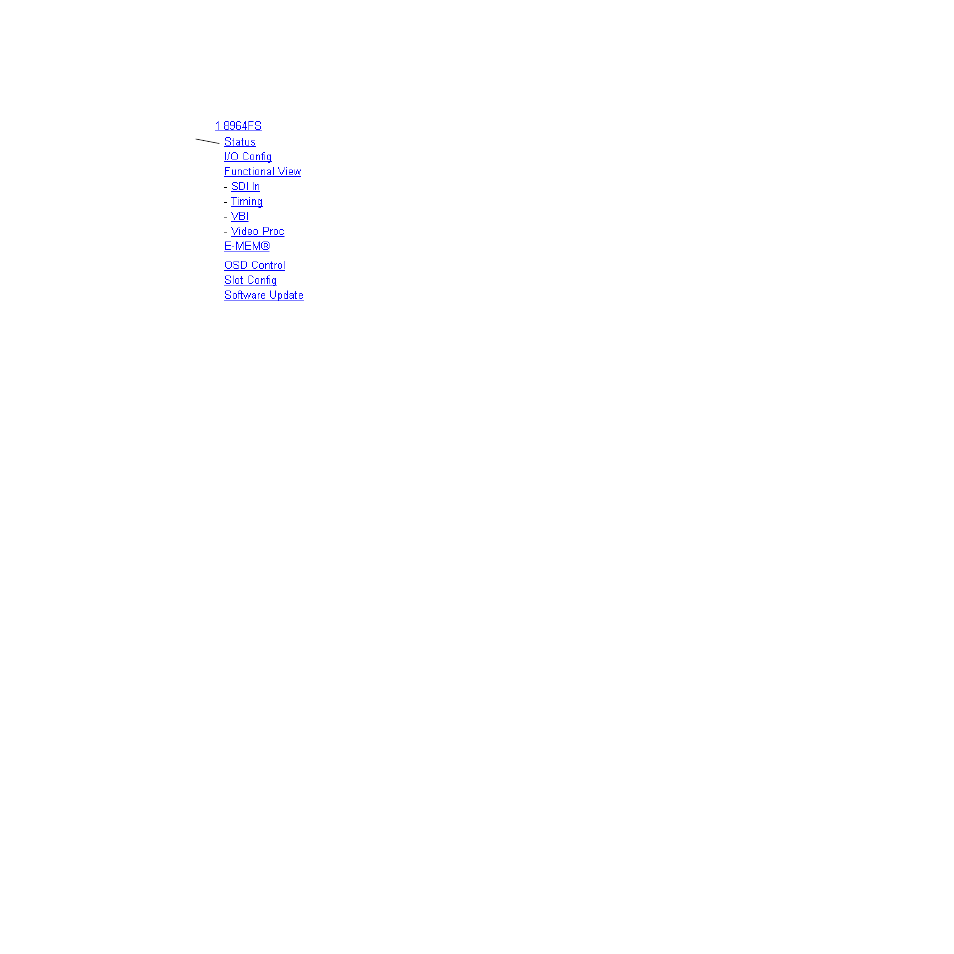

Use
this
link
