8964FS Instruction Manual 19
Configuration
Onboard Jumpers
Two onboard jumpers must be set for the following:
• Jumper JP1 allows (LCL&REM position) or locks out (LOCAL position)
remote control.
• Jumper JP3, OSD enables (OSD EN pins 2-3) or disables (OSD DIS pins
1-2) control of the OSD (On Screen Display).
The On Screen Display (OSD) graphic can be enabled on the output of
each channel to allow viewing of the currently selected Rotary switch
function and the currently assigned parameters. The OSD is provided
for an aid in configuring the module in local mode and should be
turned off on each channel with either the local or remote controls
before broadcasting the signal. You may also set this jumper to disable
the OSD completely after the module is configured to prevent the OSD
information from being put on-air.
When control is enabled with jumper JP3, the OSD for each channel can
be turned on or off with either local or remote controls.

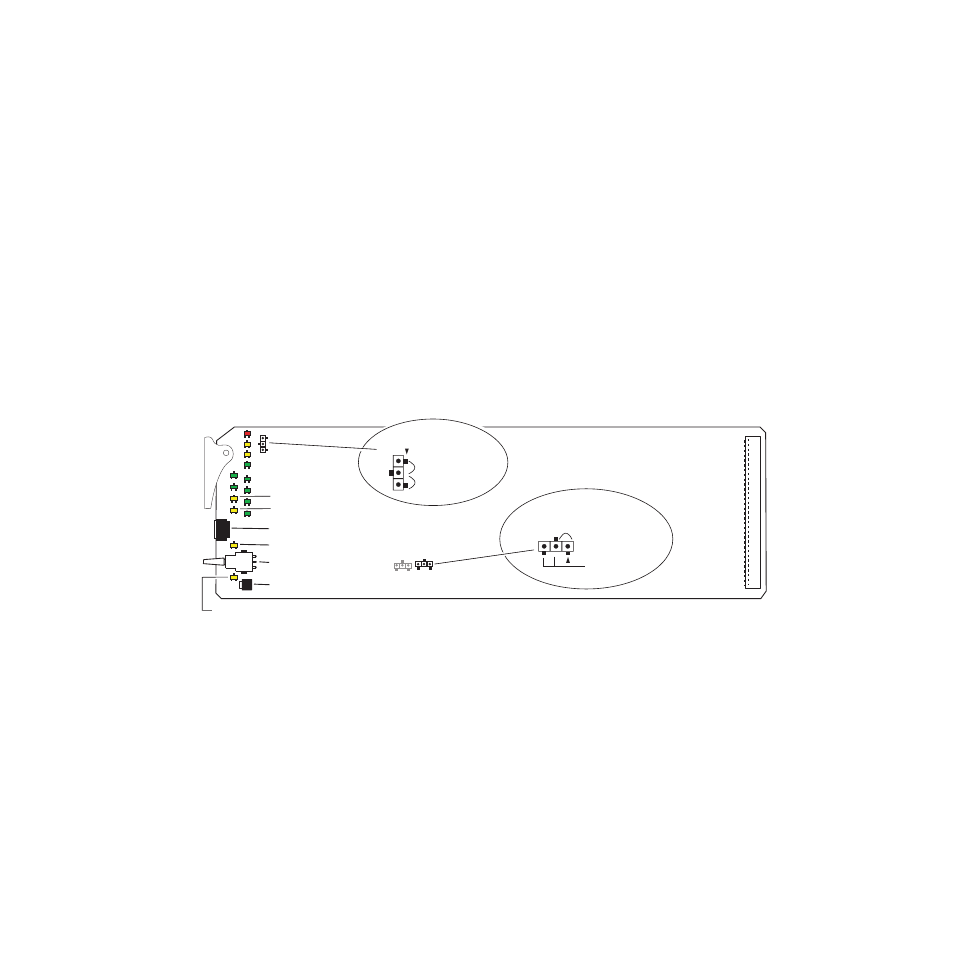

Figure 6. Module Configuration Switches and LEDs
8209_06
Place jumper in Local position
to lock out remote access.
Function rotary switch
2ND Function LED
CM1 LED
CM0 LED
Pushbutton switch
Paddle switch
LCL&REM (2–3)
CSM LED
Remote Lockout
LOCAL (1–2)
JP1
On Screen Display Control
JP3
OSD DIS (1–2)
OSD EN (2-3)
