Configuration
The 8900 web interface GUI provides the following links and web pages for
the 8964FS module (
Figure 9 ):
• Status – reports input and reference signal status and module informa-
tion (
page 26 ),
• I/O Config – shows a graphic representation of inputs and outputs to
the module and allows naming of each input (
page 28 ),
• Functional View – shows a block diagram of the module with links to
each configuration page (
page 29 ),
• Module Configuration pages for setting up the module ( page 30 ),
• E-MEM – provides Learn and Recall functions for up to 5 E-MEM reg-
isters along with
Save to and Load from file operations ( page 37 ),
• OSD Control – provides controls to enable or disable the OSD for each
channel (
page 41 ),
• Slot Config – provides a Locate Module function and Slot Memory
(
page 42 ), and
• Software Update – allows updating of software from a CD-ROM or the
web site (
page 44 ).

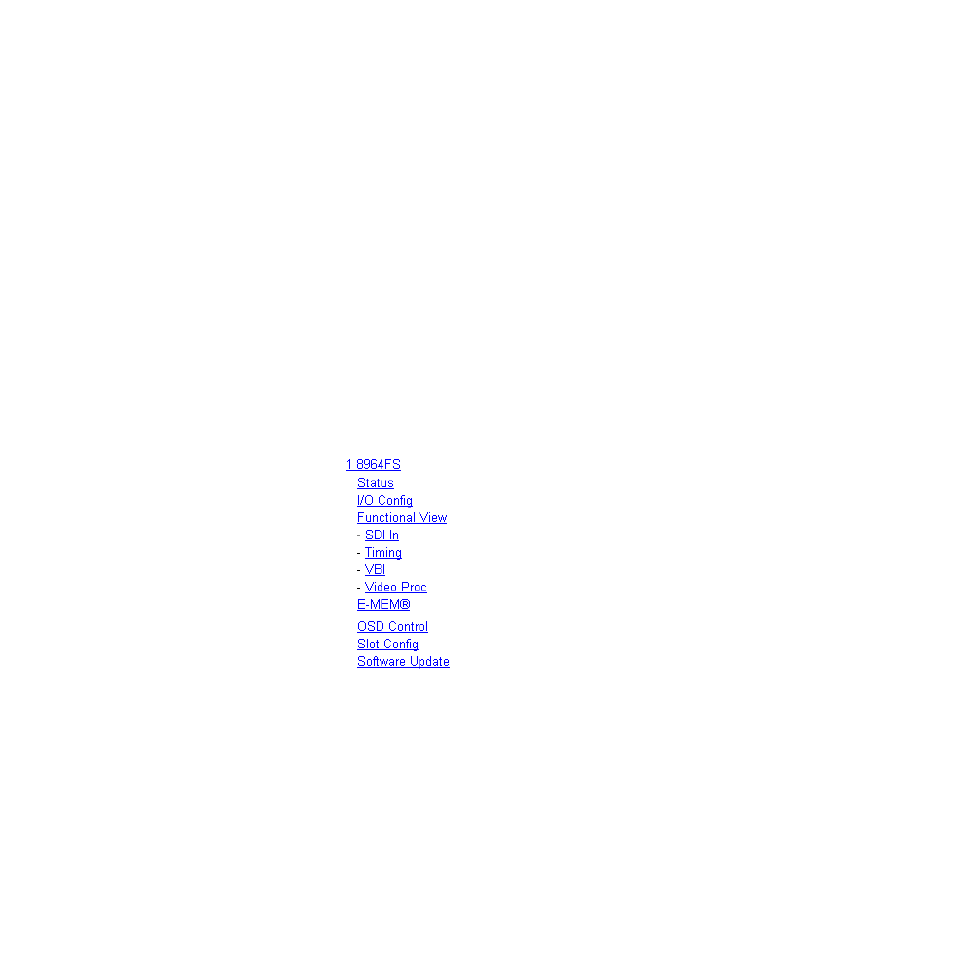

Figure 9. 8964FS Web Page Links
