STR2 Hardware Manual
920-0059B
1/30/2014
Getting Started
To use your STR2 step motor drive, you’ll need the following:
• a 12 to 48 volt DC power supply. Please read the section
Choosing a Power Supply for
help in choosing the right power supply.
• one of the motors listed recommended in this manual.
• a small flat blade screwdriver for tightening the connectors.
• a source of step signals, such as a PLC or motion controller.

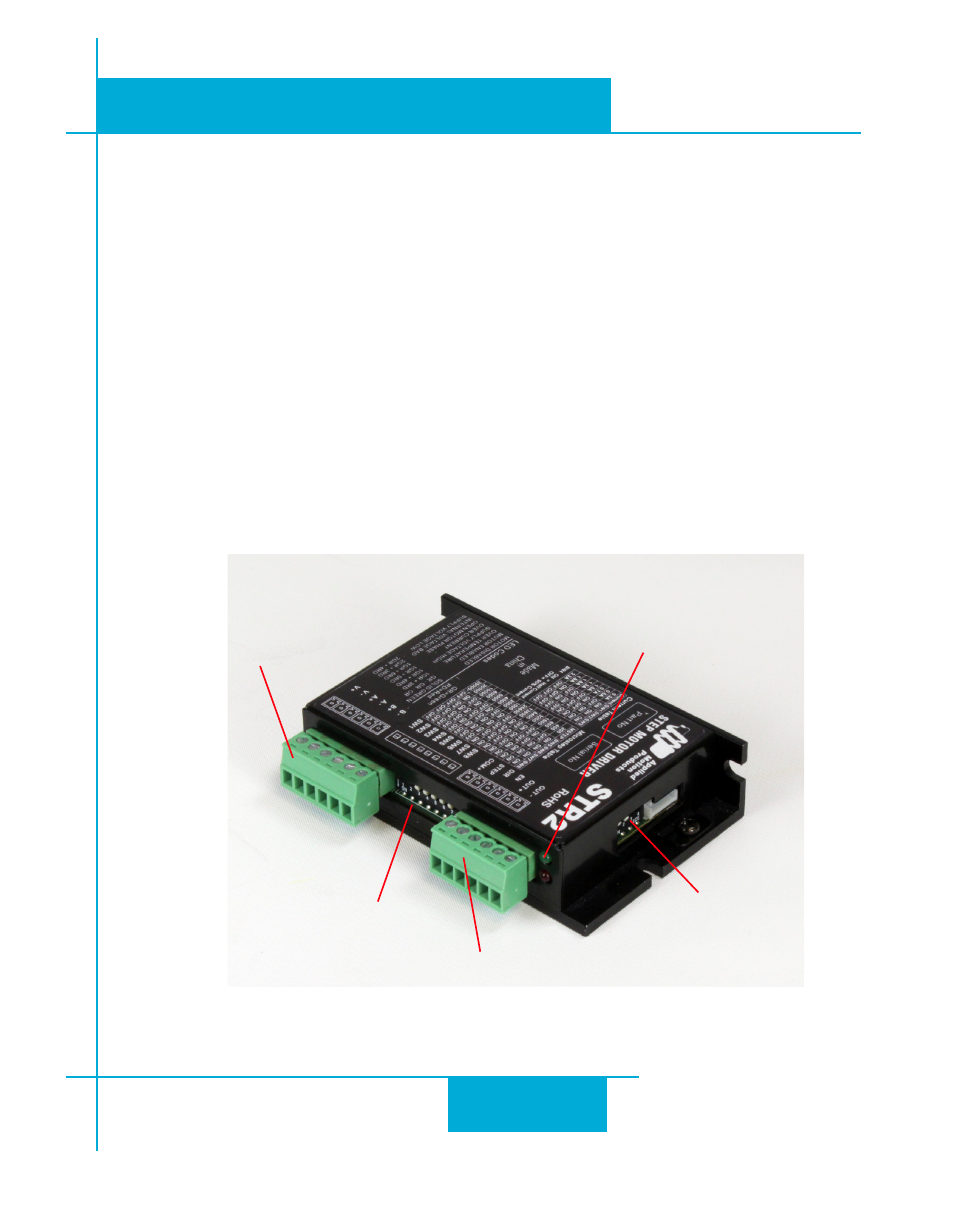

The connectors and other points of interest are illustrated below. These are detailed later in
the manual.
Motor &
Power Supply
Connector
SWITCH A
Self Test
Step Noise Filter
Idle Current
Run Current
Steps/rev
Input & Output
Signals
SWITCH B
Motor Selection
Load Inertia
Status LEDs
