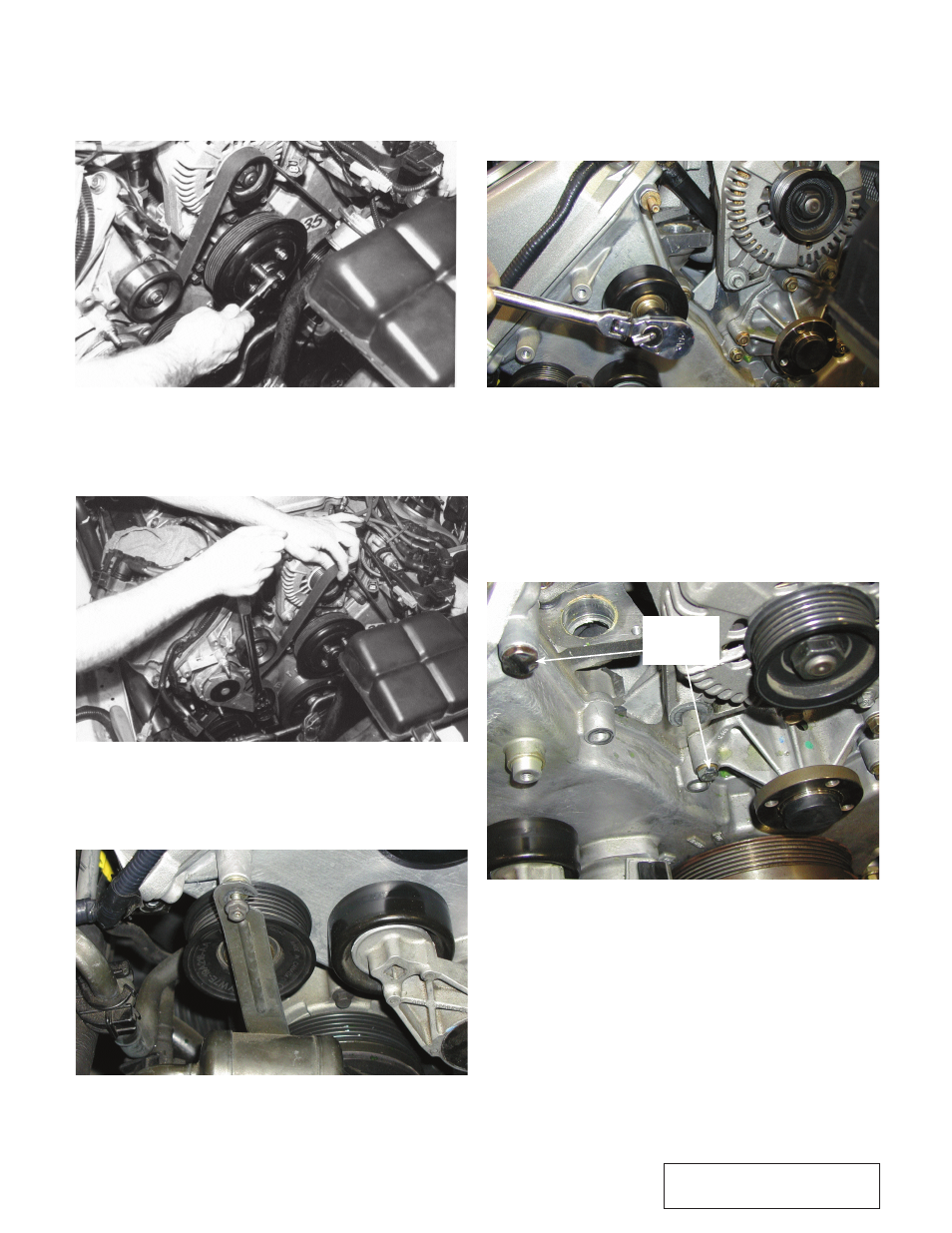

Fig. 2-j
Fig. 2-k
Fig. 2-l
Fig. 2-m
I.
Using a 3/8" ratchet or breaker bar, rotate the
belt tensioner clockwise then remove and dis-
card the drive belt . (See Fig. 2-k .)
J.
Remove the 10mm nut and the 13mm bolt/
stud which attaches the A/C bracket to the
front of the engine . (See Fig. 2-l .)
K.
Remove the water pump pulley, followed by
the idler pulley (see Fig. 2-m), which will be
re-installed in a later step .
H.
Loosen but do not remove the four bolts
securing the water pump pulley . (See Fig.
L.
Remove the three 13mm bolts from the front
cover, the water pump bolt, and the alternator
bolt . (See Fig. 2-n .) Replace the top-most bolt
and the water pump bolt with the supplied low
profile bolts . The remaining holes will be used
as attachment points for the idler support
bracket .
lOW PROFIlE
bOlTS
Fig. 2-n
