The supercharger feed line is attached by
removing an existing pipe plug in the bottom
of the oil filter housing, and installing the sup-
plied ¼-inch NPT to –4 90° fitting and steel
braided hose (see Fig. 5-d, arrow) . Run the
line up the side of the engine, between the
valve cover and the power steering reservoir
bracket, under the coolant transfer manifold
and attach it to the supercharger . (See
Fig. 5-e) Zip-tie the oil feed line to the CTM .

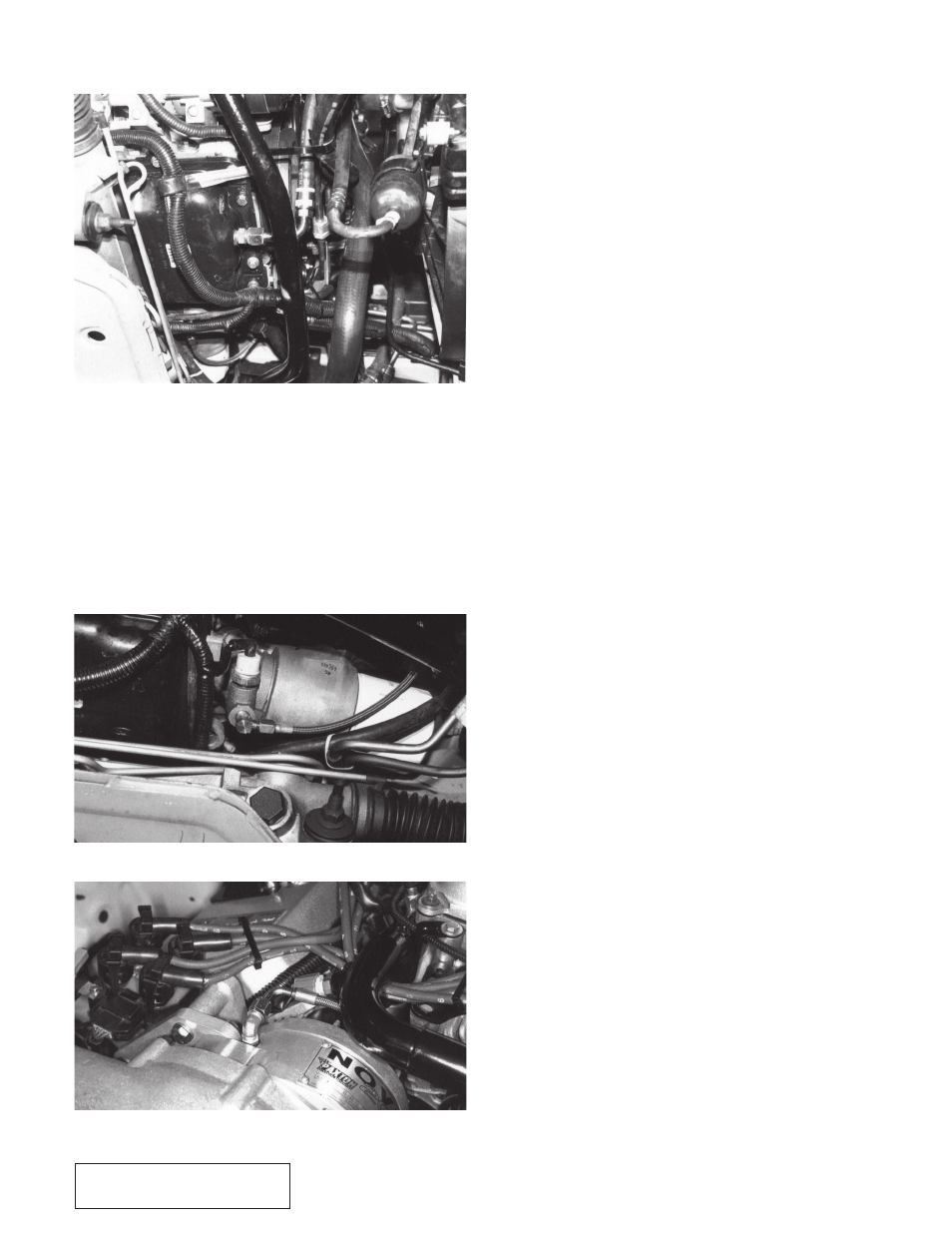

Fig. 5-d
Fig. 5-e
Fig. 5-c
