Section 4
COOlING SYSTEM MODIFICATIONS
SPACER STANDS
4.
COOLING SYSTEM
MODIFICATIONS
These modifications are necessary in order to
allow clearance for the supercharger .
A.
The supplied Coolant Transfer Manifold
(CTM) is taller than the original, providing
necessary clearance for the supercharger . To
mount the new CTM, trim the two mounting
stud bolts to 3/4", and thread the supplied alu-
minum spacer stands (Fig. 4-a, arrows) ('96
-'98 model shown) into place on the driver’s
side to properly locate the CTM . Remove the
original coolant temperature sensors from the
old CTM and install in the new unit . Install
the CTM and secure with the supplied fasten-
ers .
*** NOTE ***
Some kits may be supplied with a CTM that
appears differently than the unit shown. both
CTM’s mount in the same manner.

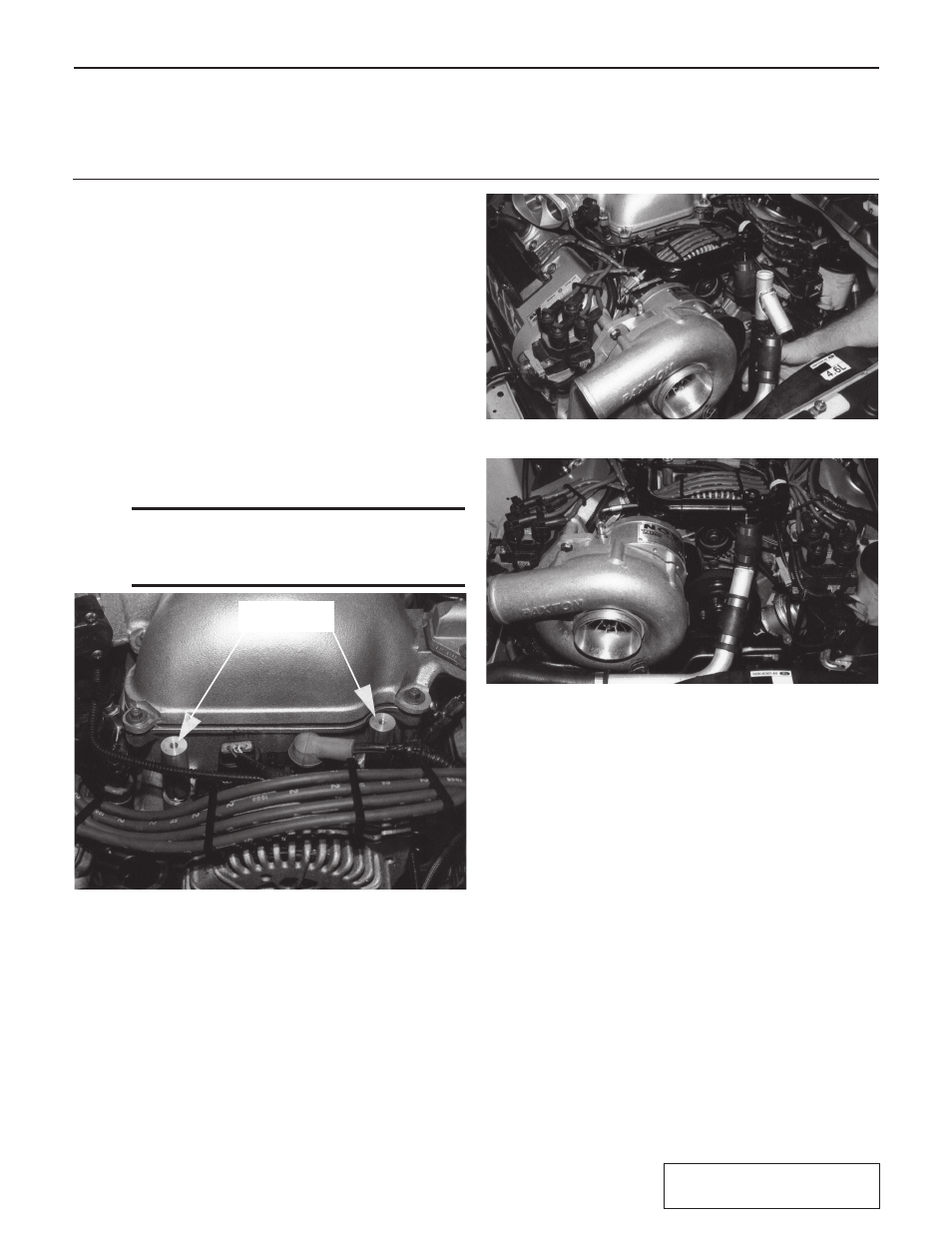

Fig. 4-a
Fig. 4-b
Fig. 4-c
B.
Install the straight portion of the Y tube into
the lower radiator hose, and orient the angled
portion towards the passenger side of the car .
(See Fig. 4-b .) Install the supplied upper radi-
ator hose and attach to the angled portion of
the Y tube . Install the upper portion of the Y
tube into the CTM . (See Fig. 4-c .)
