A. Locate the supplied oil feed line in the Assy
1019350. On the passenger-side cylinder head,
there is a small pipe plug, near the front and
below the oil fill neck.
B. Using a 3/16" allen wrench, remove the allen
plug. Install the 1/8"NPT x -4 x 90° supplied
fitting. The 1/8"NPT x -4 x 90° fitting, when
installed, should be pointing straight up. (See
Fig. 2.2-a.)
C. After the supplied pulley is installed check and
confirm that the pulley is sitting flush with the
face of the factory pulley.
A. Locate the supercharger crank pulley Assembly
1015611 that is provided.
B. Bolt the Paxton Supercharger crank pulley to
the face of the stock crank pulley, using the
(3)supplied allen-head bolts. (See Fig. 2.3-a.)
*** NOTE ***
Apply Loc-Tite thread lock to threads.

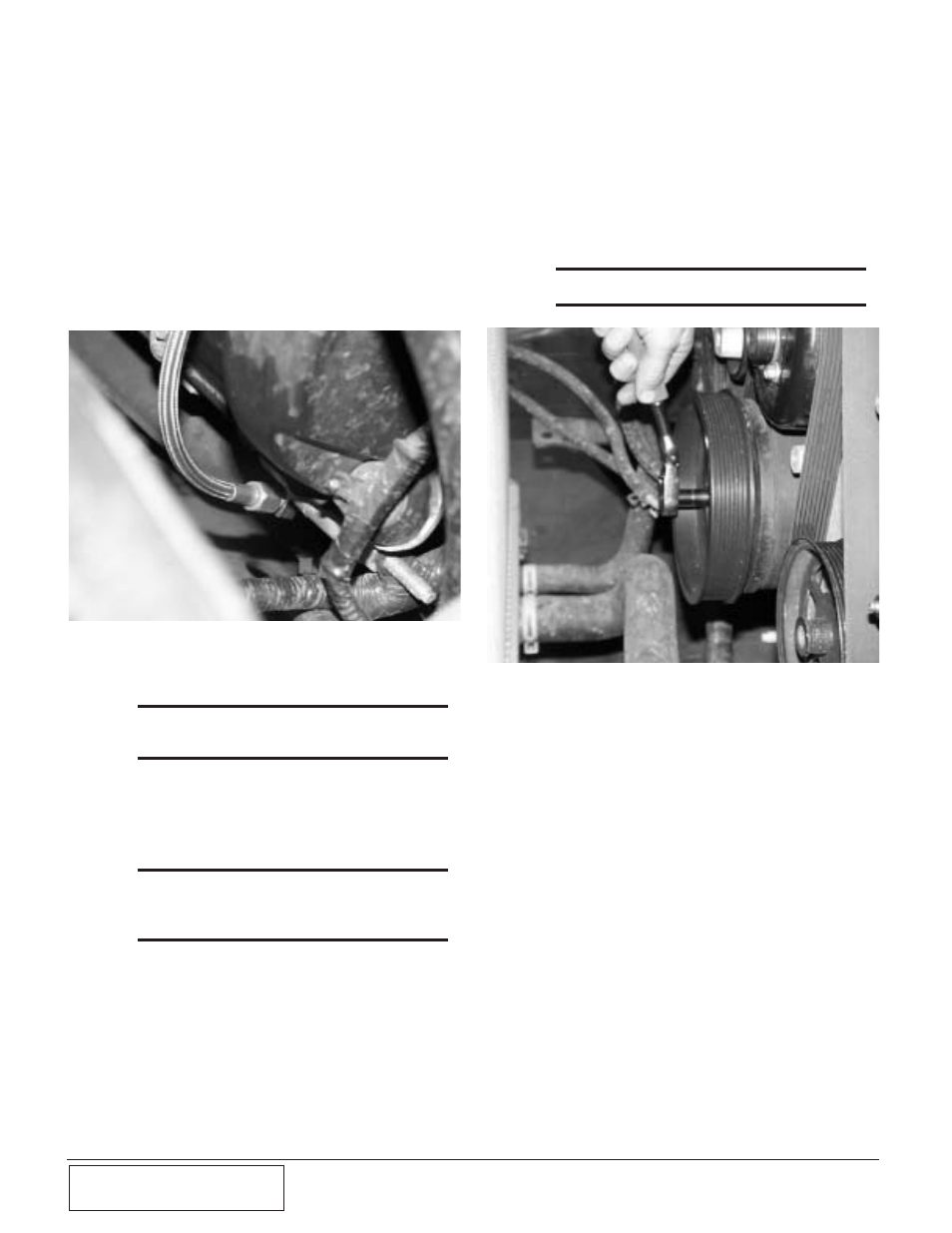

Fig 2.2-a
Fig 2.3-a
Attach the oil feed line and route it over to the
driver-side underneath the alternator.
*** NOTE ***
Supercharger and oil feed line will be installed
during a later stage of the installation.
C. Install the 1/8"NPT x -4 x 90° oil feed line fitting
into the brass oil jet fitting into the blower. Use
only engine oil on the oil feed jet fitting. Using a
thread sealant may clog the oil jet orifice and
damage the supercharger.
*** NOTE ***
Support the oil jet with an open end wrench to
prevent snapping off the fitting during installation
of the 1/8"NPT x -4 x 90° fitting.)
