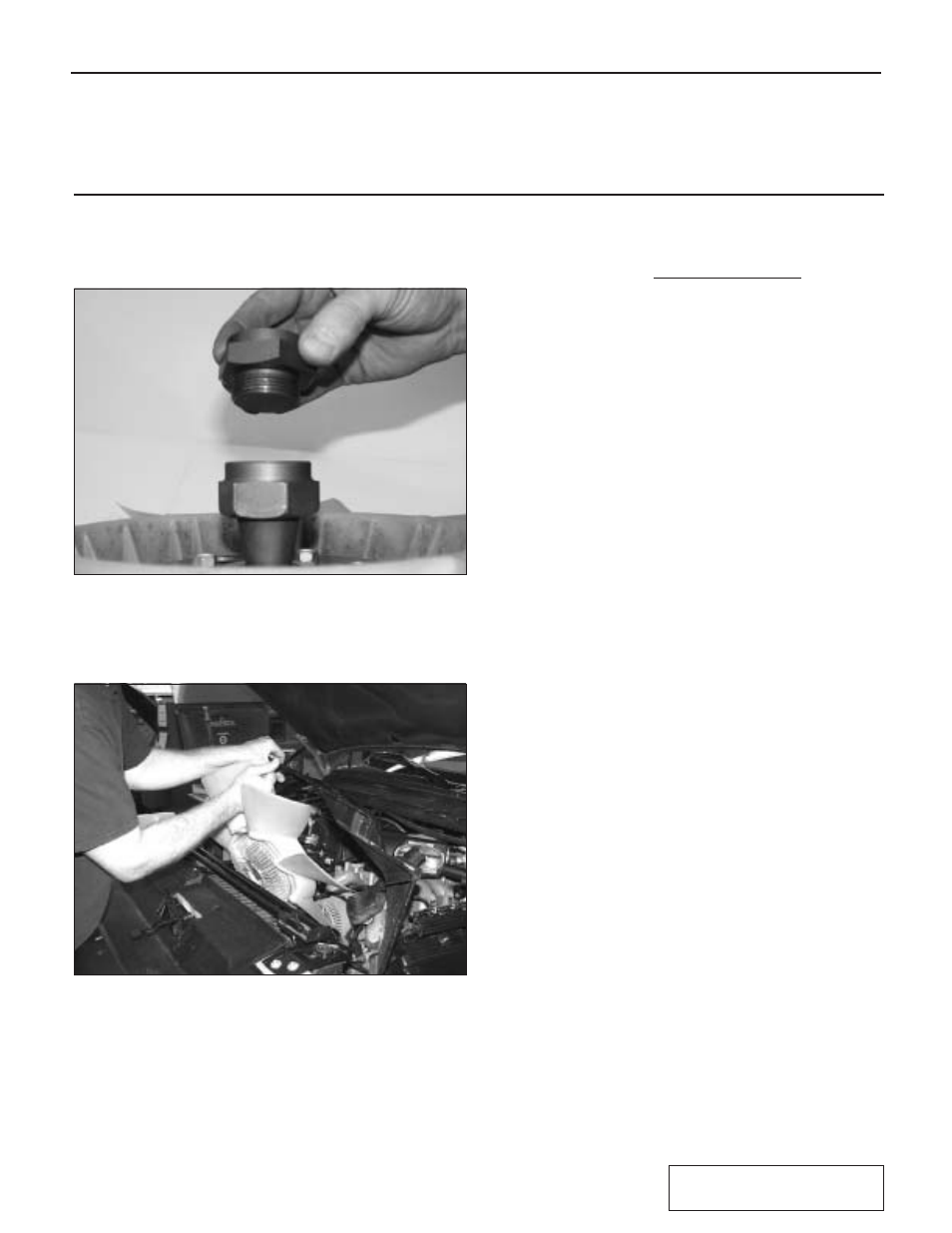

Fig 5.1-a
A.
Install the supplied fan spacer to the factory fan
clutch. (See Fig. 5.1-a.)
B.
Slide the fan and fan shroud (see Fig. 5.1-b)
simultaneously in place and screw the fan
onto the water pump.
Fig 5.1-b
5.1
REINSTALLING FAN & SHROUD
Section 5
REINSTALLING FAN AND SHROUD
C.
Re-install the fan shroud, re-attach the coolant
reservoir. Re-install the upper radiator hose to
the radiator and the end marked “R” to the ther-
mostat housing (reversing the hose). This is
done to clear the supercharger bracket. Fill radi-
ator reservoir per the manufacturer’s specifica-
tion. (See Fig. 5.1-b.)
