3-1
P/N: 4809606
©2005 Paxton Automotive
All Rights Reserved, Intl. Copr. Secured
06SEP05 v4.0 FordV10(4809606v4.0)
3.1 DISCHARGE DUCT ASSEMBLY
INSTALLATION

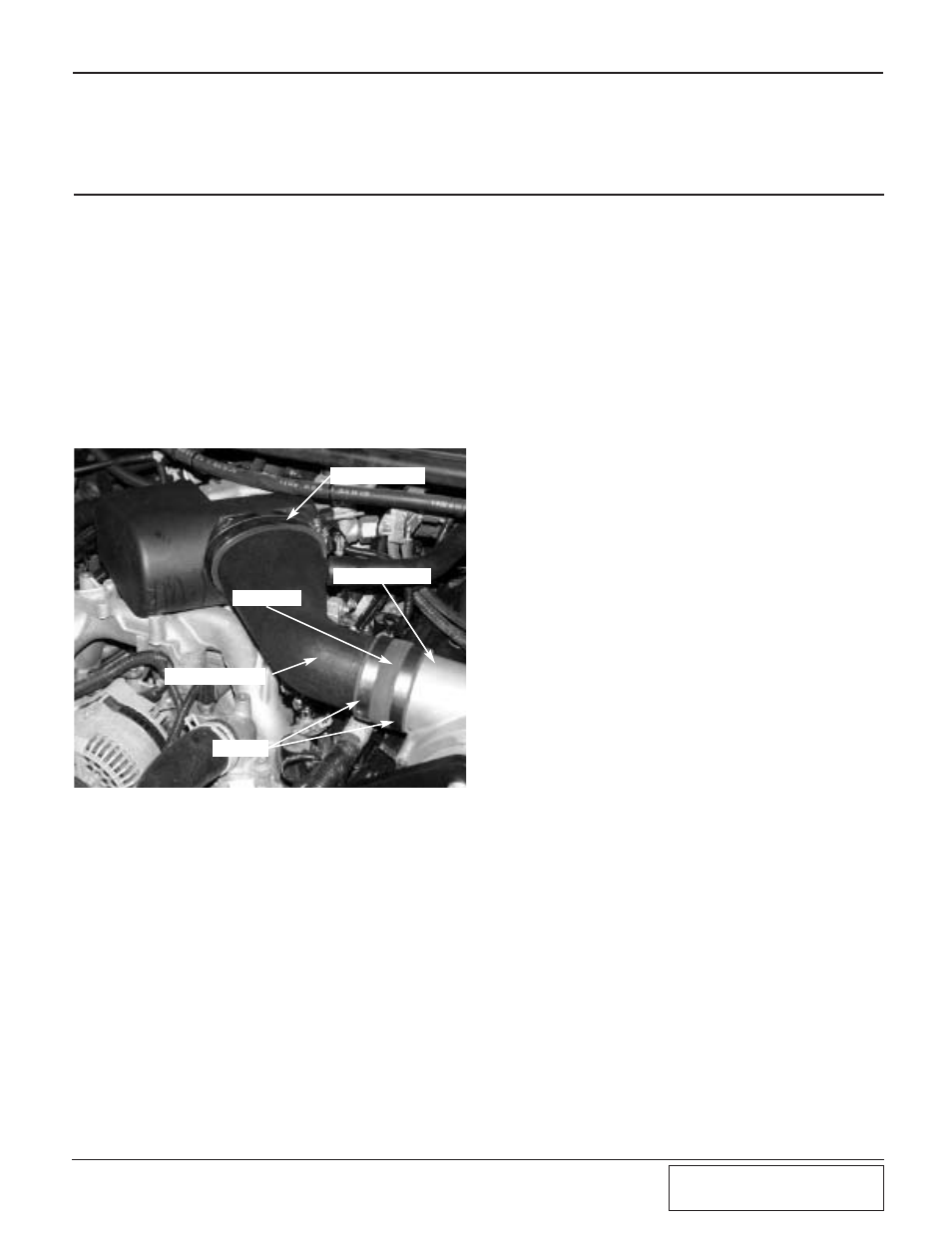

Fig 3.1-a
A. Locate discharge Assembly 1016011.
B. Install the supplied 3.0" x 2.0"L sleeve to the
discharge duct by pushing the sleeve all the way
onto the discharge tube.
C. Attach the 4.25" x 2.0"L sleeve to the throttle
body with the clamps provided.
D. Position the discharge tube between the throttle
body and the supercharger. Slide both sleeves
into position and secure with the supplied hose
clamps.(See Fig 3.1-a.)
E. Attach idle air bypass hose to the nipple on the
discharge tube with the supplied clamp. (See
Appendix G.)
Section 3
DISCHARGE DUCT ASSEMBLY INSTALLATION
DISCHARGE TUBE
CLAMPS
SUPERCHARGER
THROTTLE BODY
COUPLINGS
