3.) Interface Description

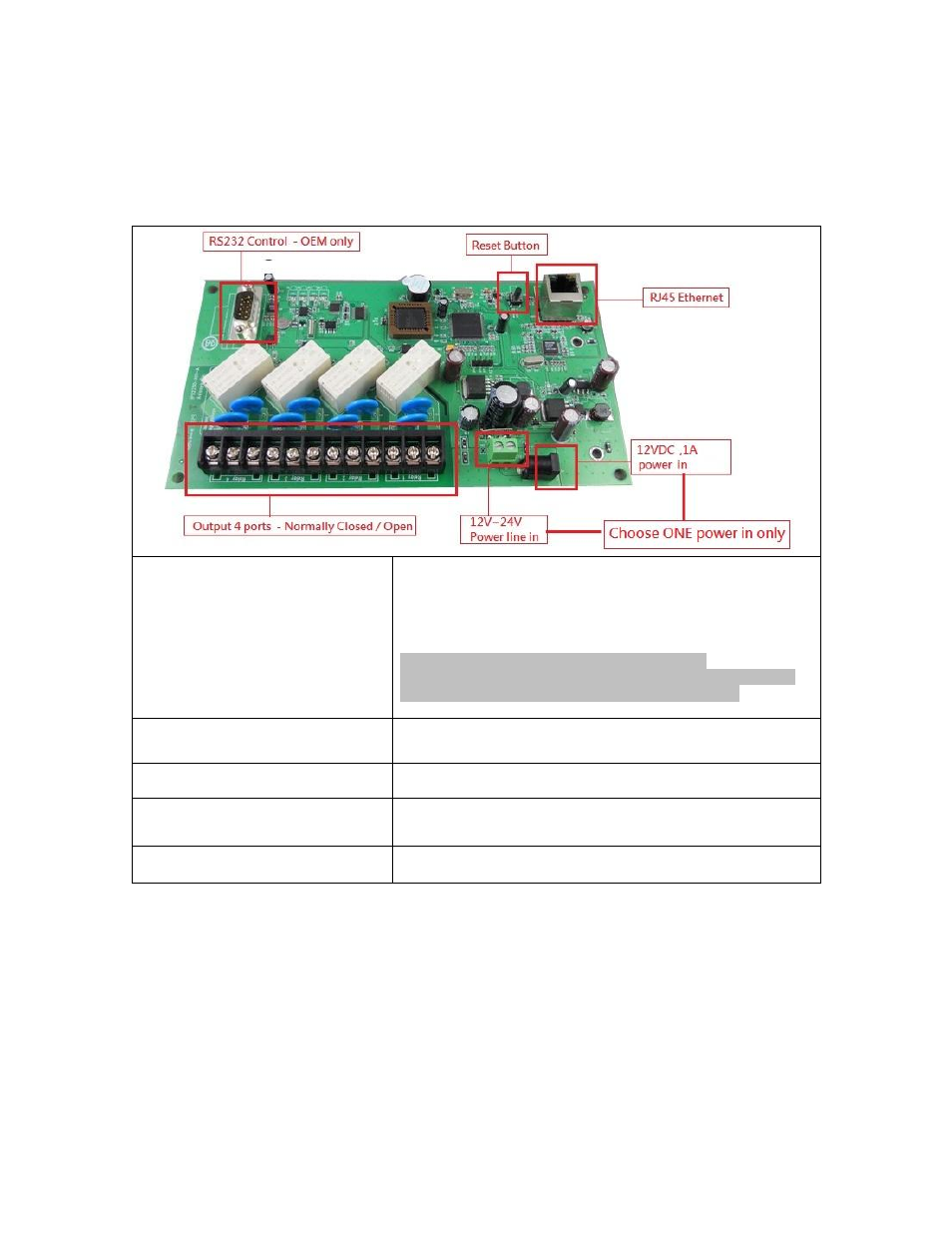

Hardware Interface
Power input
Spec : 12VDC~24VDC ,1 Amp
* Green terminal power line in.
OR
* Black power jack for adaptor.
Notice : User can only select one power input .
The board will be damaged if supply 2 power in which
Way is misused and out of warranty support.
Output
4 ports Power Control. Can connect as Normally Closed (NC) or
Normally Open (NO) Power ports
RS232 Port:
Option : BY OEM inquire.
RESET
Hold down for 10 seconds until you hear a long beep revert to
manufacturer default.
RJ45 Ethernet:
Plug in the RJ45 Ethernet cable to the Ethernet port
