8.9

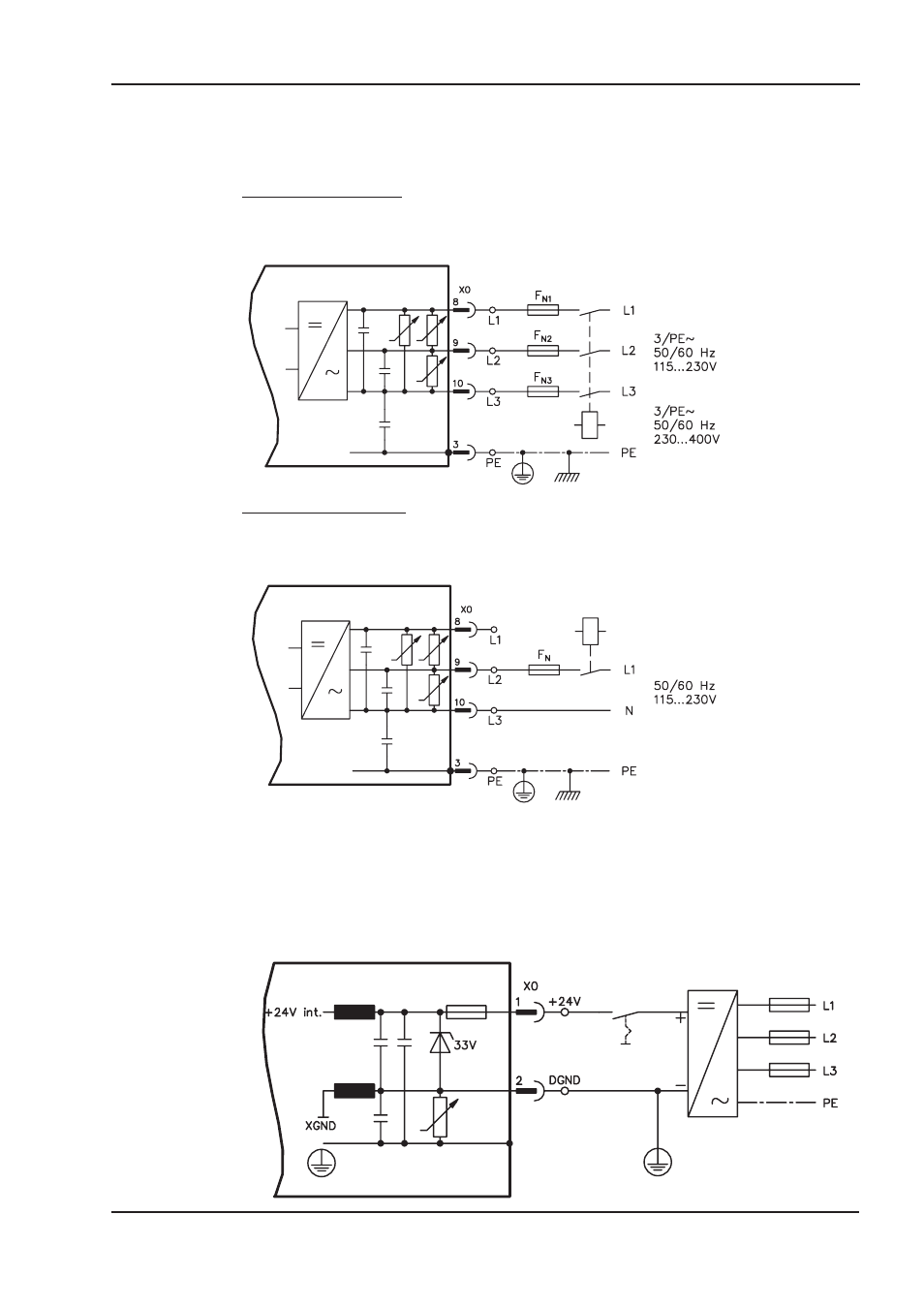

Power supply, master only
8.9.1
Mains supply connection (X0)
Three-phase supplies
Directly to earthed supply, filter is integrated, fusing (e.g. fusible cut-outs) to be provided
by the user (
ð p.19).
Single-phase supplies
Directly to supply, filter is integrated, fusing (e.g. fusible cut-outs) to be provided by the
user (
ð p.19).
8.9.2
24V auxiliary voltage (X0)
—
Electrically isolated supply from an external 24 V DC PSU, e.g. with isolating
transformer
—
Required current rating (
ð p.19)
Observe summarized current and voltage drop!
—
Integrated EMC filter for the 24 V auxiliary supply
AX2500 Product Manual
47
BECKHOFF
06/2007
Electrical Installation
AX2500
for AX250x
for AX251x
AX2500
for AX250x
AX2500
