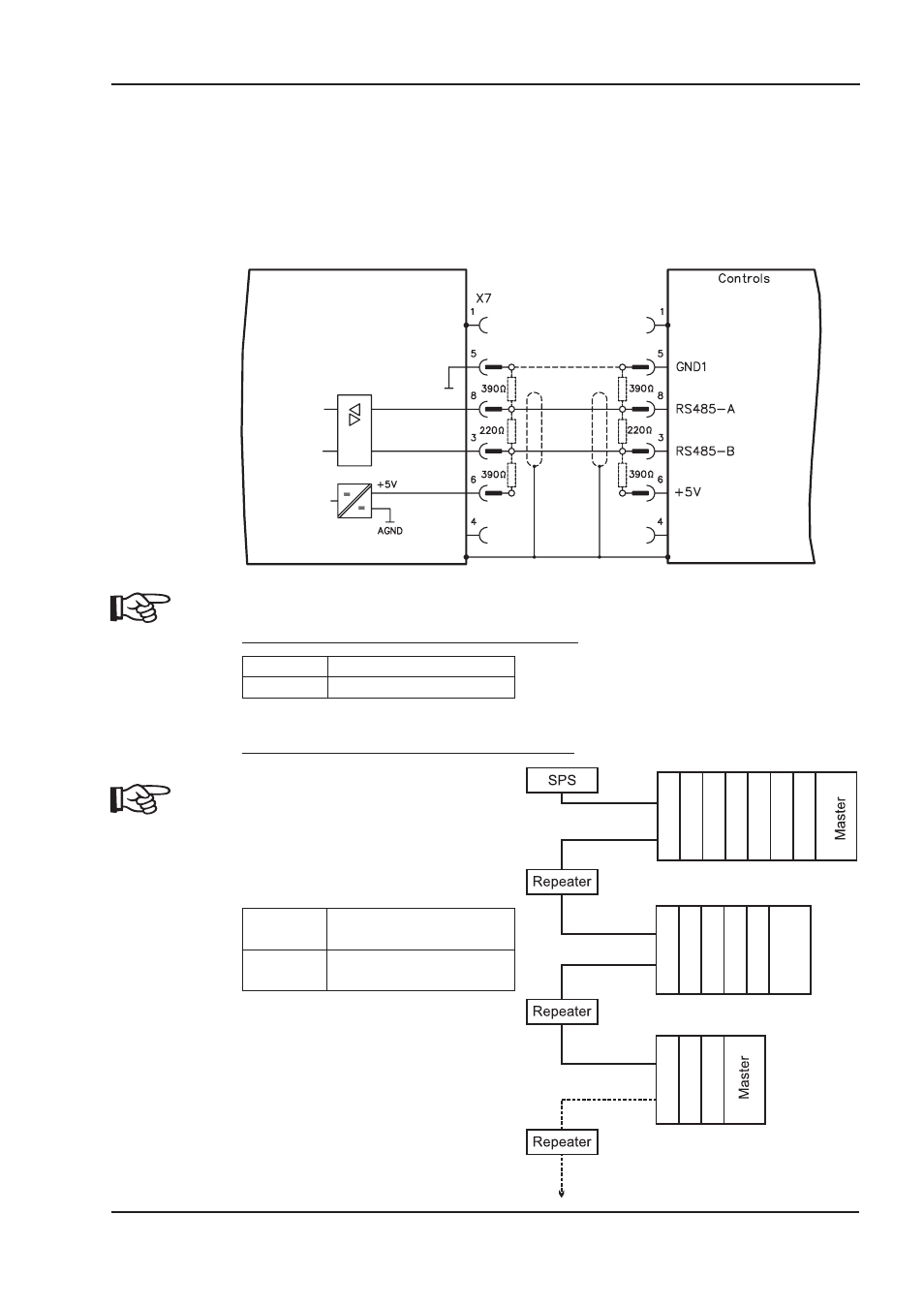

8.18.2 PROFIBUS interface (X7), option
This section describes the PROFIBUS interface for AX2500.
Information on the range of functions and the software protocol can be found in the man-
ual “Communication profile PROFIBUS-DP”.
The selection of cables, cable routing, shielding, bus connectors, bus termination and
propagation times are described in the “Setup guidelines for PROFIBUS-DP/FMS” from
PNO, the PROFIBUS User Organization.
Use only identical cable types of one manufacturer.
Recommendations for 1.5 MBit/s and 3 MBit/s
1.5 MBit/s max 32 axes per segment
3 MBit/s
max 32 axes per segment
Recommendations for 6 MBit/s and 12 MBit/s
For long-term reliability of the system
with 6 MBit/s and 12 MBit/s we
recommend to connect the segments
with repeaters and to use one
AX2500-Master per segment only
(see example).
6 MBit/s
max 8 axes(1 master) per
segment
12 MBit/s
max 8 axes(1 master) per
segment
