8.13.1

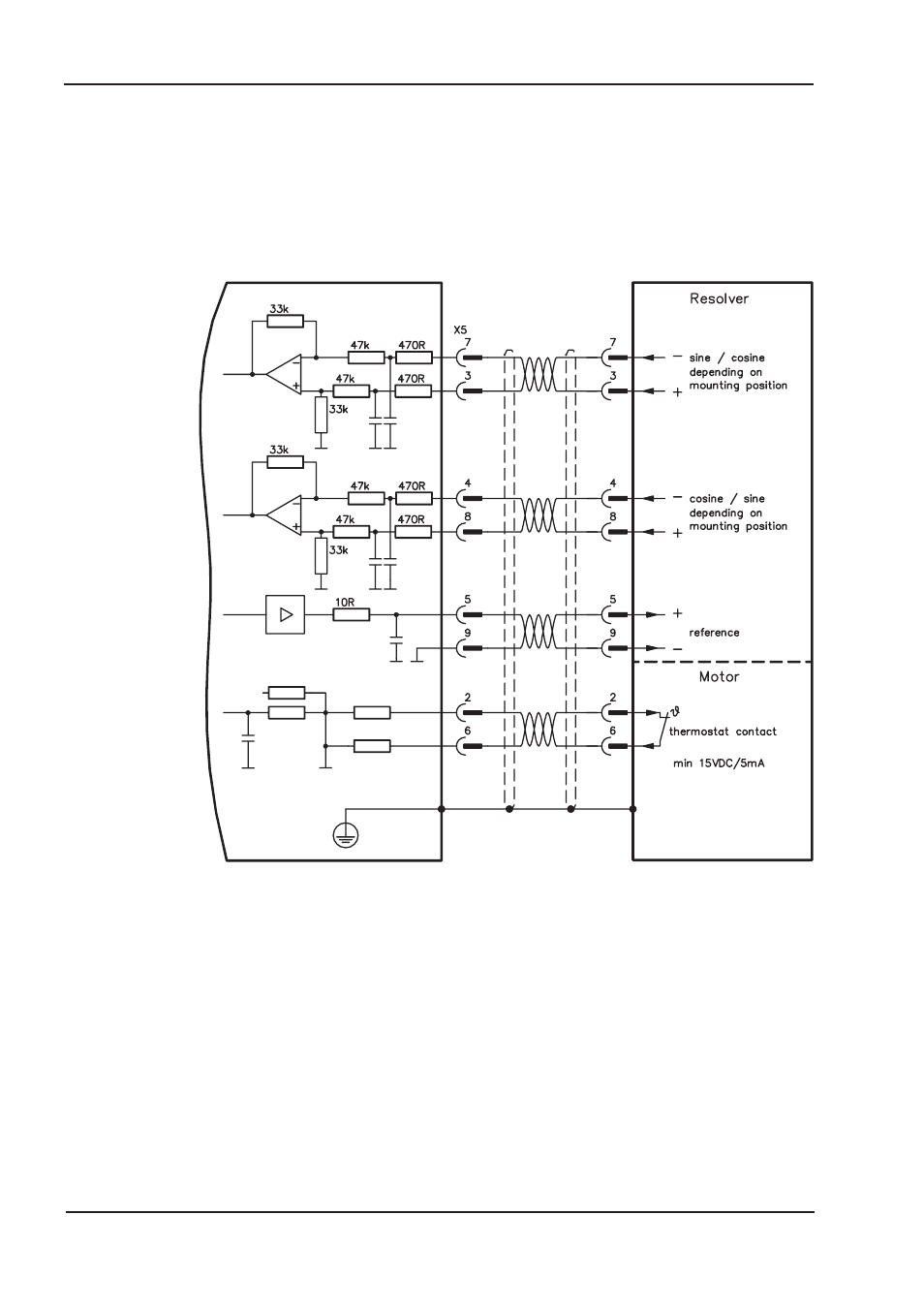

Resolver (X5)
Connection of a Resolver (2 to 36-poles) as a feedback system. The thermostat contact
in the motor is connected via the resolver cable to the AX2500 and evaluated there.
If lead lengths of more than 25 m are planned, please consult our customer support.
FBTYPE: 0, 3
50
AX2500 Product Manual
Electrical Installation
06/2007
BECKHOFF
AX2500
SubD9
12-pin round
