7 COUNTER PARAMETERS
Data Type Range read/write Secured DDE Proc/par
7.1 C
OUNTER VALUE
float 0…10000000 RW N 122 104/1
Actual counter value in units selected at Counter unit. Value is a float in IEEE-754 32-bits single precision notation.
7.2 C
OUNTER MODE
Unsigned char 0…2 RW N 130 104/8
Available counter modes for device:
Default value = 0.
Value Description
0 Off
1 counting upwards continuously
2 counting up to limit (batch counter)
7.3 C
OUNTER SETPOINT MODE
Unsigned char 0…1 RW N 126 104/5
Setpoint change enable during counter limit/batch situation (until reset). Default = 0.
Value Description
0 no setpoint change at batch limit allowed
1 setpoint change at batch limit allowed

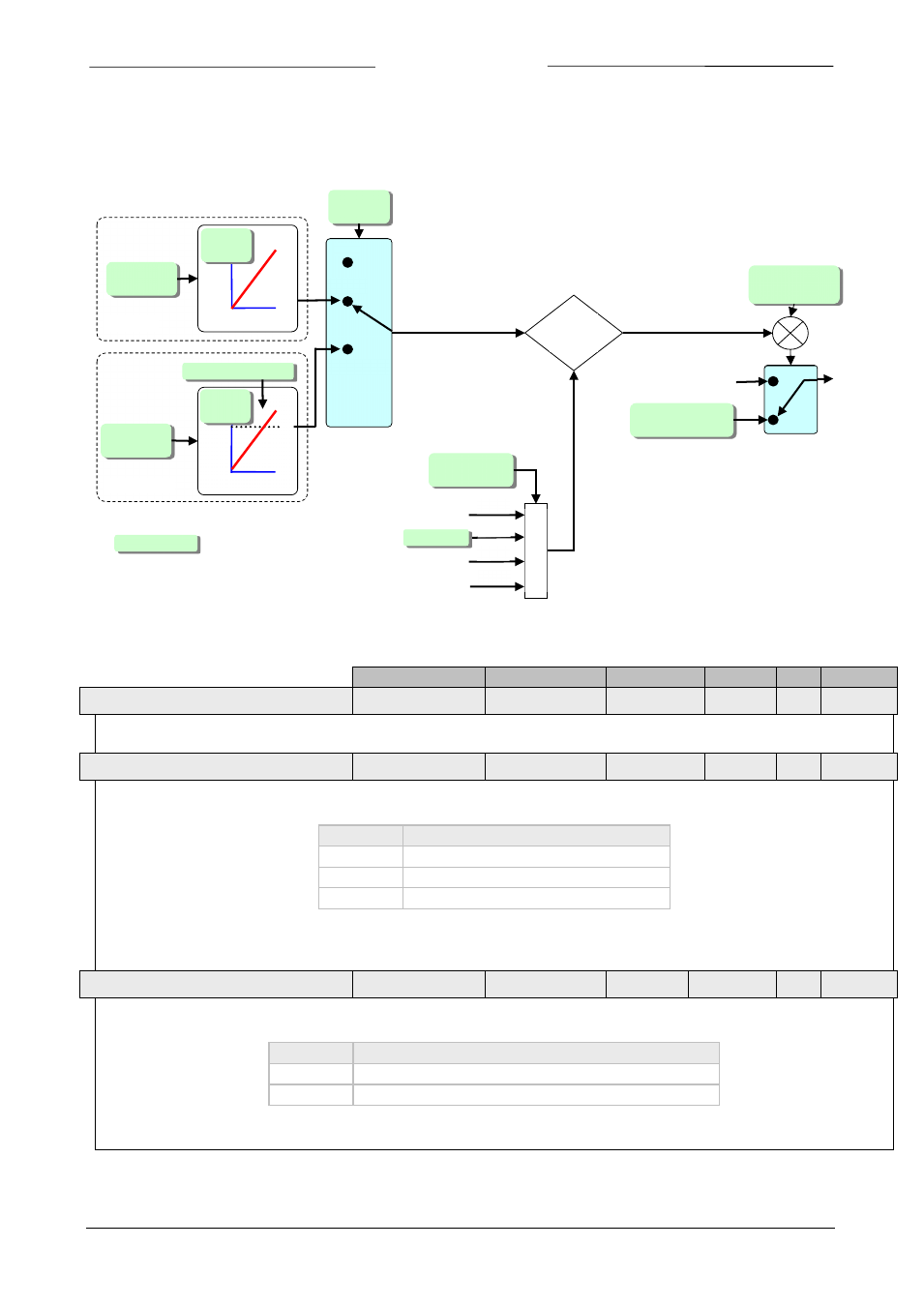

Counter
mode 0..2
Counter new
setpoint 0…32000
Counter setpoint
mode 0,1
Reset counter
enable 0..15
time
Measure
0…32000
time
Counter limit
Measure
0…32000
Off
Old Setpoint
Setpoint
Automatic
External
Keyboard/
Micro-switch
Reset
counter
& Reset
UP to limit
UP
bit[0]
bit[1]
bit[2]
bit[3]
Up
Up to limit
Parameter
Counter
value
Counter
value
