Hardware Installation
USB Ports
USB allows data exchange between your computer and a wide range of simulta-
neously accessible external Plug and Play peripherals.
The system board is equipped with 4 onboard USB 2.0/1.1 ports. The two 10-pin
connectors allow you to connect 4 additional USB 2.0/1.1 ports. The additional
USB ports may be mounted on a card-edge bracket. Install the card-edge bracket
to an available slot at the rear of the system chassis then insert the USB port
cables to a connector.
BIOS Setting
Configure the onboard USB in the Integrated Peripherals submenu (“USB Device
Setting” section) of the BIOS. Refer to chapter 3 for more information.
Driver Installation
You may need to install the proper drivers in your operating system to use the
USB device. Refer to your operating system’s manual or documentation for more
information.

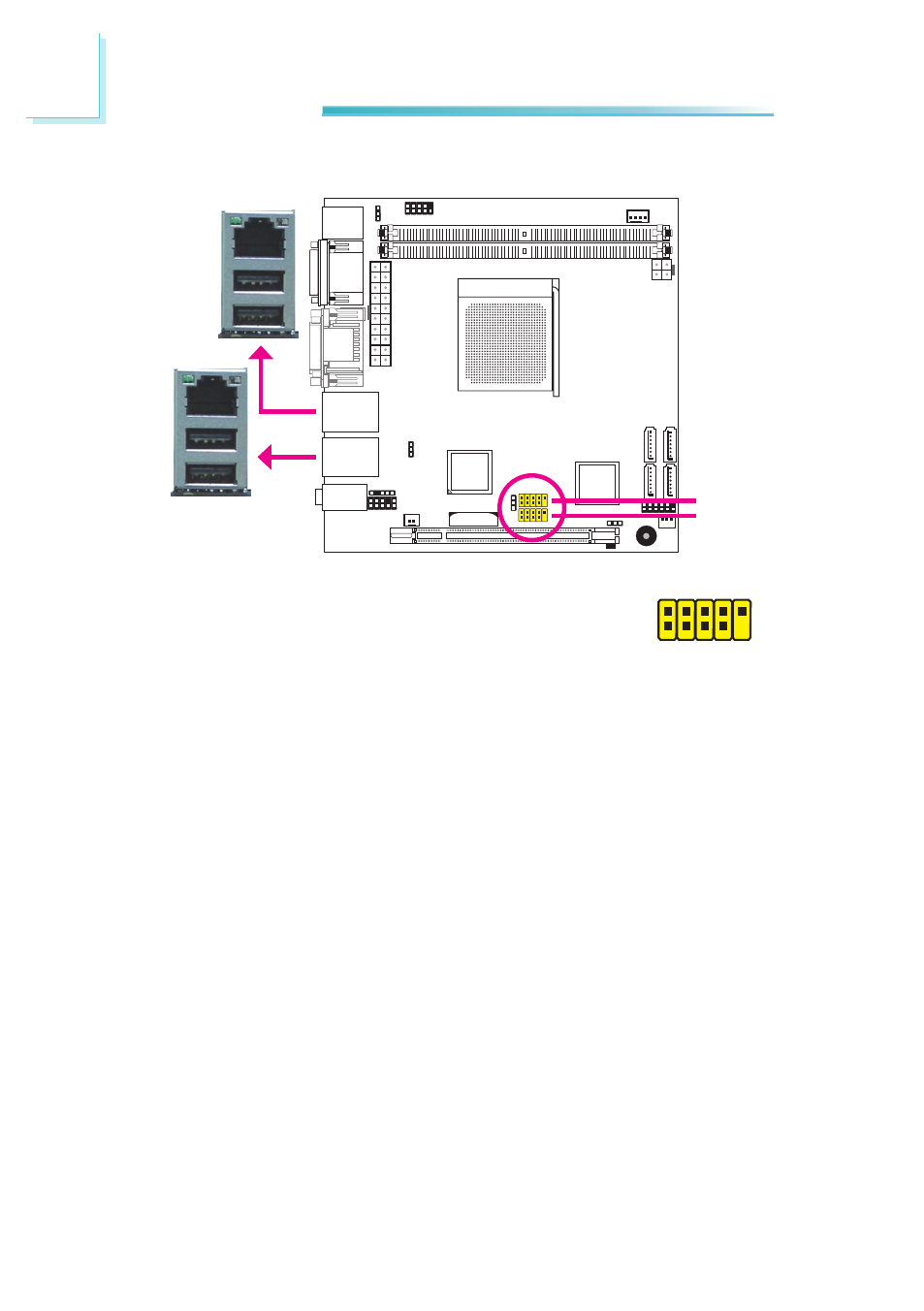

USB 0
USB 1
1
VCC
-Data
+Data
GND
K
ey
VCC
-Data
+Data
GND
N.
C.
2
10
9
USB 6-7
USB 3
USB 4
USB 9-10
