35
2
Hardware Installation

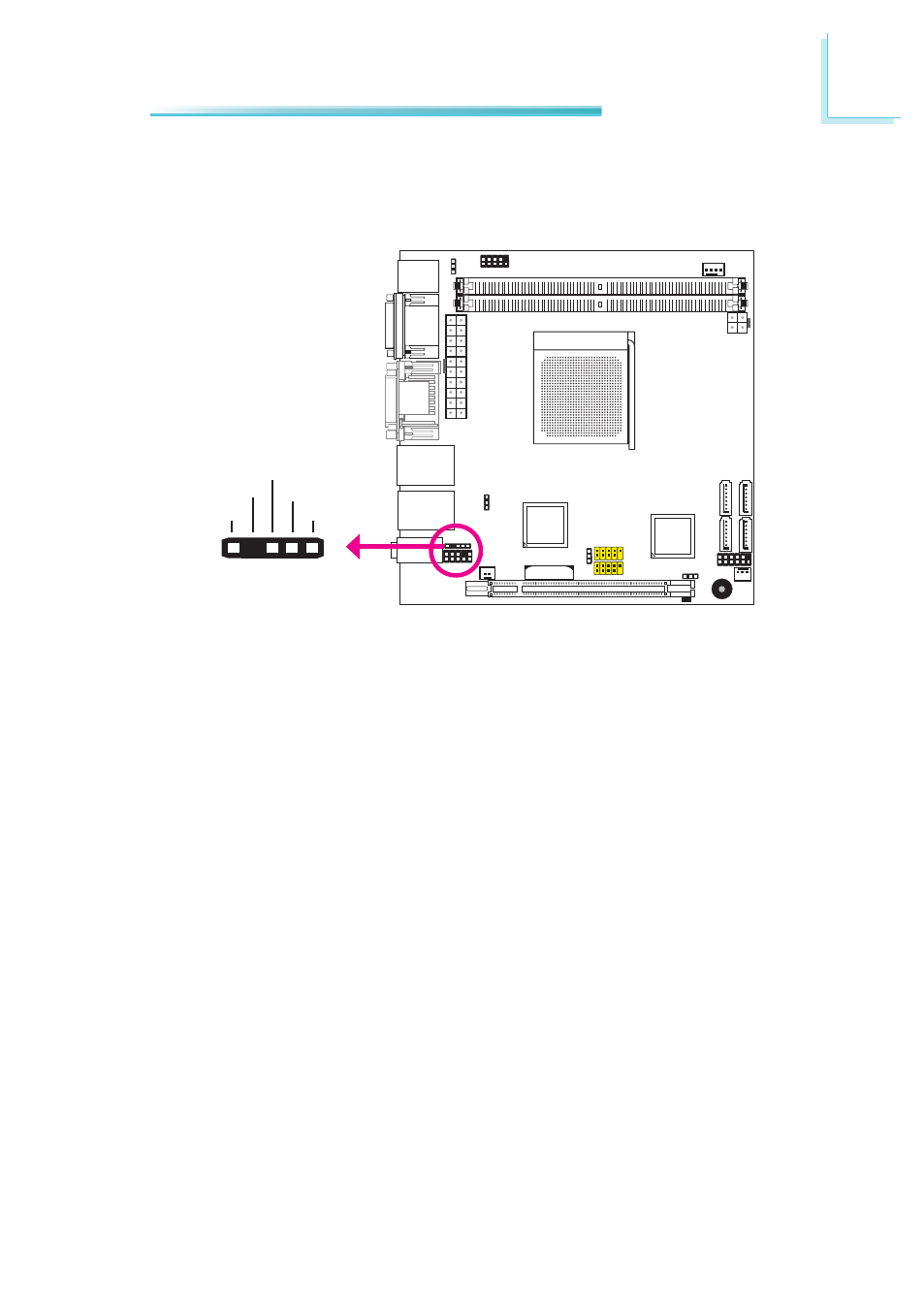

S/PDIF-out Connector
The S/PDIF-out connector is used to connect an external S/PDIF port. Your
S/PDIF port may be mounted on a card-edge bracket. Install the card-edge
bracket to an available slot at the rear of the system chassis then connect
the audio cable to the S/PDIF connector. Make sure pin 1 of the audio cable is
aligned with pin 1 of the S/PDIF connector.
I/O Connectors
1
5
+5V
Key
SPDIF out
Ground
N. C.
