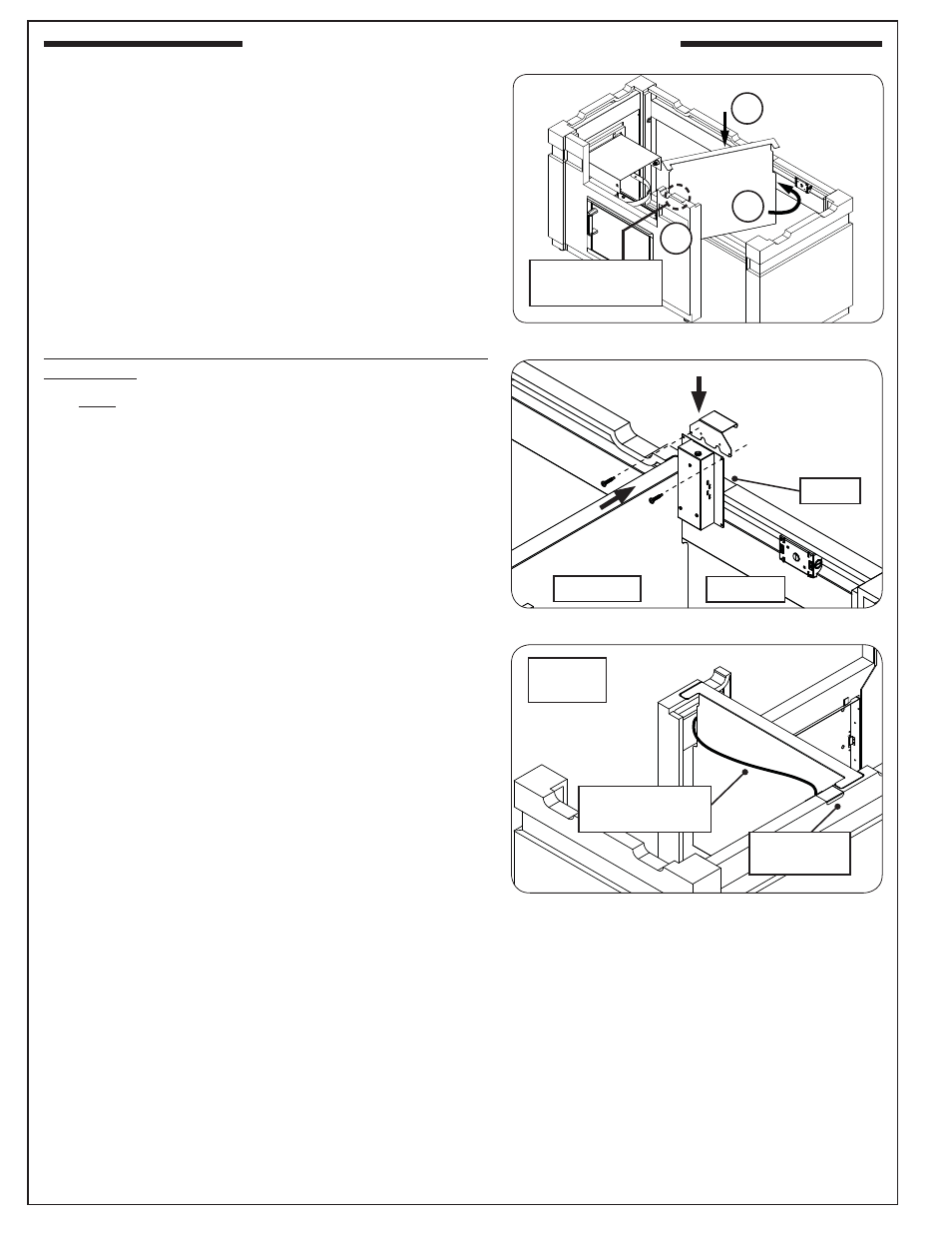

ASSEMBLY AND INSTALLATION (Cont.)
Place Heat Shield
Place the heat shield as shown in Fig. 10-1. It will need to
be inserted at an angle to clear the island (A). Then turn it
(within the island slots) until it is perpendicular with the front
and rear walls (B). Locate the heat shield in place by using
the grooves found on the top of the front and rear walls (C).
Install Power Supply Box
A power supply box is included with your grill and requires
installation.
CAUTION: Refer to the grill owner's manual for all safety
information regarding the power supply box.
A bracket is provided for installation in this island. Follow the
steps below.
1. First place the power supply box bracket over the rear
wall, in the groove just to the right of the heat shield
(see Fig. 10-2).
2. Align the pilot holes on the power supply box with the
holes on the bracket, then insert the two Phillips screws
and tighten with the power drill and #2 Phillips driver
(see Fig. 10-2). DO NOT OVERTIGHTEN.
Note: Power supply box design may vary.
3. Once the box is installed, route the box wire along the heat
shield and into the grill area (for future grill installation).
See Fig 10-3.
Fig. 10-2 Install power supply box
Fig. 10-3 Route power supply box wire
Fig. 10-1 Place heat shield
A
B
Grooves on front
and rear walls
C
(rear wall)
(heat shield)
A. Place bracket
over rear wall
B. Align box
C. Install screws
Route power
supply box wire
(power supply
box bracket)
Groove
(Rear view
of island)
