ASSEMBLY AND INSTALLATION - OVERVIEW
CAUTION: Island components are heavy. CAREFULLY handle all components during assembly.

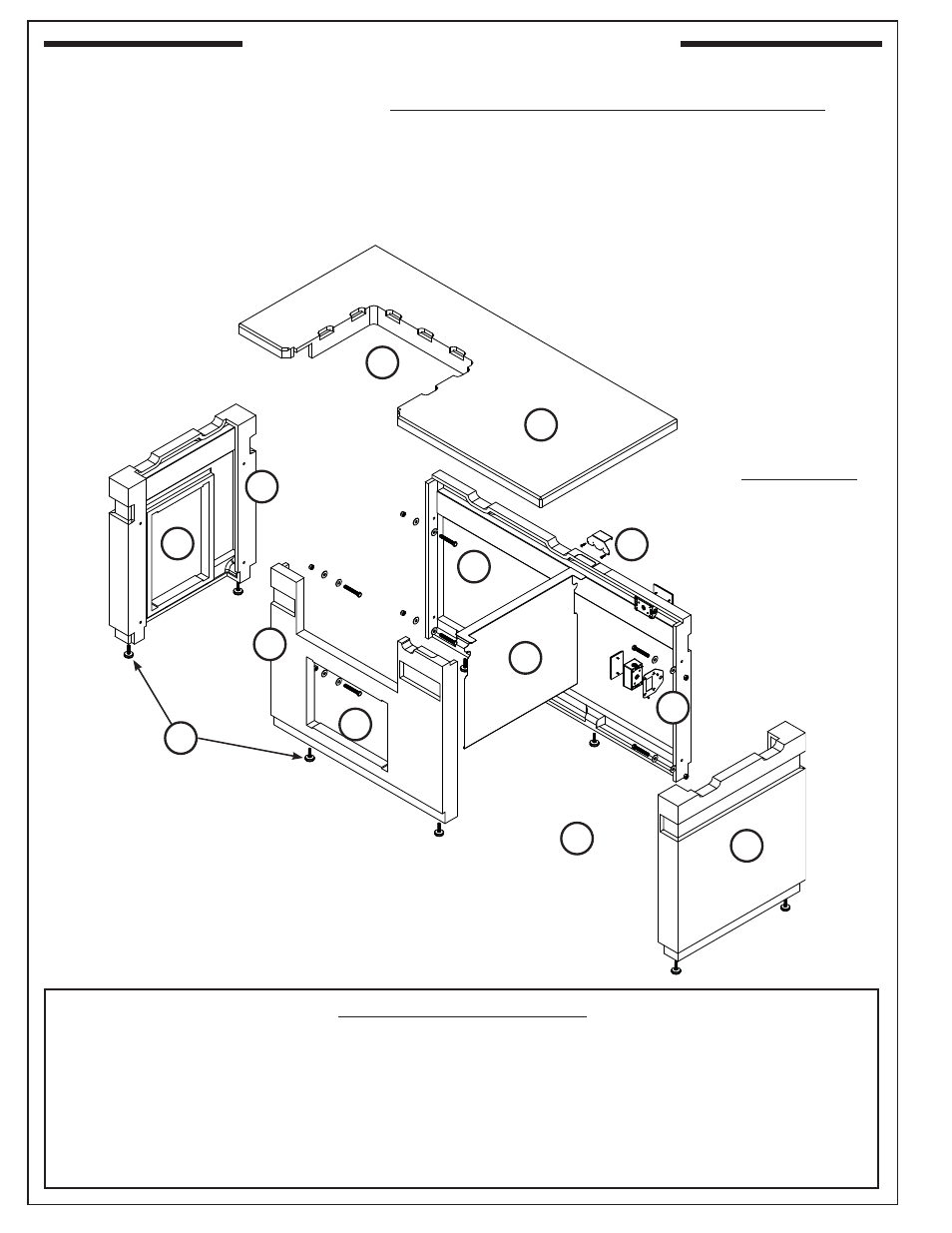

• Fig. 6-1 provides an overall orientation and bolt assembly detail for the island.
(DC430 model shown. Assembly may slightly vary depending on island selected.)
• The DC790 assembles in the same manner.
• The DC790 has the addition of a double sideburner, which is addressed in the following step-by-step section.
• This section is just an overview, refer to the following step-by-step section for complete assembly (and grill/
accessory installation) details.
Fig. 6-1
Overall Orientation
DC430 model
shown
2
4
3
1
ASSEMBLY AND INSTALLATION (Cont.)
1. Attach levelers
2. Assemble rear & left wall
3. Assemble right wall &
install outlet box
4. Assemble front wall
5. Adjust levelers to level top
surfaces of unit evenly, ensure
unit is square, then fully tighten
all bolts (not shown)
6. Install electrical (not shown)
7. Install drawer and/or door(s)
8. Place heat shield
9. Install power supply box
(only bracket shown)
10. Install refrigerator
11. Place countertop
12. Install grill
13. Install double sideburner
(if applicable, not shown)
ASSEMBLY / INSTALL OVERVIEW
2
(Attach all)
3
ONLY HAND TIGHTEN
BOLTS DURING
STEPS 2 - 4!
FULLY TIGHTEN
DURING STEP 5.
7
7
8
9
10
11
12
