Network
Connect a Cat5 or Cat5e cable with an RJ45 connector between the Local Area Network (LAN) and the
VoIP PCBA.

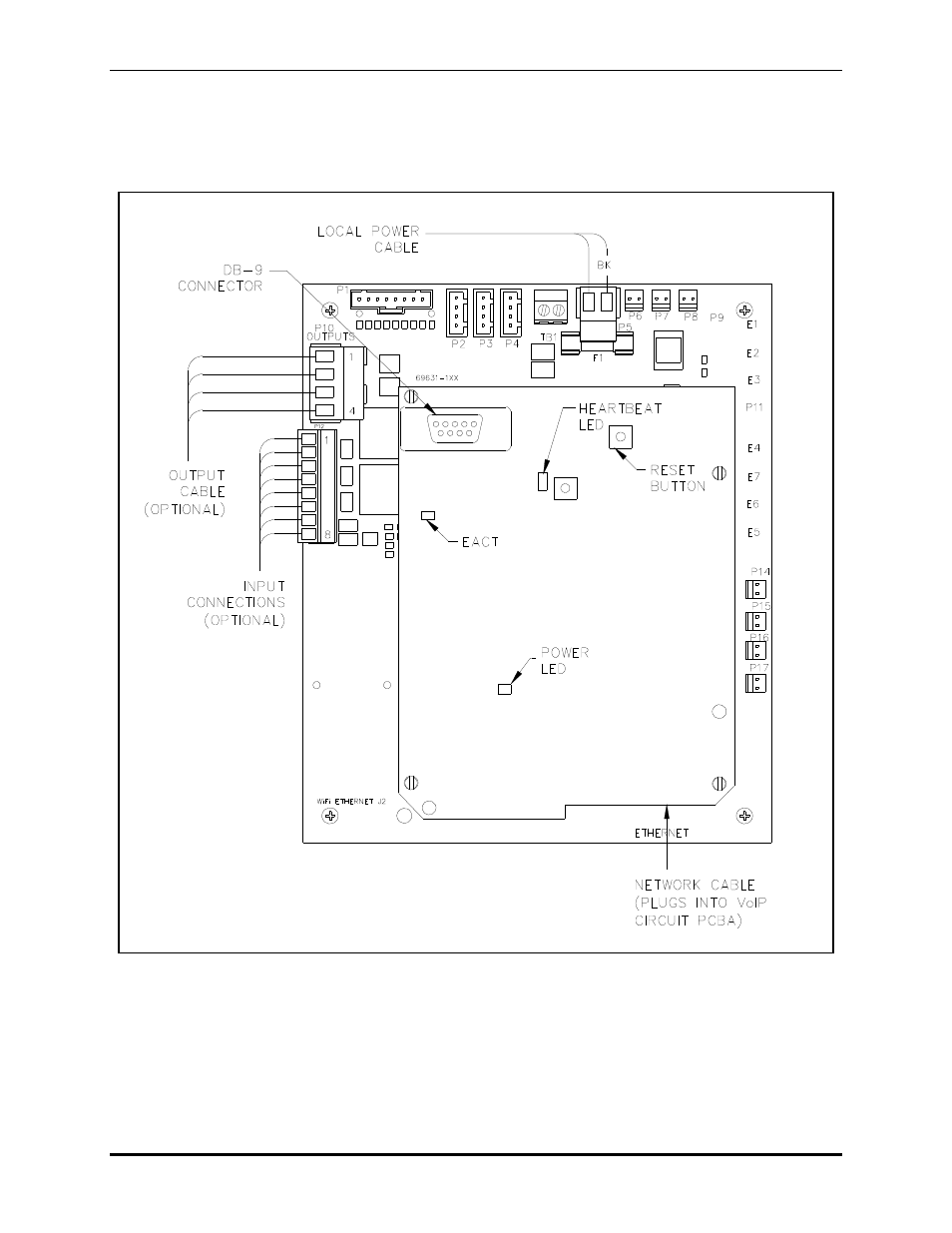

Figure 12. VoIP Telephone PCB Assembly
