Step 6: Secure Hood and Birdscreen
(sizes 54-72 only)
Hardware Required:
Hardware Package #816528
#12 x 3/4” Self-drilling Screws with Washers
Quantity: 4 pieces. (2) required per hood, (2) extras
Instructions:
A) With birdscreen and hood installed, locate the birdscreen clips (5 per hood end panel).
Loosen the fasteners and rotate them 90° so that they support the birdscreen. Retighten
fasteners.
B) Locate the center birdscreen clip on each hood end panel. Push hood end panel against
birdscreen. Install the #12 x 3/4” self-drilling screw with washer (1 per end panel) thru
birdscreen clip into birdscreen frame. (See Detail 6).

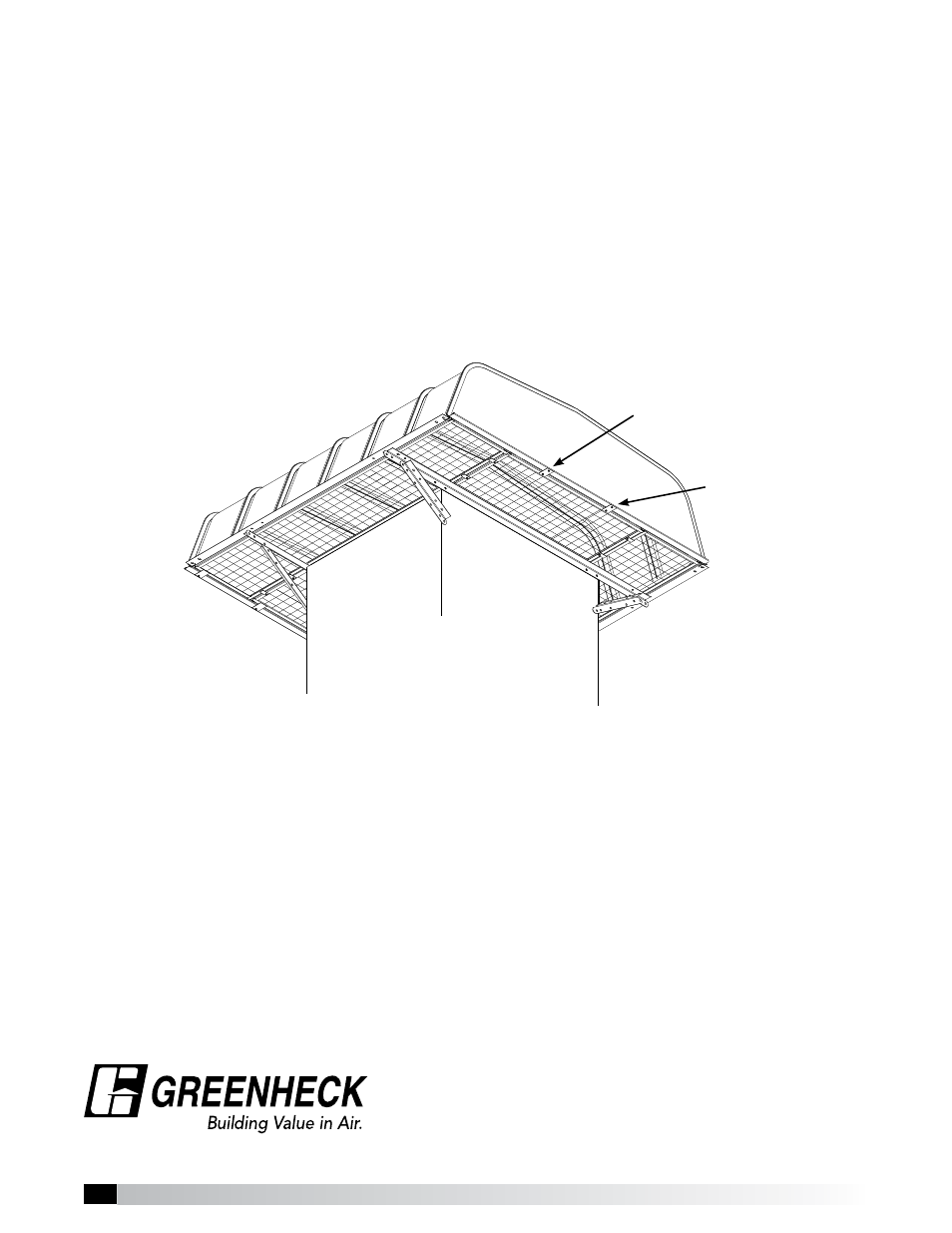

Detail 6
#12 x 3/4”
Self-drilling
Screw
Hood Clip
(5) Per End Panel
(Sizes 54 x 72)
