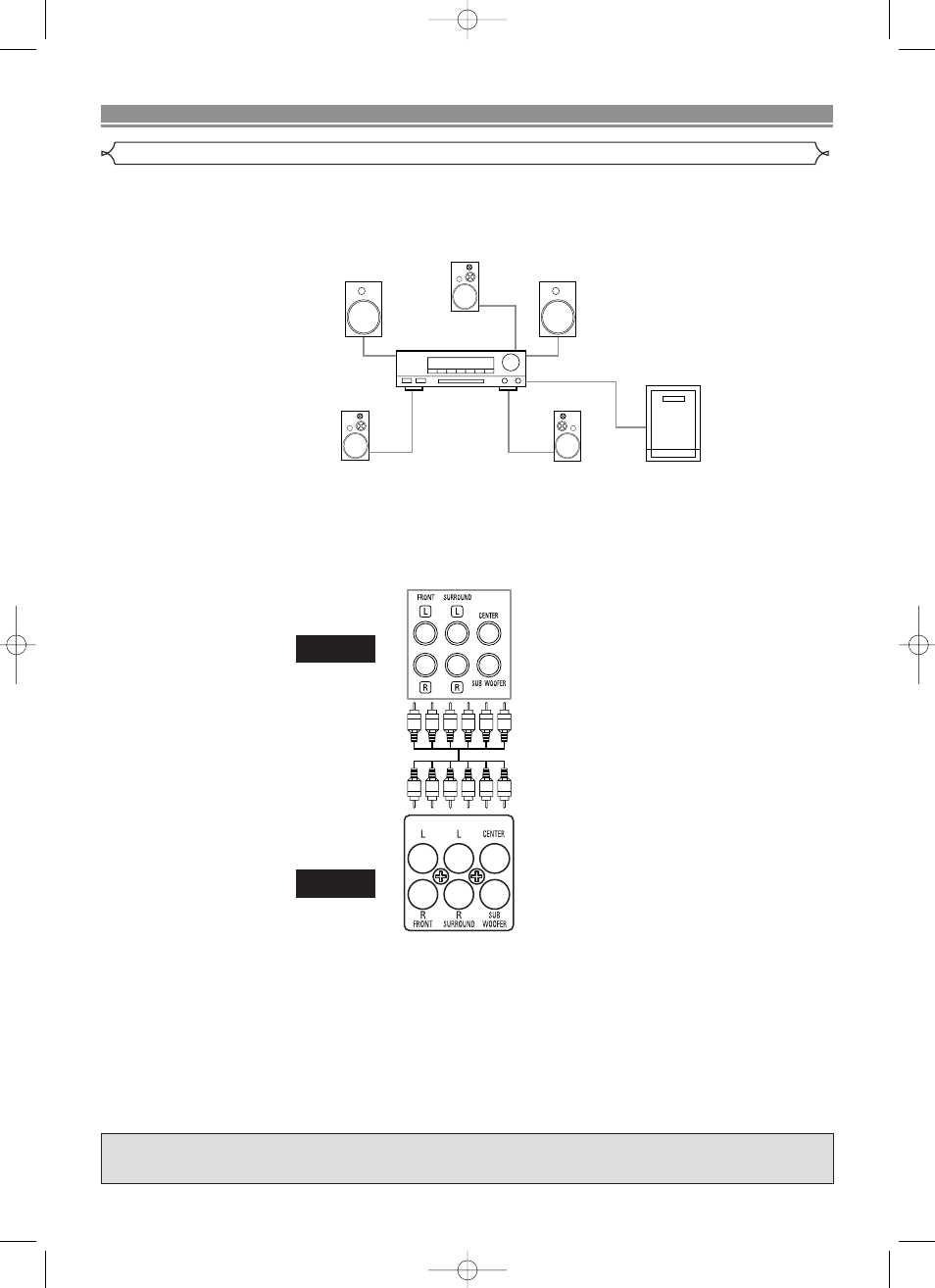

Connection to 5.1-channel Surround Sound System
Analog 5.1-channel audio signals can be output from the DVD player.
The multichannel audio signals recorded in packed PCM can be played back when an AV amplifier equipped
with analog 5.1-channel audio inputs is connected.
5.1CH AUDIO OUT
AUDIO
DVD
To 5.1CH
Audio Input
Jacks
AV amplifier
with
5.1-channel
input jacks
5.1CH
AUDIO
OUT
Front speaker
(left)
Surround
speaker
(left)
Center speaker
Subwoofer
Surround
speaker
(right)
Front speaker
(right)
Audio Cable
(commercially
available)
NOTES:
• For 5.1-channel connections, set “ANALOG AUDIO” to “5.1CH” in the setup mode and adjust “SPEAKER SIZE”, “DELAY
TIME” and “BALANCE” settings (refer to pages 29-30).
• You can enjoy high-quality analog sound by cutting off analog video signals. Press the AUDIO EX. button on the front panel.
• When using the HDMI connection, signals from the 5.1CH AUDIO OUT jacks can be limited in some cases. If it occurs, set
“HDMI AUDIO” to “OFF” to output the signals (refer to pages 28-29).
