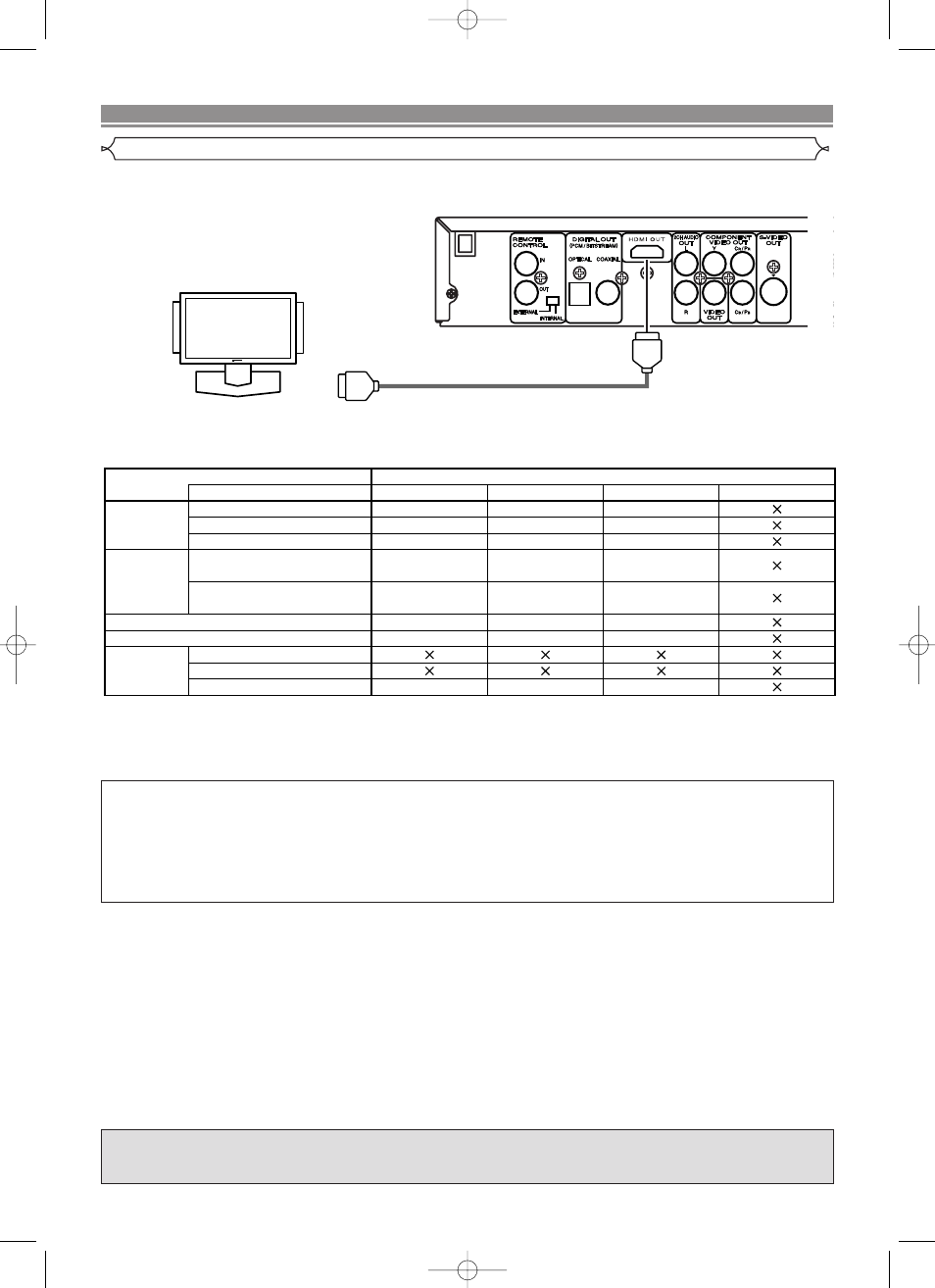

Connection to a TV with an HDMI Terminal
CONNECTIONS
A simple 1-cable connection (using a commercially available cable) with a device having an HDMI (High-
Definition Multimedia Interface) terminal allows digital transfer of the digital images of DVD-Video and other
sources, DVD-Video, and the multi-channel sound of DVD-Audio.
To HDMI Input
Terminal
A display equipment with an HDMI terminal
HDMI Cable
(commercially available)
NOTES:
• When using an HDCP-incompatible display equipment, the image will not be viewed properly.
• Some devices that support HDMI can control other devices via the HDMI terminal; however, this player cannot be controlled
by another device via the HDMI terminal.
• The audio signals from the HDMI terminal (including the sampling frequency, the number of channels and bit length) may
be limited depending on the disc or the connected equipment.
• When playing a Super Audio CD with an HDMI connection, audio signals cannot be transferred beyond the CD AREA.
Make an analog connection for this.
• The HDMI AUDIO setting cannot be changed when the connected device is not compatible with HDMI audio, or no device
compatible with HDMI audio is connected to this player.
• Even when the connected device is compatible with HDMI audio, the HDMI AUDIO setting is not possible if the power of the
device is turned off or the HDMI output mode is set to “hdOFF”.
Copyright protection system
To play back the digital video images of a DVD via an HDMI connection, it is necessary that both the player and the display
equipment (or an AV amplifier) support a copyright protection system called HDCP (High-bandwidth Digital Content
Protection). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV
equipment.
This player supports HDCP. Please read the operating instructions of your display equipment (or AV amplifier) for more
information.
Audio Recording Format AUTO MULTI PCM 2CH PCM OFF
Dolby Digital Dolby Digital*3 Multi PCM*5 2channel PCM
DTS DTS*4 Multi PCM*5 2channel PCM
DVD-Video/
DVD-RW
LPCM Multi PCM*5 Multi PCM*5 2channel PCM
LPCM or PPCM
Multi PCM*5 Multi PCM*5 2channel PCM
(with CPPM) *1
DVD-Audio
LPCM or PPCM
Multi PCM*5 Multi PCM*5 2channel PCM
(without CPPM)
Audio CD/Video CD 2channel PCM 2channel PCM 2channel PCM
MP3/WMA/DivX ® 2channel PCM 2channel PCM 2channel PCM
MULTI-CH AREA *2 Super
2CH AREA *2 Audio
CD AREA 2channel PCM 2channel PCM 2channel PCM CD
*1 If the connected equipment is compatible with HDMI ver. 1.0, audio signals are not output. Even if the connected equipment is compatible with
HDMI ver. 1.1, audio signals are not output if the equipment is not compatible with CPPM.
*2 Sounds recorded on the MULTI-CH/2CH AREA of Super Audio CDs are not output.
*3 If the connected equipment is not compatible with Dolby Digital, audio signals are output as Multi PCM or 2 channel PCM.
*4 If the connected equipment is not compatible with DTS, audio signals are output as Multi PCM or 2 channel PCM.
*5 If the connected equipment is not compatible with Multi PCM, audio signals are output as 2 channel PCM.
HDMI AUDIO Setting
C Actual output modes by media (when the connected equipment is compatible with Dolby Digital, DTS,
and Multi PCM)
“HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.”
