– 15 – EN
English
• Method 1 DVD Player + TV with Video input jack
• Method 2 DVD Player + TV with S-Video input terminal
• Method 3 DVD Player + TV with Component Video input jacks
NOTES:
• Connect the DVD player directly to a TV. If the Audio/Video cables are connected to a VCR, pictures may be distorted due
to the copy protection system.
• S-Video output terminal
The video signals are divided into color (C) and brightness (Y) signals, achieving a clearer picture.
If the TV is equipped with an S-Video input terminal, we recommend connecting it to this unit’s S-Video output terminal
using a commercially available S-Video connection cord.
HOW TO CONNECT TO A TV WITHOUT AUDIO/VIDEO INPUT JACKS
If your TV does not have RCA type audio and video input jacks it is still possible to connect this DVD
player to your TV’s 75-ohm coaxial antenna terminal using an optional Stereo Audio/Video RF Modulator (not includ-
ed). Connect the audio and video outputs of the DVD player to the audio and video inputs on the RF Modulator, and
then connect the coaxial output of the RF Modulator (usually marked “TO TV”) to the 75 ohm coaxial antenna termi-
nal on your TV. Follow the instruction supplied with the RF Modulator for more details.
If your TV’s 75 ohm coaxial antenna terminal is already occupied by an antenna or cable box connection, remove that
cable from your TV’s antenna terminal and reconnect it to the coaxial antenna input terminal of the RF Modulator
(usually marked “ANT IN”), then connect the RF modulator to your TV’s antenna terminal as described above.
NOTE:
• The picture quality from DVD discs will not be as good if the DVD player is connected to the TV’s antenna terminal
through an RF Modulator.
CONNECTIONS

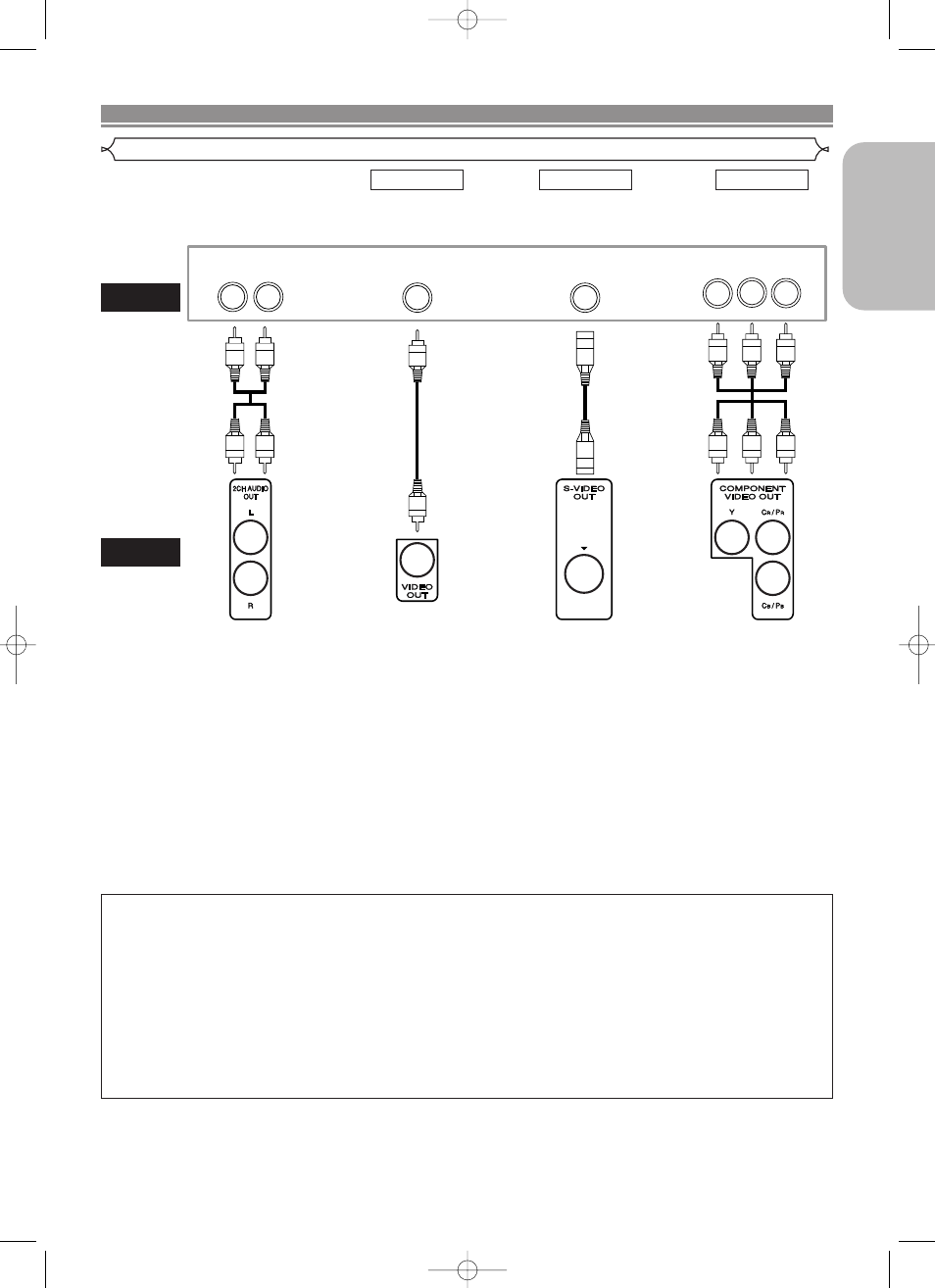

Connection to a TV (for Video)
S-VIDEO IN VIDEO IN L R C B/ P B Y C R/ P R
COMPONENT
VIDEO IN
DVD
TV
Good
Basic
Audio
Better
Best picture
Method 1 Method 2 Method 3
Video Cable
(supplied)
S-Video Cable
(commercially
available)
Component
Video Cable
(commercially
available)
AUDIO OUT
(Analog)
VIDEO OUT S-VIDEO OUT COMPONENT VIDEO OUT
Audio Cable
(supplied)
