5.System Setup and Operation
How to set picture in picture
VSP 1314 User Manual 56
How to set picture in picture
Make sure equipment normal operation. Detail please refer to: How to
make equipment normal operation

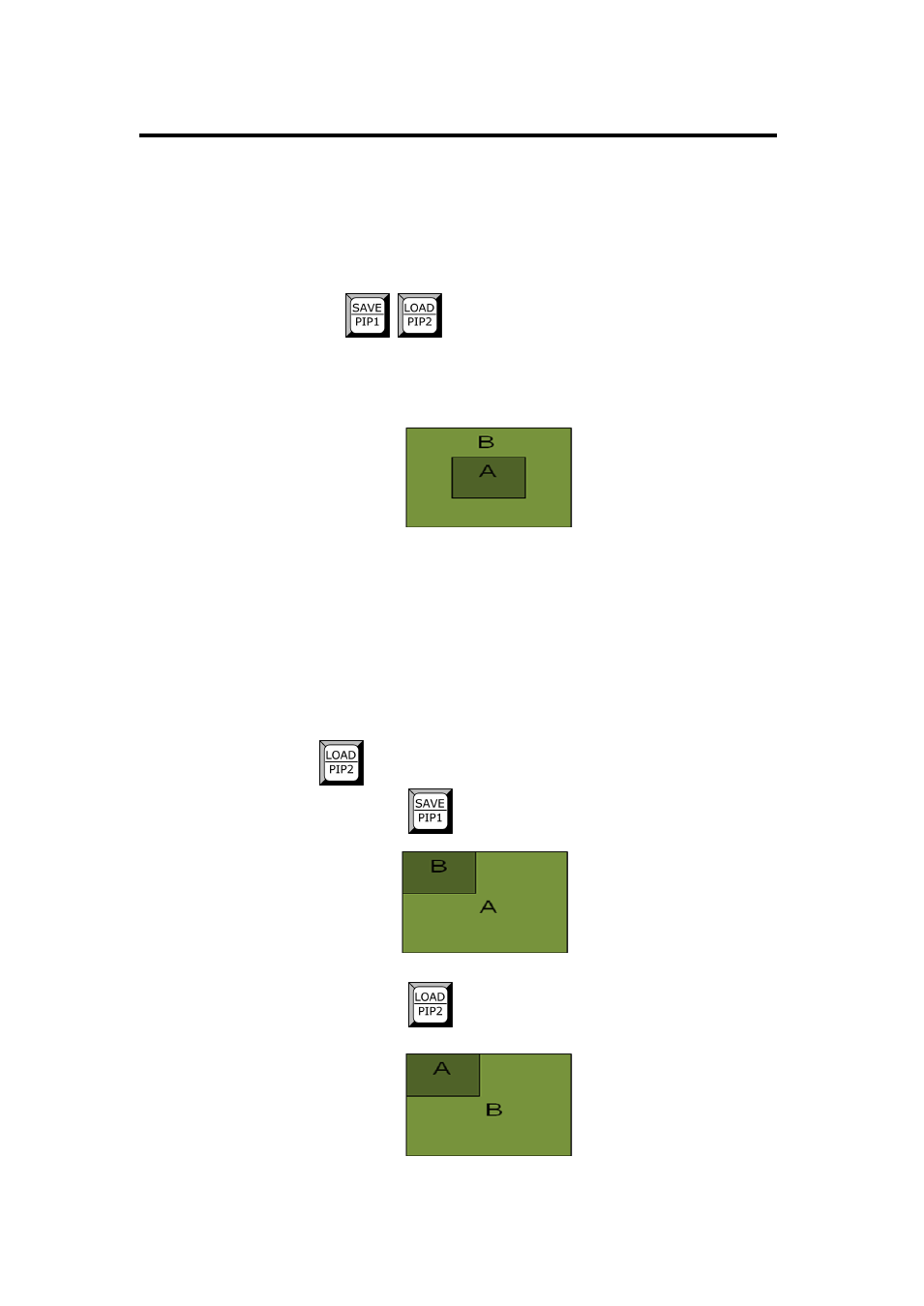

PIP Functional description:
Before press , make sure signal firstly;
Such as want set VGA1 as big picture, size is::960x672，and set DVI2 as
small picture, size is:384x384, position is:X-288,Y-144
Operation as following:
1. Set VGA1 as Preview output, scale to:960x672；
2. Press TAKE to switch VGA1 as Program output;
3. Set DVI2 as Preview output, scale to:384x384,and adjust position to：
X-288,Y-144；
4. Press ,and button light up red ;
5. PIP mode 1:Press and light up red as following:
6. PIP mode 2:Press and light up red, as following:
