TASCAM US-322/366
23

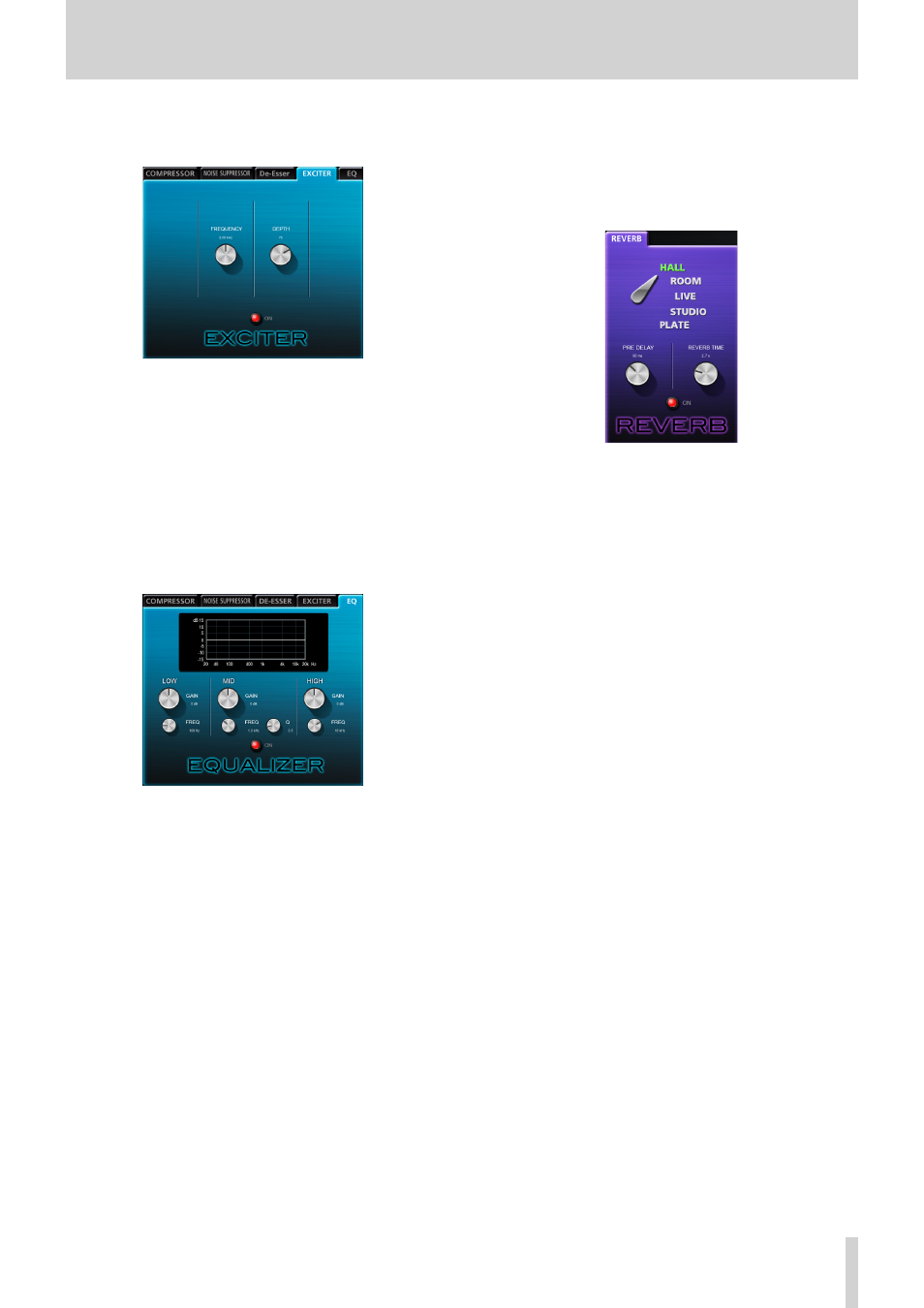

5 – Using the US-322/366 Mixer Panel
0 Exciter
This effect emphasizes high-frequency harmonics to add
clarity and sparkle while maintaining the original sound.
FREQUENCY: 1 to 4 kHz (default: 2.00 kHz)
Sets the frequency above which harmonics are empha-
sized.
DEPTH: 1 to 100 (default: 75)
Sets the amount that harmonics are emphasized. The
higher the value, the more they are emphasized.
0 Three-band parametric equalizer
This can be used to increase or decrease the levels of
specific frequency ranges. This can be used to enhance
the sound of individual instruments, to adjust the balance
of a wide frequency range and to cut specific unwanted
frequencies, for example.
The frequency response is shown even when the equalizer
is off. The equalizer has a high-shelf HIGH band, a low-shelf
LOW band and a peaking (bell-shaped) MID band.
HIGH GAIN: −12 to 12 dB (default: 0 dB)
Sets the amount the level is increased or decreased for
the high shelf.
HIGH FREQ: 1.7 to 18 kHz (default: 10 kHz)
Sets the cutoff frequency of the high self.
Mid GAIN: −12 to 12 dB (default: 0 dB)
Sets the amount the level is increased or decreased for
the mid peak.
Mid FREQ: 32 Hz to 18 kHz (default: 1.0 kHz)
Sets the center frequency of the peak.
Mid Q: 0.25 to 16 (default: 0.5)
Sets the acuteness of the peak. The higher the value
the narrower it becomes, making it effect a narrower
frequency band. The lower the value, the wider it
becomes, making it effect a broader frequency band.
Low GAIN: −12 to 12 dB (default: 0 dB)
Sets the amount the level is increased or decreased for
the low shelf.
Low FREQ: 32 Hz to 1.6 kHz (default: 100 Hz)
Sets the cutoff frequency of the low shelf.
Send effect
0 Reverb
This effect adds reverberations to the original sound by
adding multiple sounds delayed at various times with
damping over time that produces a sound that is as natural
as possible. Reverberations like those of a hall, live-music
club or a studio, for example, can be generated.
ROOM TYPE: HALL, ROOM, LIVE, STUDIO, PLATE
Select the type of reverb.
Depending on the setting, the density and level of the
reverb sound changes.
PRE DELAY: 0 to 250 ms (default: 90 ms)
Set the amount of time until the first reverberations. The
larger the value, the larger the reverberations make the
room sound.
REVERB TIME: 0.1 to 10 sec (default: 2.7 sec)
Set the amount of time that the reverberations continue.
The larger the value, the longer they continue.
