4.4 DIMENSIONS
Model
'A' Inside DIA
'B' Outside DIA
C' Maximum Rotating
Parts DIA
D' Maximum Height
614RBL
15.00" (381.0 mm)
21.10" (535.9 mm)
30.18" (766.6 mm)
18.31" (465.0 mm)
616RBL
17.00" (431.8 mm)
23.10" (586.7 mm)
32.25" (819.2 mm)
19.31" (490.4 mm)
620RBL
21.00" (533.4 mm)
27.10" (688.3 mm)
36.30" (919.5 mm)
21.31" (541.2 mm)
624RBL
25.00" (635.0 mm)
31.10" (789.9 mm)
40.62" (1031.7 mm)
23.31" (592.0 mm)
630RBL
31.00" (787.4 mm)
37.10" (942.3 mm)
46.67" (1185.4 mm)
26.31" (668.2 mm)
636RBL
37.00" (939.8 mm)
43.10" (1094.7 mm)
52.74" (1339.6 mm)
29.31" (744.4 mm)
642RBL
42.00" (1092.2 mm)
49.10" (1247.1mm)
58.72" (1491.5 mm)
32.31" (820.6 mm)
'B'
MAX HEIGHT
'D'
'A'
'C'
15.9
.63
139.4
5.49
84.1
3.31
WIDTH
195.3
7.69
MIN MAX
[46.5] [97.8]
1.83 3.85
SEVER
LINE

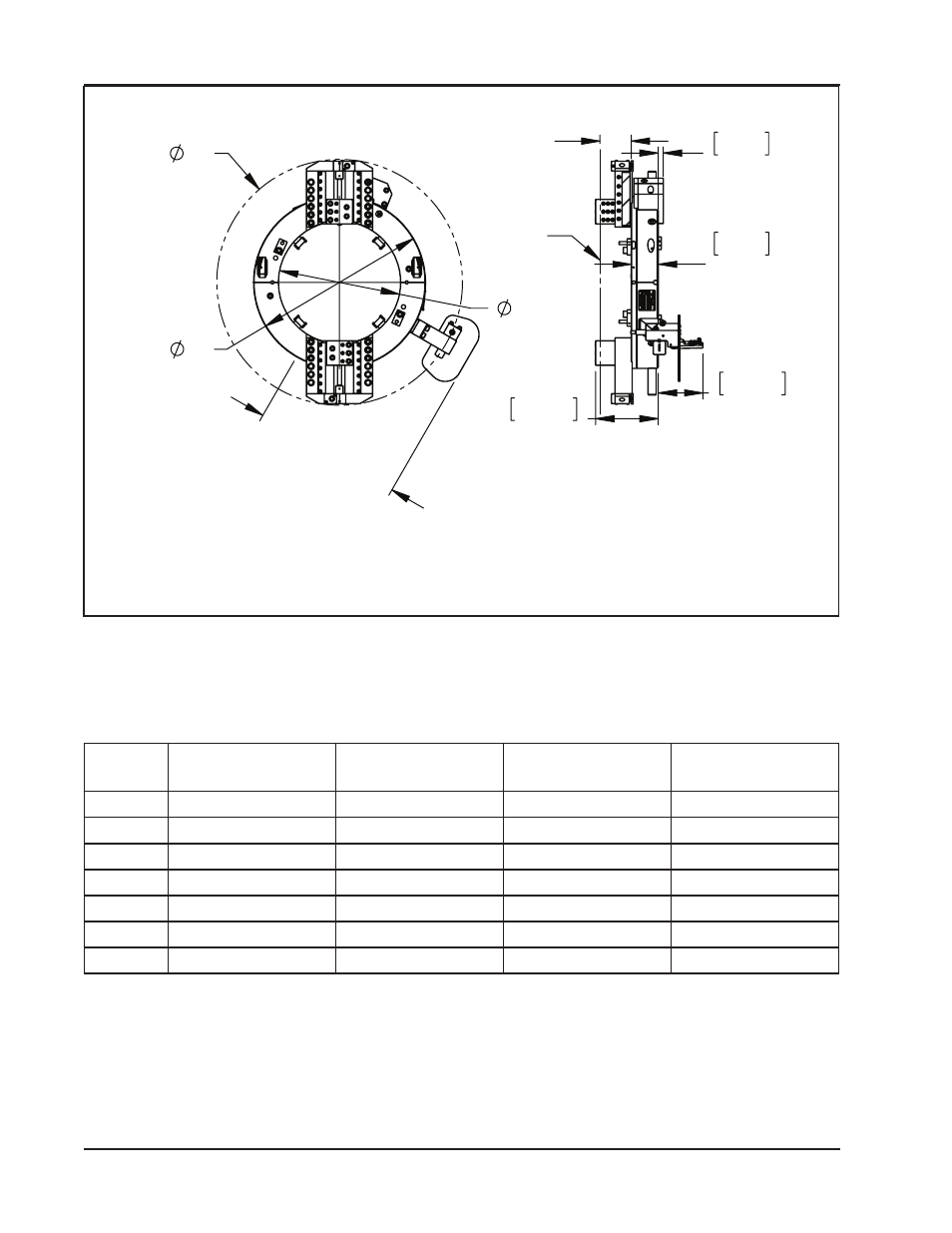

Figure: 1.
Envelope, Model 600RBL, CLAMSHELL
