6.10.1
PROCEDURE TO CORRECT A SHALLOW CUT.
1. If the cut made by Tool Bits B and C is too shallow for a blend with Tool Bits D
and E do the following:
2. Stop cutting.
3. Disconnect and lock out the power source.
4. Retract Tool Bits D and E without changing the position of Tool Bit A.
5. After adjusting Tool Bits E and D, tighten the Set Screws.
6. Reconnect and power up the tool.
7. Cut the pipe and check the performance of the tool bit.

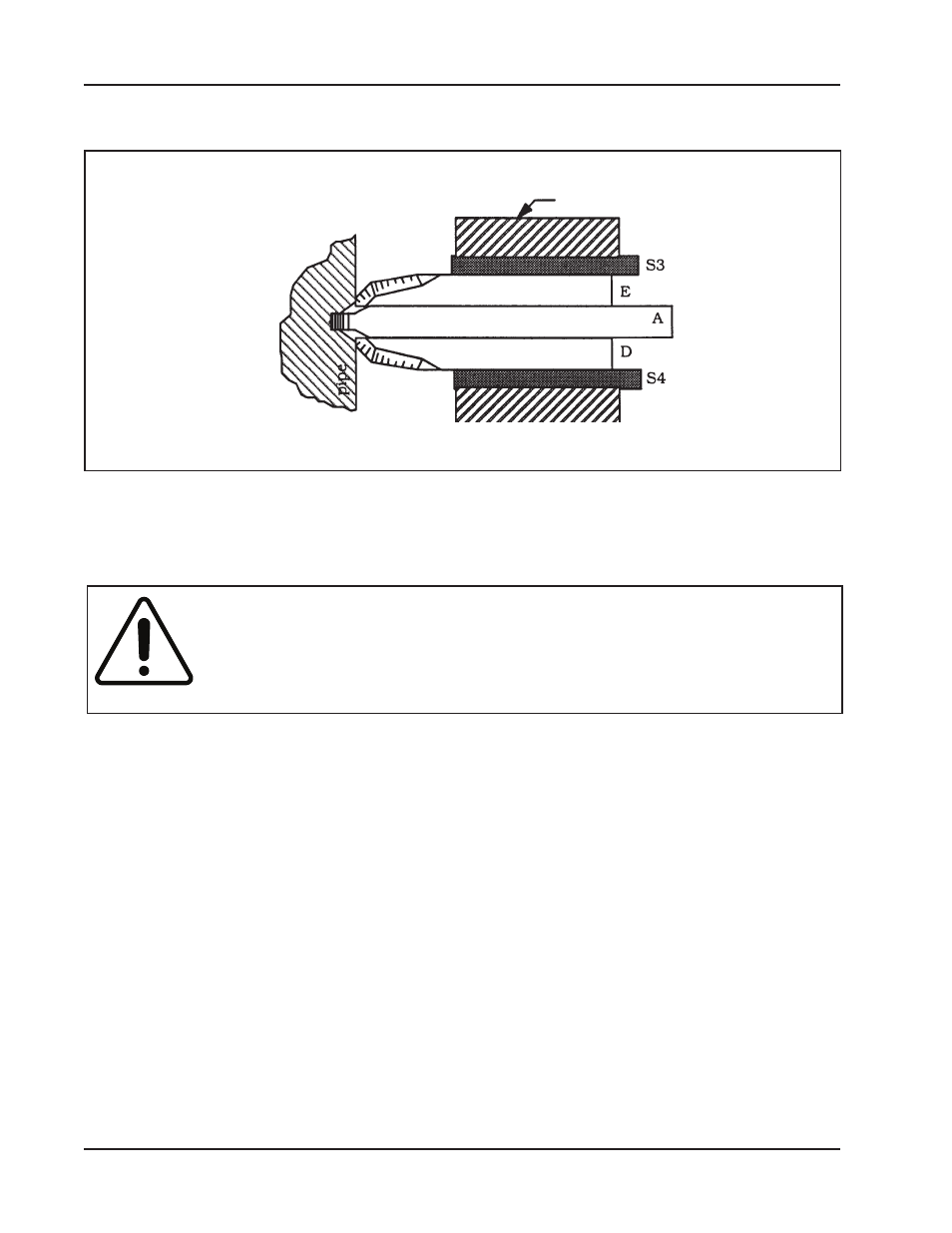

Figure: 22.
Cut is too Shallow
Too shallow of
a cut from Tool
Bits B and C.
Tool Block No. 1
WARNING
WARNING: Always disconnect and lock out power supplies
when you make adjustments. This prevents inadvertent powered
movements of the pipe lathe which may cause crush or cutting
injuries.
