Model 614RBL thru 642RBL Clamshells
92-0480 : Rev. 130916

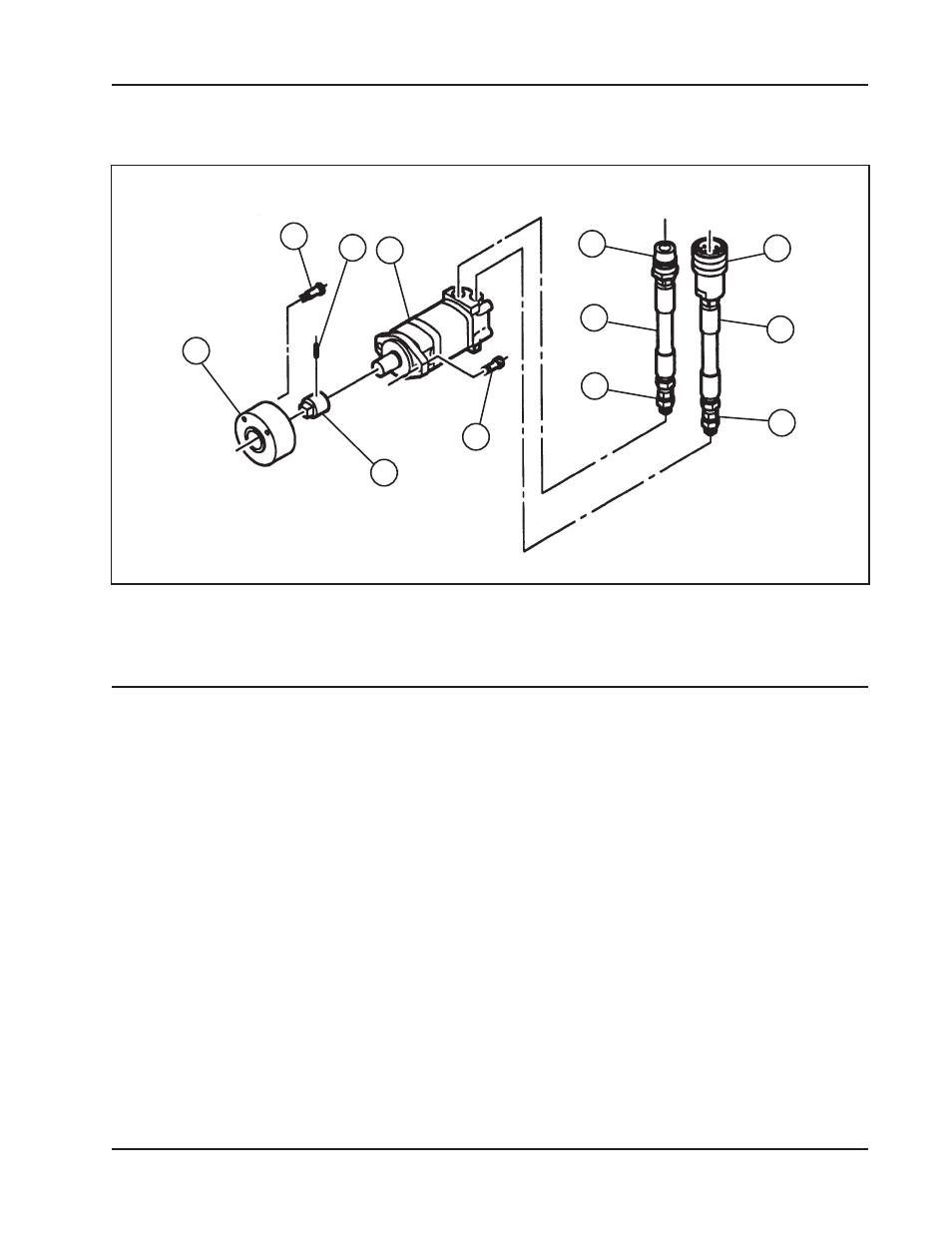

MOTOR ASSEMBLY, HYDRAULIC (P/N 56-0071)
1
10 2
3
4
5
7
6
8
9
6
9
Parts List, Hydraulic Motor Assembly (P/N 56-0071)
Item Part
No. No. Description Qty
1. 27-0460 ADAPTER, DRIVE 1
2. 32-0090 PIN, SHEAR 1
3. 33-0075 SCREW, CAP, 3/8-16 X 2" 2
4. 33-0108 SCREW, CAP, 1/2-13 X 1 3/4" 2
5. 47-0914 BRACKET, TORQUE RESTRAINT 1
6. 54-0002 ADAPTER 2
7. 54-0333 COUPLER, QD, HYD., DRIPLESS, FEMALE 1
8. 54-0334 COUPLER, QD, HYD., DRIPLESS, MALE 1
9. 55-0156 HOSE ASSY, HYDRAULIC 2
10. 56-0073 MOTOR, HYDRAULIC 1
NOT SHOWN
54-0335 DUST PLUG, DRIPLESS 2
REFERENCE: HOSE MANIFOLD ASSEMBLIES TO CONNECT THE DUAL HYDRAULIC
MOTOR ASSY’S.
55-0169 HOSE ASSY, MANIFOLD, FEMALE 1
55-0170 HOSE ASSY, MANIFOLD, MALE 1
