Tri Tool 614RBL Thru 636RBL Clamshells - Manual (Page 80)

80
TRI TOOL INC.
92-0480 : Rev. 130916

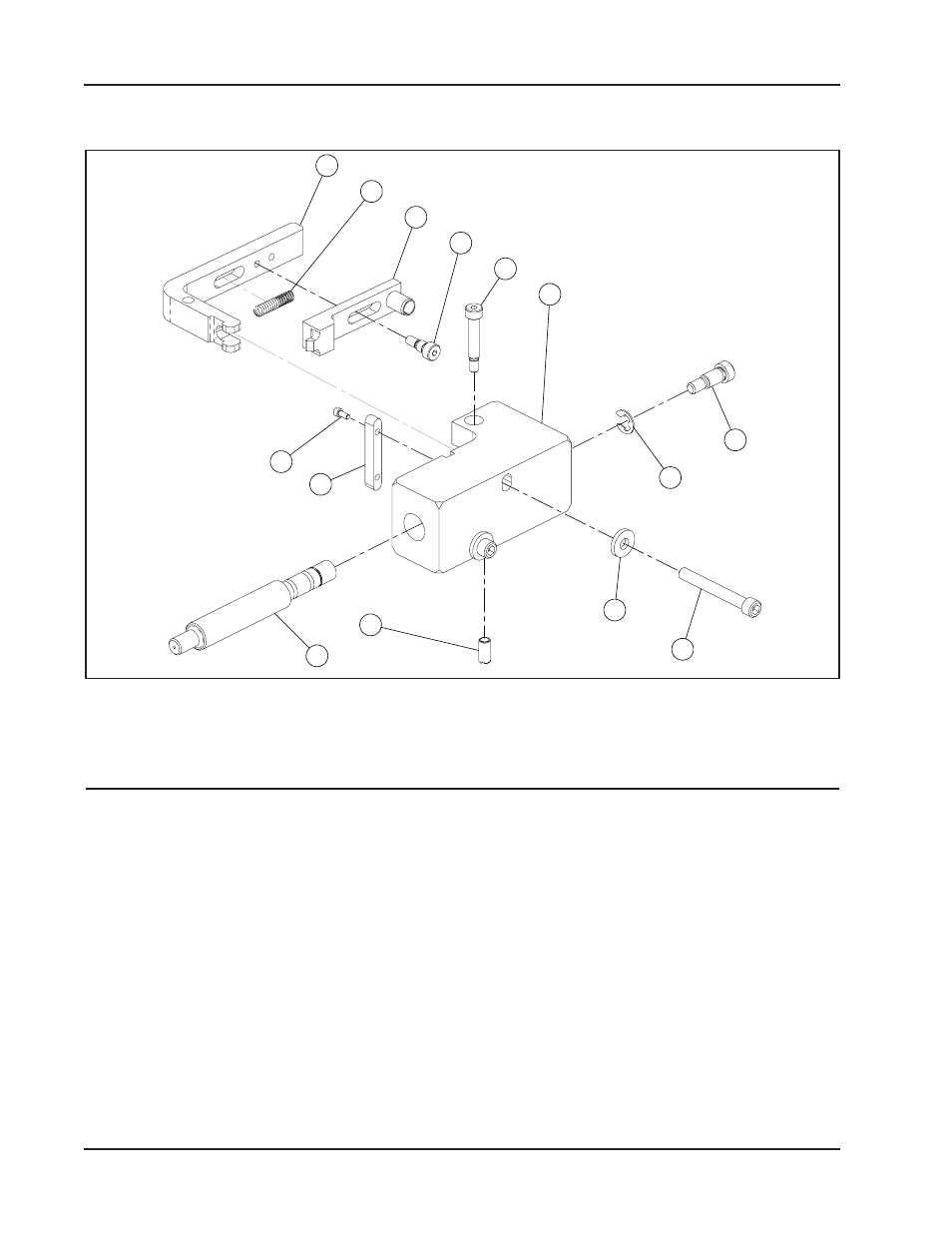

Parts List, Plate, Tripper, Sub-Assembly (P/N 47-2452)
Item Part
No. No. Description Qty
BLOCK, TRIPPER, SUB-ASSEMBLY (P/N 47-2452)
1 20-1525 SHAFT,TRIPPER 1
2 24-4001 PLATE ASSY,STOP,LEVER 1
3 30-0125 PLUNGER,BALL,1/4-20 X 17/32 1
4 30-5638 E-RING,RETAINING,EXTERNAL 1
5 31-0352 KEY,MODIFIED 1
6 33-0001 SCREW,CAP,#4-40 X 1/4" 2
7 33-0046 SCREW,CAP,1/4-20 X 2 1
8 33-1004 SCREW,SHLDR,1/4 X 1/4,LK 2
9 33-1303 SCREW,SHLDR,1/4 X 1 1
10 33-3803 SCREW,SHOULDER,5/16 X 1/2 1
11 34-0026 WASHER,FLAT,SAE,1/4X 5/8X 7/64 2
12 40-0459 SPRING,COMPRESSION,MUSIC WIRE 1
13 41-0247 LEVER HANDLE,TRIPPER 1
14 47-2393 BLOCK,TRIPPER 1
1
3
11
7
10
4
14
9
8
2
12
13
6
5
