6.3.2
SEPARATION OF THE CLAMSHELL
The locking screws are retained in the housing: you cannot remove them.
1. Unbolt the two Locking Screws on the Housing.
2. Unbolt the two Locking Screws on the Headstock.
3. Hold the Clamshell at 10 o'clock and 2 o'clock positions.
4. Pull the Clamshell halves apart as evenly and as straight as you can.
5. If the Clamshell does not easily separate at the split line do the following:
• Check that the Headstock is aligned with the split line.
• Check that the split line assembly bolts are loose.
HOUSING
HEAD STOCK
LOCKING
SCREWS
LOCKING
SCREWS

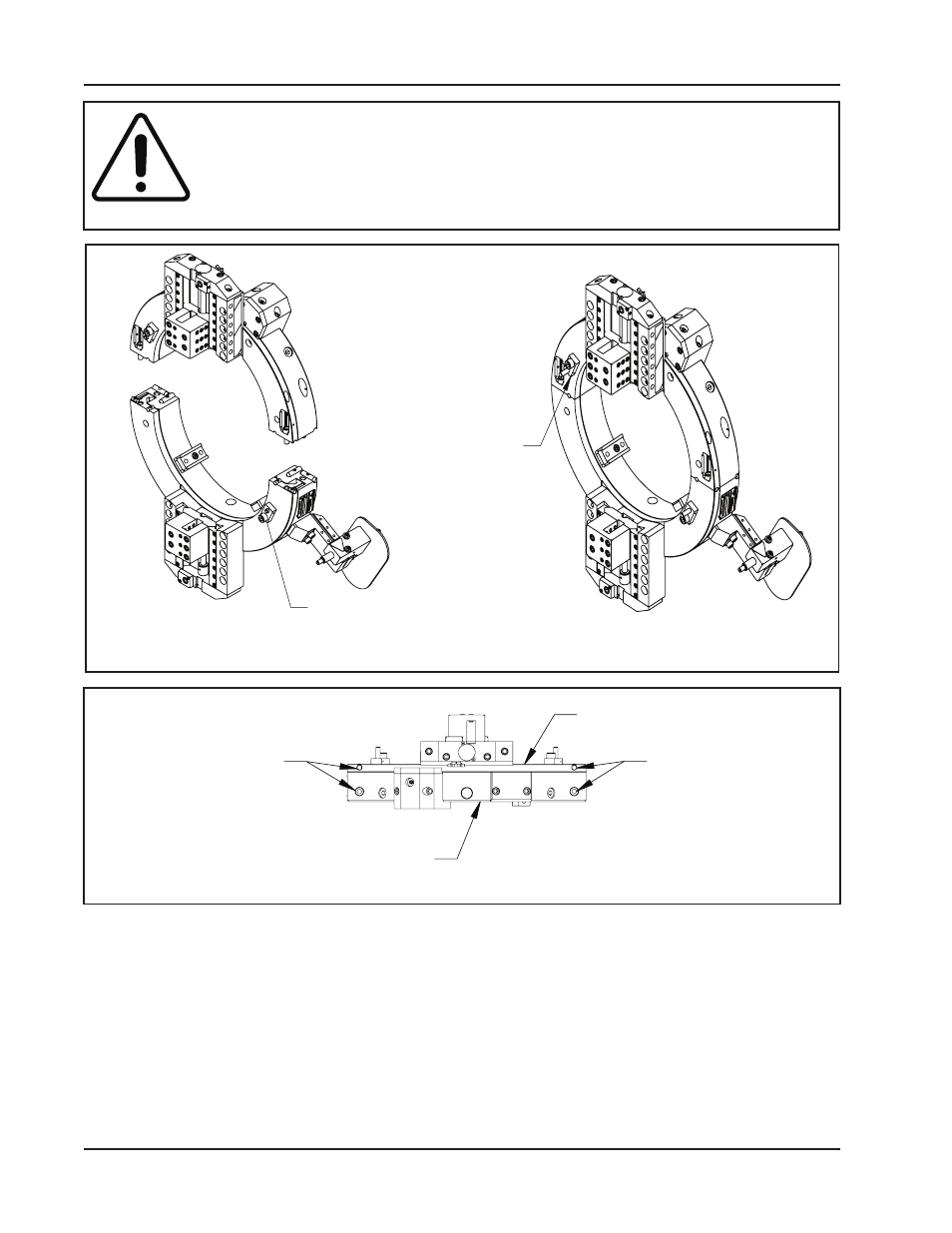

Figure: 12.
Location of the Locking Screws
CAUTION
CAUTION: The Headstock must not rotate out of the housing while
the Clamshell is in half. If it rotates out of the housing it could fall on
the user and cause personal injury or damage the equipment or both.
LOCKED POSITION
Figure: 11.
Red Head Locks in Locked and Unlocked Positions
UNLOCKED
POSITION
