When you bend cables, bind cables as shown in
. To avoid cable core break due to
excessive stress, do not tie up the cables in the bending area.

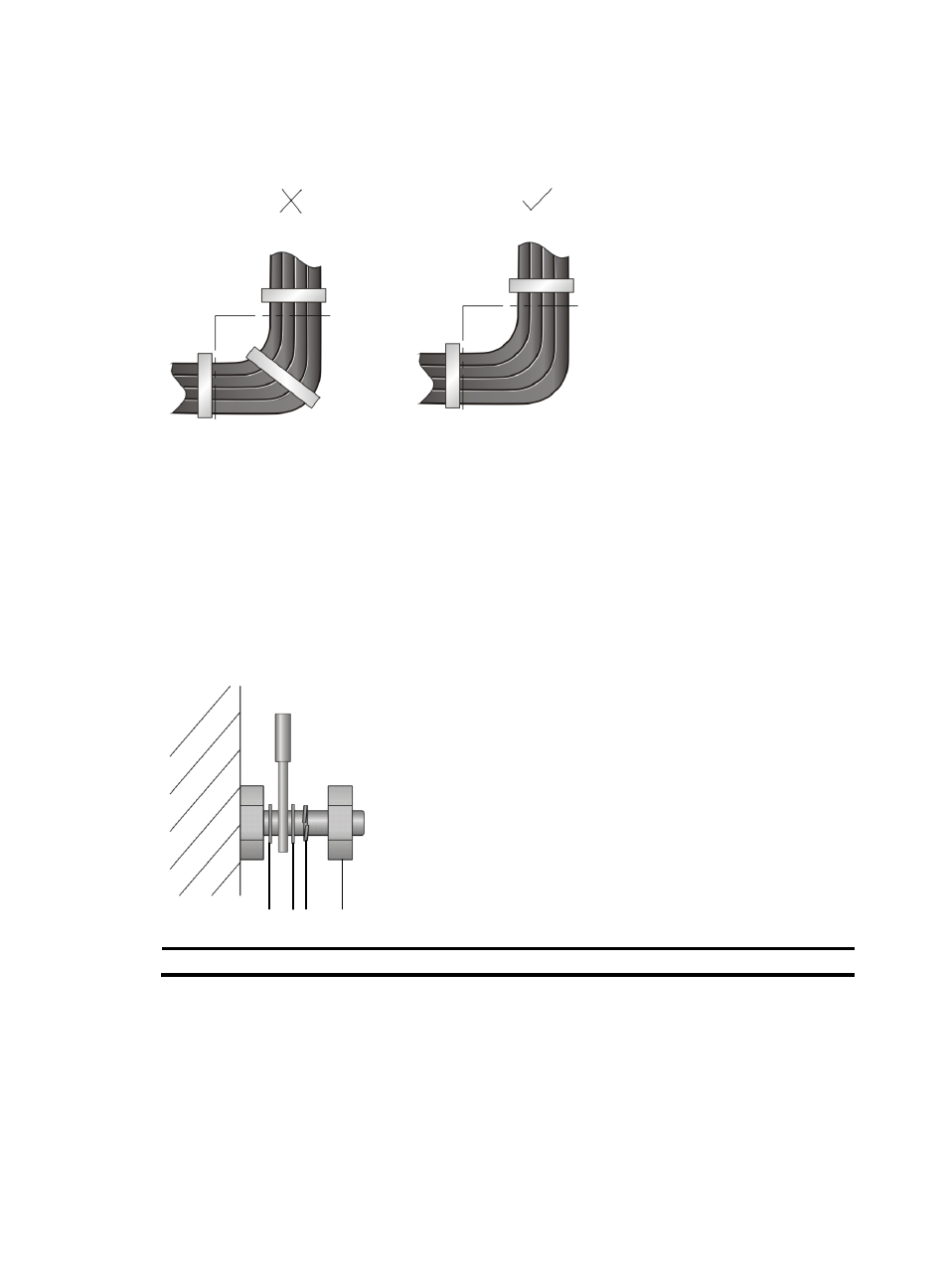

Figure 82 Binding the cables
•
Route, bind, and attach excess cables for easy, safe maintenance activities and proper operations.
•
Do not tie the power cables to the slide rails.
•
When you connect a cable to an articulated part, for example, when you connect a grounding
cable to a cabinet door, leave enough slack in cables and make sure they are not stressed from any
movement of the part.
•
Cables must be protected at points where they might rub or come in contact with sharp edges or
heated areas. Use high temperature cables near heat sources.
•
Securely fasten cables and take adequate measures to prevent loose connections.
Figure 83 Securely fasten cables
(1) Flat washer
(2) Spring washer
(3) Nut
•
Fasten heavy or rigid power cables at the connectors to relief stress.
•
Do not use tapping screws to fasten the connecting terminals.
•
Bind together cables that are the same type and routed in the same direction.
lists the cable bundling specifications.
(1) (1)(2)
(3)
(1) (1)(2)
(3)
