92
Table 46 Cable bundling specifications
Cable bundle diameter (mm)
Space between bundles (mm)
10
80 to 150
10 to 30
150 to 200
30 200
to
300
•
Do not tie cables or bundles in a knot.
•
The metal parts of the crimped cold-pressed terminal blocks (such as circuit breaker) cannot
protrude beyond the blocks.
Cable routing example
Cables on an SR6602-X router can be routed as shown in
.

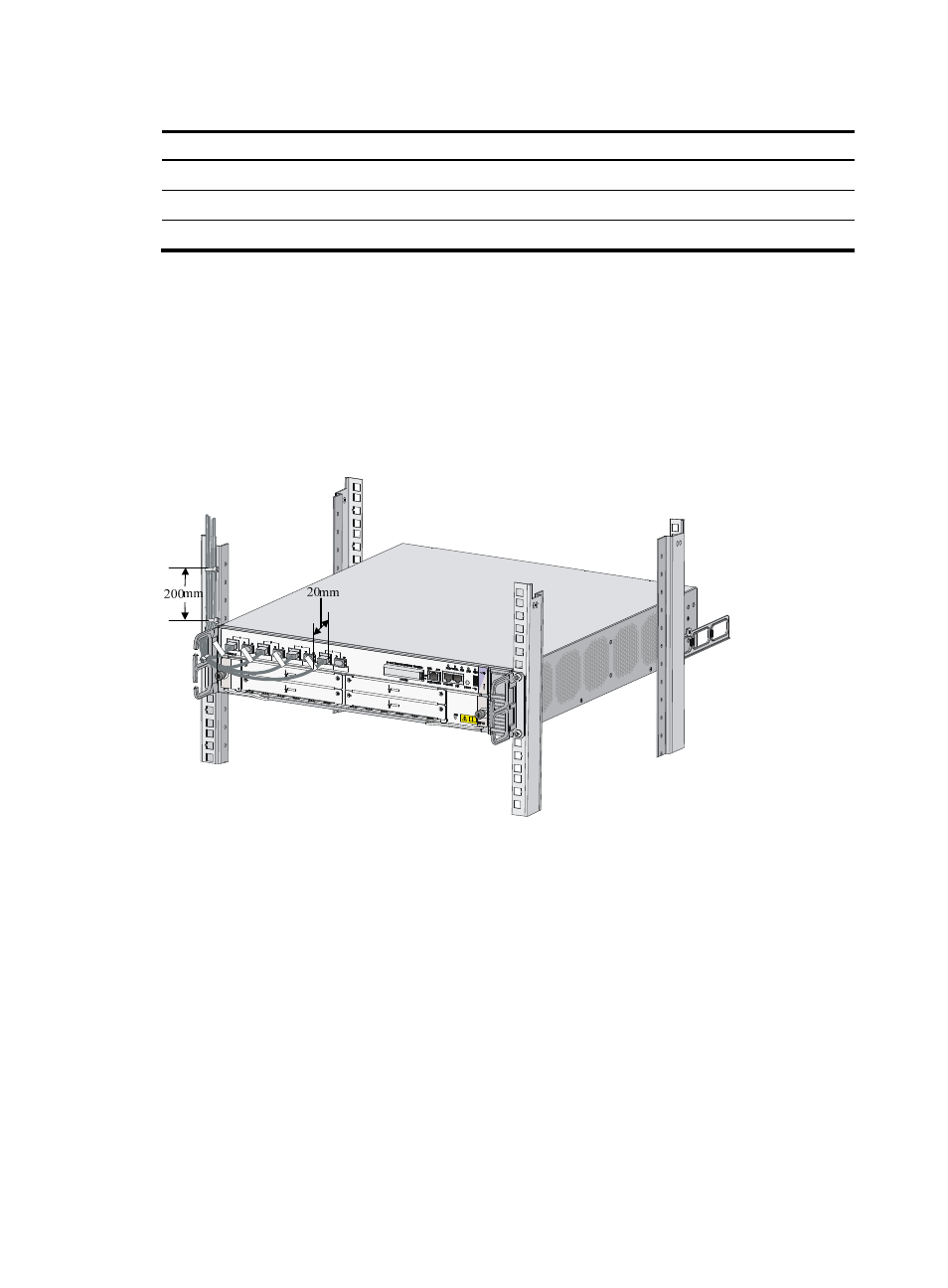

Figure 84 Routing cables
A0
1-
03
-0
1
A0
1-
03
-0
2
A0
1-
03
-0
3
A0
1-
03
-0
4
